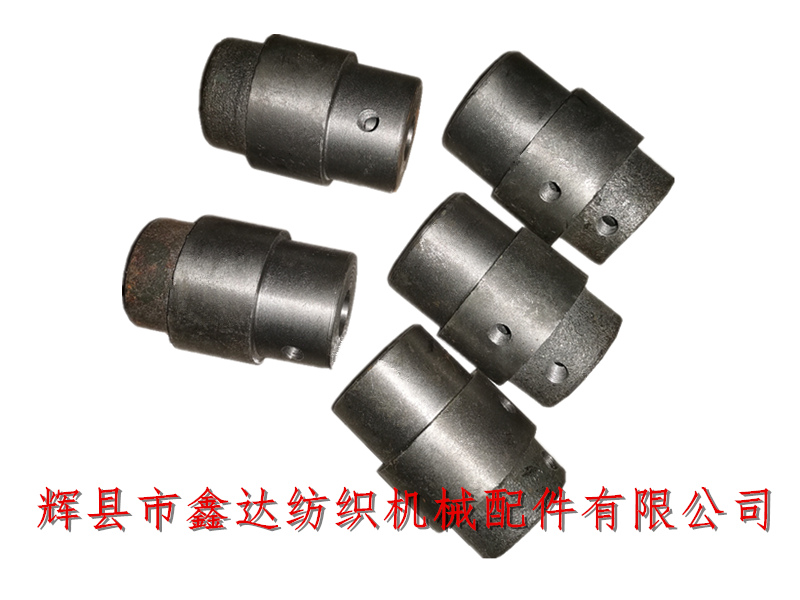

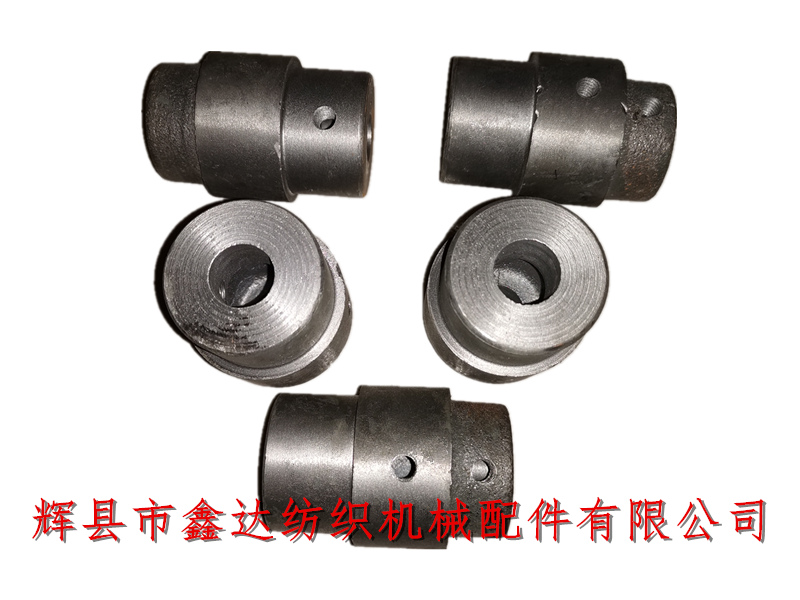

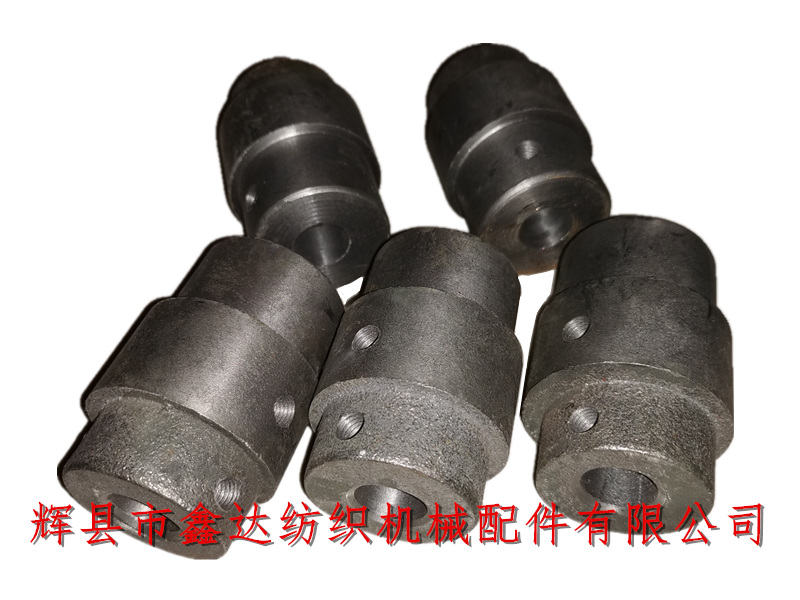

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides the heald lifting roller M2 of single beam loom, which is the heald lifting device component of 1511 single beam loom (44 inch and 56 inch). The outer side of the heald lifting roller M2 is 64mm away from the shaft head of the heald lifting shaft M12, and the distance from the upper heald lifting roller M2 used for 2 / 2 and 1 / 3 twill looms to the heald lifting shaft is 76mm and 127mm; The distance between the lower lifting roller M2 and M12 (heald shaft) for 2 / 2 twill is 127 mm.

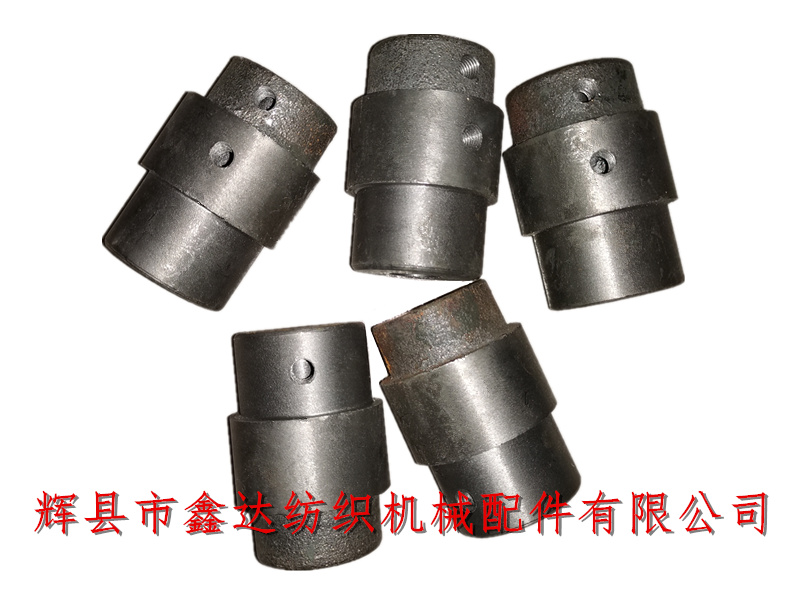

Lifting heald roller M2, also known as "lifting heald hoist", as shown in the lower part of the above figure: the diameter from left to right is 45mm, 52mm and 43mm, the smooth length is 27.5mm, 29mm and 18.5mm, the inner diameter of the shaft hole is 18mm, and the total length is 76mm.
The heald lifting roller M2 of single beam loom is made of pig iron HT15-33, regardless of left hand and right hand. The screw hole for fixing the heald lifting shaft is installed with M8 * 18mm small hexagon bolt, and the weight of a single M2 is 1.1kg.
The two processing surfaces of M2 heald lifting roller of textile machine processing accessories and pig iron processing parts of loom are installed with heald lifting belt (generation), and the two screw holes are opposite (180 degrees horizontally) to lift or lower the heald frame. The rough surface on the other side that is not processed is separately installed with set bolts.
If you need to purchase textile heald lifting roller, loom roller and single beam loom heald lifting accessories, please contact our company. If you need to obtain detailed parameters and dimensions of heald lifting hoist m2, please consult Mr. Yang of our company!
