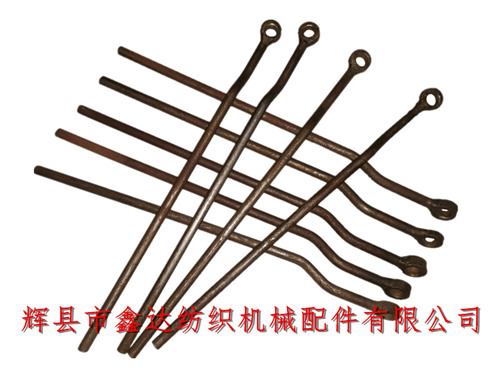

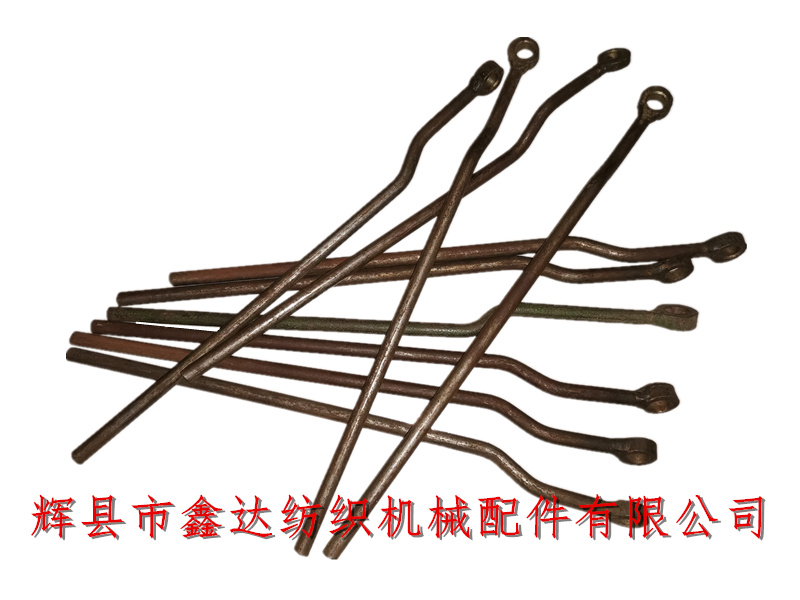

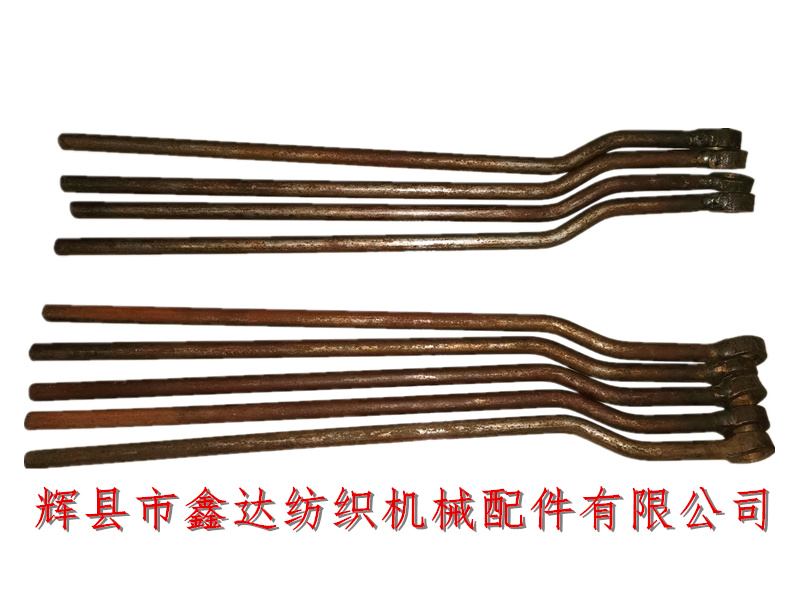

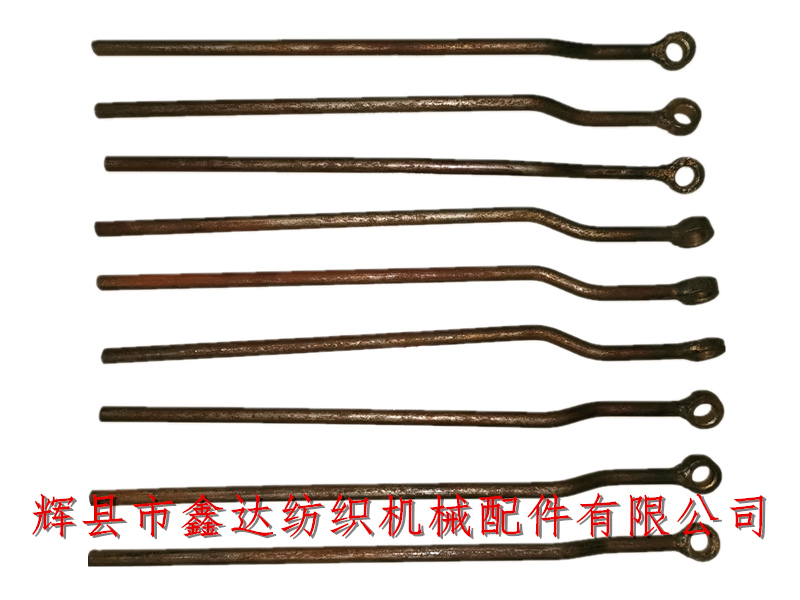

Huixian Xinda Textile Machinery Fittings Co., Ltd. provides Broken Warp Stop Connecting Rod O00-4, small loom warp break stop fitting foot cap connecting rod O00-4. Its material is A3, which is composed of O31 connecting rod body and O107 retaining ring. It belongs to 1511 small loom warp break stop fitting. The rod body diameter of loom connecting rod is 7.8mm, the total length is 30.2cm, the outer diameter of retaining ring is 18mm, the inner hole is 10mm and the thickness is 9mm. The O26 core is connected in the retaining ring of the loom foot cap connecting rod, and the O17 foot cap is fixed on the connecting rod.
Textile warp break stop accessories - foot cap connecting rod O00-4 is suitable for 1511 44 inch or 56 (single beam) small looms. Each loom uses one, and the weight of a single accessory is about 0.08 kg. There are two kinds of faults in the warp breaking self-stop device of loom: one is continuous warp self-stop; The other is the non-stop fault of warp breaking, which often has long broken defects on the cloth surface. Reasons for continuous and unexplained stop: the warp tension is too small or individual warp is loose, and the stop piece falls, resulting in shutdown.
The warp break stop device of small looms generally adopts mechanical design. There are 20 foot cap connecting rods O00-4 in each string, which is simple to install and convenient to maintain. The material of foot cap connecting rod A3 refers to cold drawn material. The warp break stop accessories are related to the structure of stop shaft and switch linkage structure.
If textile manufacturers need to purchase Broken Warp Stop Part O00-4 Connecting Rod, textile warp break and stop parts, shuttle loom foot cap, 1511 loom connecting rod and other products, please contact our company! We uphold the concept of honest management, pragmatic and enterprising, and serve you wholeheartedly!
