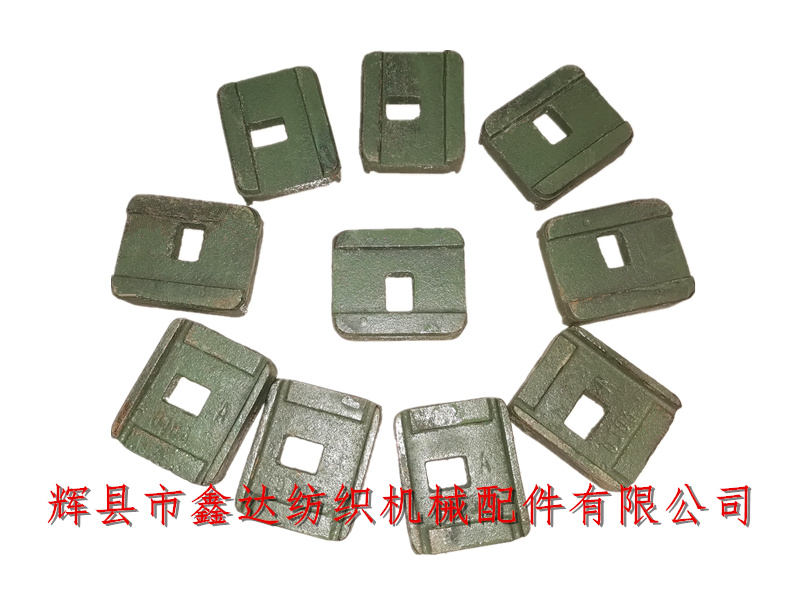

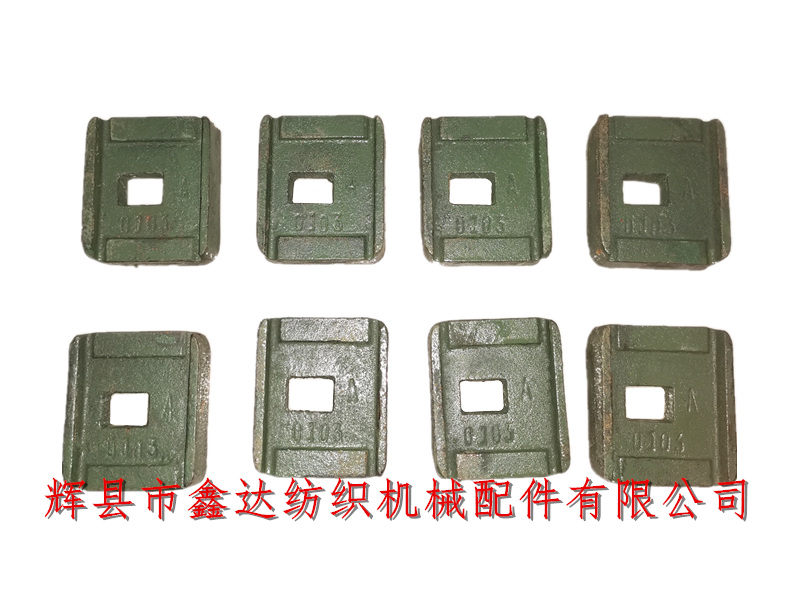

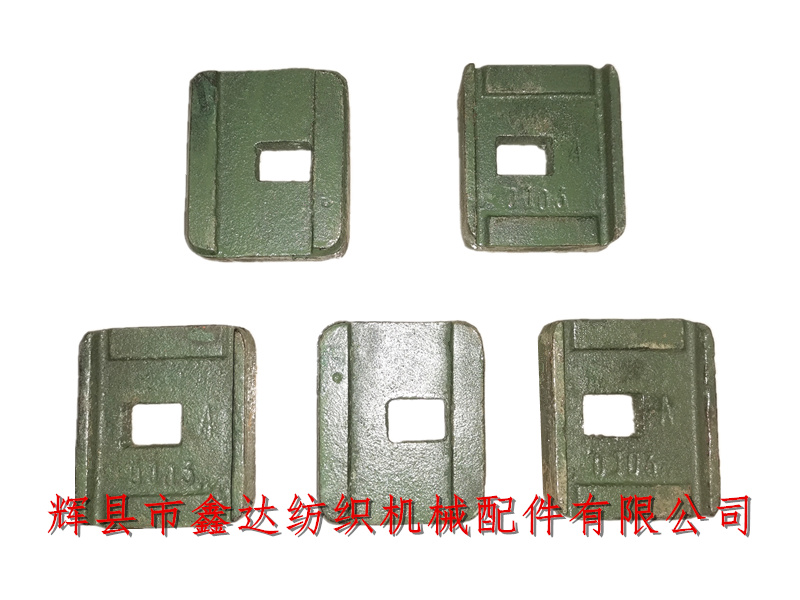

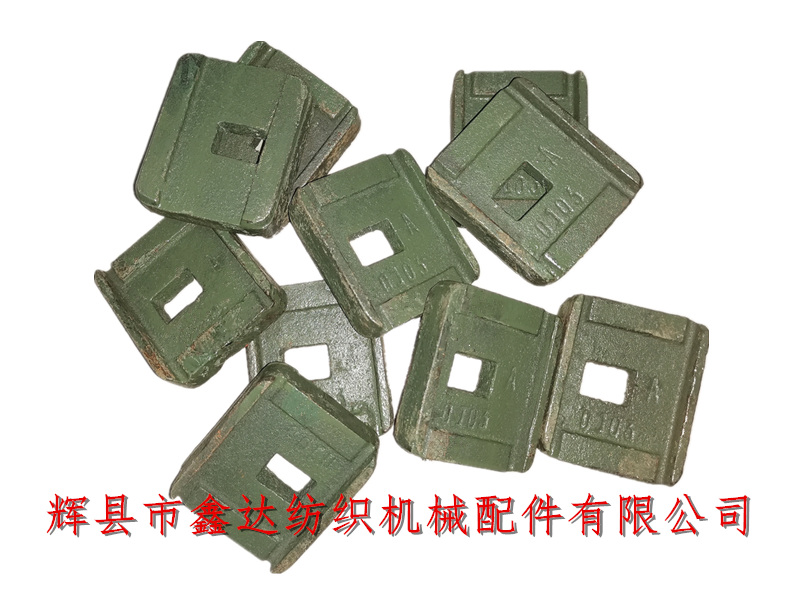

Xinda Textile accessories provides 1511 loom accessories, O103 warp stop frame hanging arm sizing block,Suspension Arm Sizing Block O103 material: pig iron HT15-33, which is mainly used to hang the loom warp stop frame. The overall dimensions of O103 sizing block: the total length is 75mm, the width is 64mm, the thickness on both sides is 21mm, the middle thickness is 1.3cm, and the middle screw hole is 21mm * 15mm. 12x60mm carriage screws are used to install on the wall panels P1 and P2 of 1511 loom.

The middle hole of the hanging arm sizing block of the loom O103 warp stop frame is eccentric design and can be fixed in the groove of the wall panel. Each loom uses two pieces Textile Suspension Arm Sizing Block O103 , one on the left and one on the right at the rear of the machine, which belongs to the warp stop frame accessories of 1511 loom.

Textile iron castings and pig iron parts of shuttle looms are widely used in looms. The weight of a single O103 hanging arm pad iron is about 0.42 kg. The loom accessories are not divided into left hand and right hand. There are 20 hanging arm pads of 1511 loom accessories O103 warp stop frame when packaged.

O103 hanging arm sizing block is applicable to 1511 loom. It is installed on the inner side of O101 or O102 (suspension arm of warp stop frame). During installation, it needs to be determined by using the rear setting gauge. The distance between the front and rear of the machine and the front edge of wallboard P1 and P2 is 21cm, and the height distance between the front and rear of the machine and the upper edge of wallboard is determined according to the process design regulations of different fabrics.
