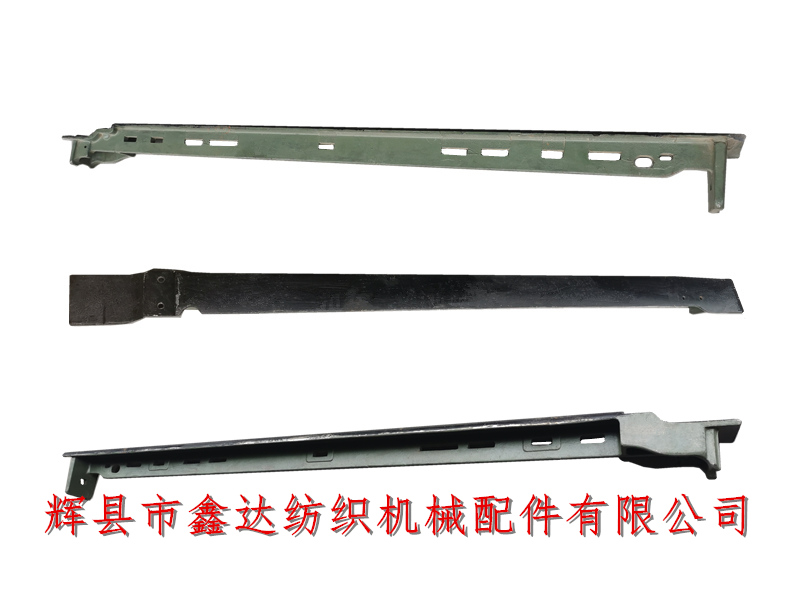

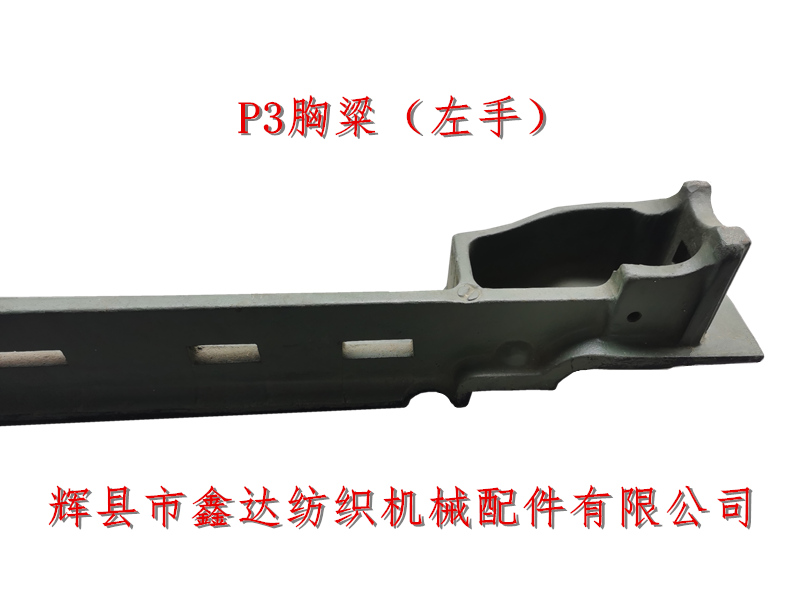

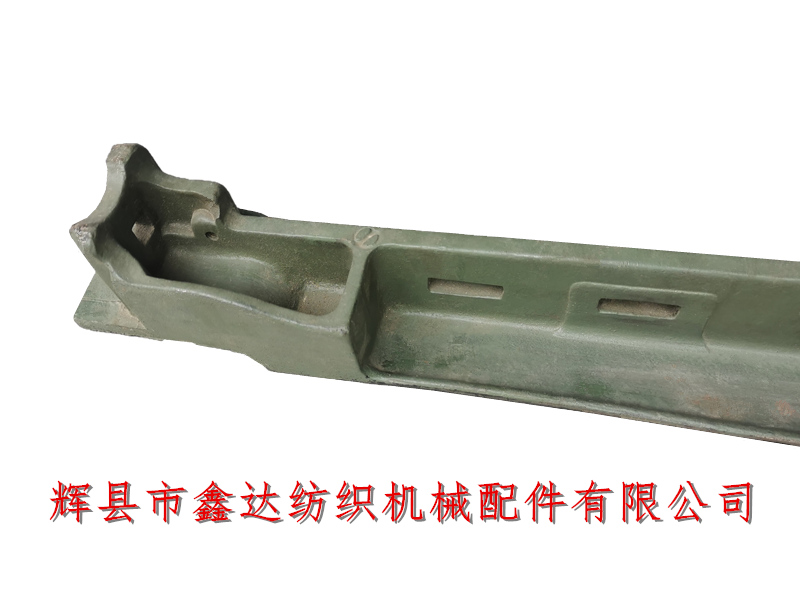

Our company provides 1511 loom chest beam P3 cast iron frame textile machinery accessories. P3 chest beam is made of pig iron HT15-33, which is suitable for 1511-44 inch looms and installed in the front of weaving machinery. It belongs to cast iron frame textile machinery accessories. The breast beam of the loom can be divided into left-hand cart (L) and right-hand cart (R) according to the left and right hands of the loom. Its total length is 1.422m, which is connected with the frame accessories on both sides of the loom - wallboards P1 and P2.
Installation requirements of loom chest beam P3: its outer side is flush with the front side of wallboard P1 and P2, the four corners are solid, the left and right are roughly horizontal, and the front and rear are horizontal when viewed from the plane of angular n19. The allowable difference between the front and rear levels of P3 is 0.1/82mm. The surfaces at both ends should be vertical, and the non perpendicularity should be less than 0.4mm.

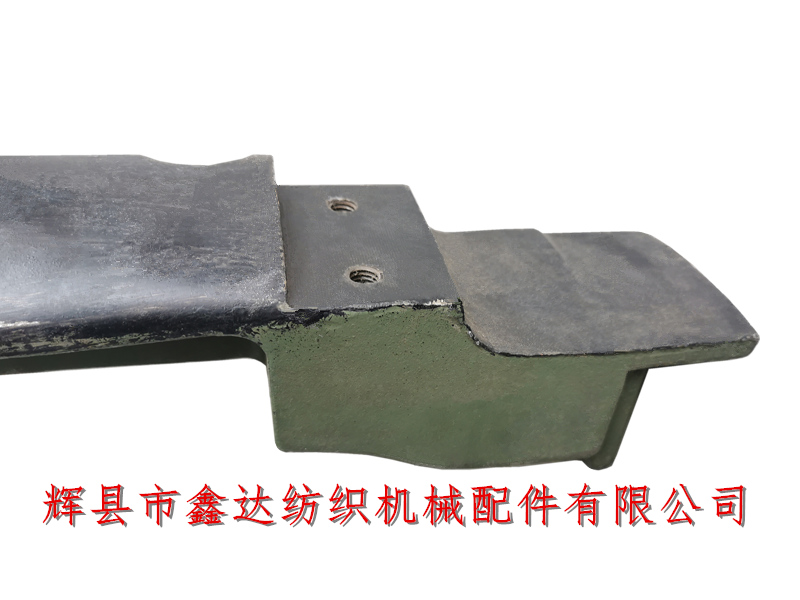

The upper surface of the chest beam P3 of the loom is chrome plated. After the fabric surface is displaced on it, it is controlled by the cloth winding device. Each loom uses one chest beam, and the weight of a single chest beam is about 22 kg. Loom frame accessories (wallboard, front crossbeam P4, rear crossbeam P5, upper crossbeam P6 and front and rear support P7) are made of sand casting.

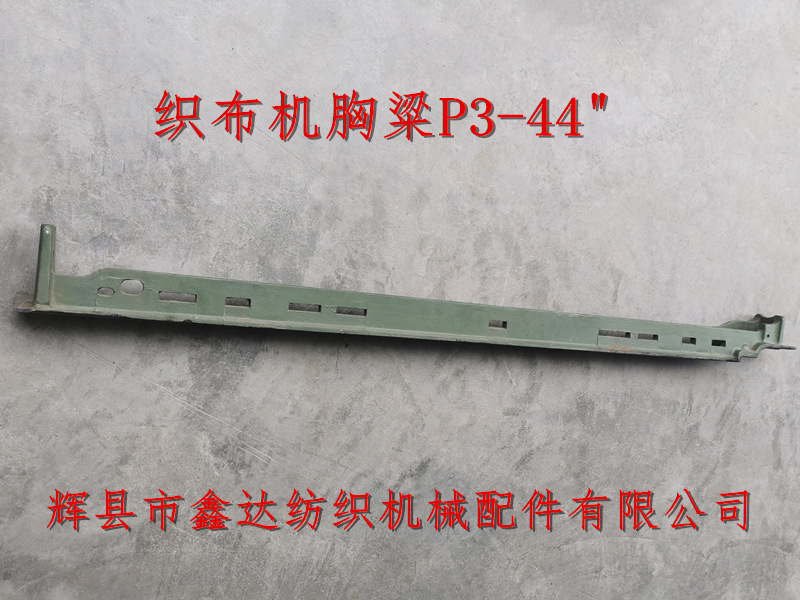

The length of 1511 breast beams of various specifications: 42 inches = (1372mm), 44 inches = (1422mm), 46 inches = (1473mm), 50 inches = (1575mm), 52 inches = (1625mm).
1511 part P textile frame components are the body part of the loom. Generally, they have left and right hands, sometimes composed of two adjacent part numbers (codes). According to different fabrics, they can be divided into ordinary plain weave device, plain weave double tread plate and twill multi tread plate (1/2, 2/2 and 3/1).
If you need to buy Textile machinery accessories - 1511 chest beam, 1515 loom chest beam, GA615 loom frame and other products, please contact Mr. Yang of Xinda Textile accessories company for consultation!
