Huixian Xinda Textile Machinery Parts Co., Ltd. provides K25 Reed Fly Back Center Wing For Stop Rod, weaving machine reed clamp shaft middle wing support foot with keyway. This support foot is not divided into left hand and right hand, and is mainly suitable for 1511 single beam weaving machine (some 1515 models can also be borrowed). Each machine uses one. The Shuttle Loom Parts K25 middle wing support foot is fixed at the middle position of the weaving machine's reed clamp shaft, and the two screw holes on the upper part are connected to K206 shim and Q11 reed clamp wood.
The material of the wing support foot in the 1511-K25 reed clamp shaft is gray pig iron (HT15-32), with a shaft hole diameter of 24mm. The keyway is fixed with M6 key pins, and the support head bolts are also M6.

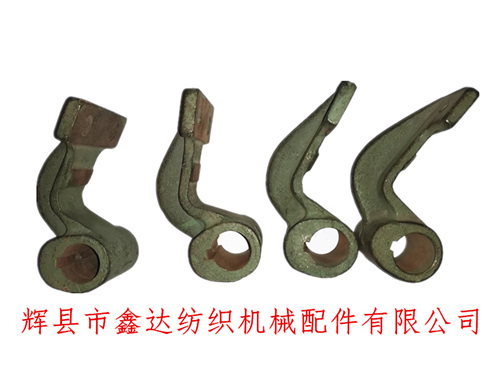

The above picture is a side view of the 1511 loom support foot K25. The back of the support foot has reinforcing ribs to support the quick return of the steel reed to its original position. The difference between it and K24 is the lack of a tail and the addition of a keyway (see figure below).
The center position of the 24mm diameter reed clamp shaft hole is 92mm away from the upper two fixed holes in a straight line. If you need to purchase K25 Reed Fly Back Center Wing For Stop Rod or learn more about it, please contact Mr. Yang from our company for consultation. We sincerely welcome your visit.
