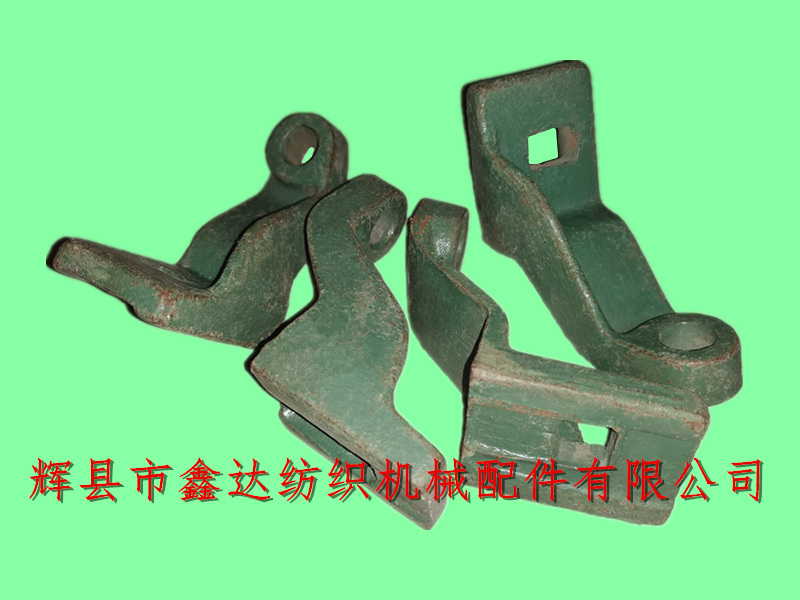

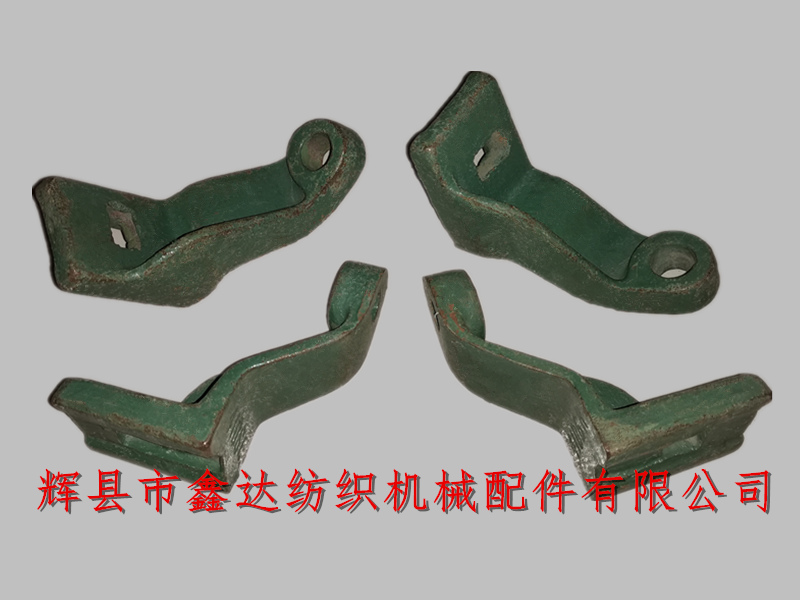

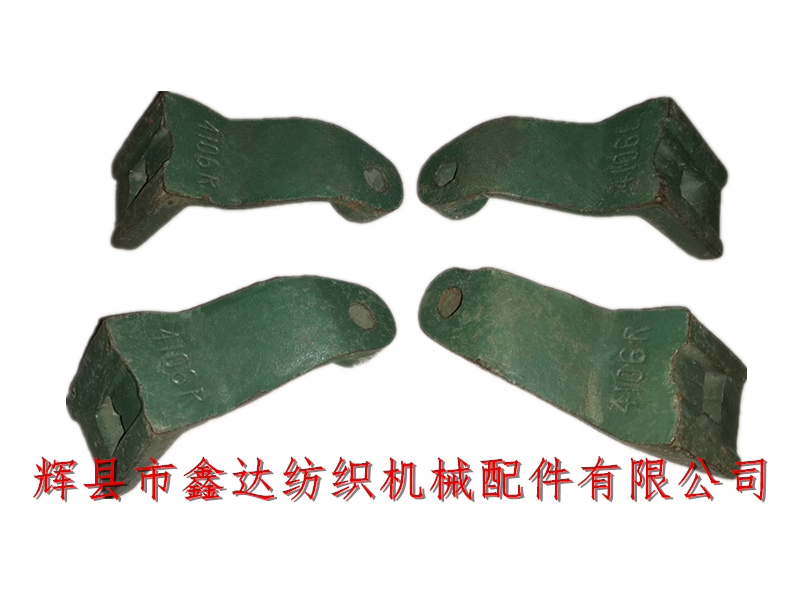

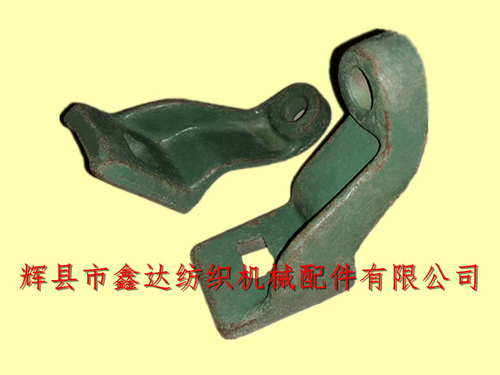

The height of 4106 loom steel belt screw seat accessories is 10cm, the base length is 6.2cm, and the width is 48.5mm. The loom screw seat is divided into left hand and right hand. The material is ht15-32 gray iron material, which is fixed on the loom wall panel 4302 or P2. It can be used for fixing different types of loom steel belt (1511, 1515, GA615, etc.).
M12 carriage wire (half round head square neck bolt) is used as the bottom bolt of the steel belt bolt seat, and 4106 supporting feet are used for each loom of the wide loom. The diameter of the round hole fixed by the screw of the loom is about 13mm.

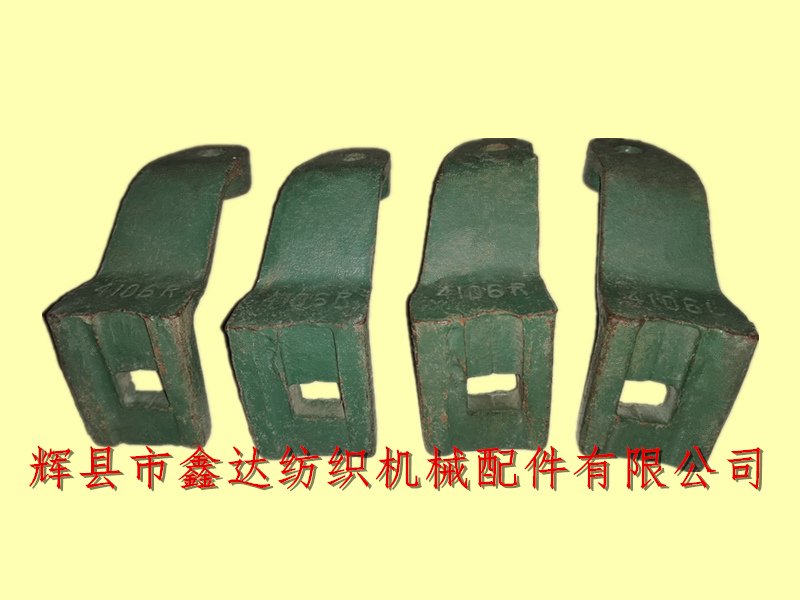

As shown in the back drawing of the textile accessories - steel belt bolt seat, the thickness of the base is 1.4cm, the loom diagonal support and the brake rod support foot 4105 are fixed on the loom wall panel, the starting arm support foot 4115 and the crankshaft support foot combination 4100-3 are fixed on the F40 bending support.
Most of the 1515 textile machine accessories are increased in length on the basis of the 1511 type. The loom steel belt bracket and the loom steel belt screw are universal types, which can be borrowed from each other.
The packaging of the steel belt screw seat of the 1515 loom is woven bag, each string is 10 pieces, 50 pieces / bag, the weight of a single accessory is about 0.5kg, and the starting order is more than 10 pieces.
