Huixian Xinda Textile machinery accessories provides 1515 loom accessories, external let off device SJ-60 reciprocating rod. Reciprocating Rod, Let Off Device, 1515 Let Off, The shape parameters of SJ60 reciprocating rod of domestic loom external let off accessories are: the total length is 39 cm, the diameter of 1515 reciprocating rod main rod is 12 mm, the length of 7-head is 48 mm, the internal diameter of pin hole is 3.5 mm, the length of front screw is 7.7 cm, the thread is M12, and the number of 1515 looms is 1 pcs.

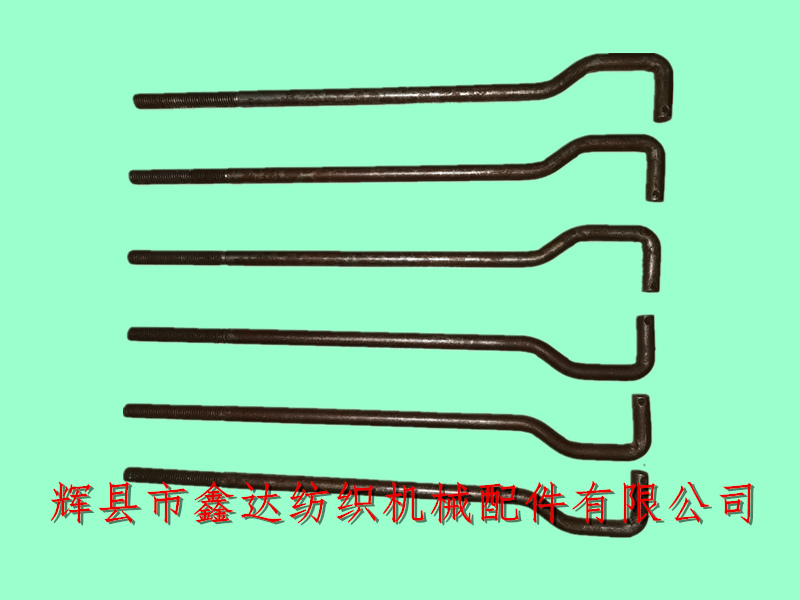

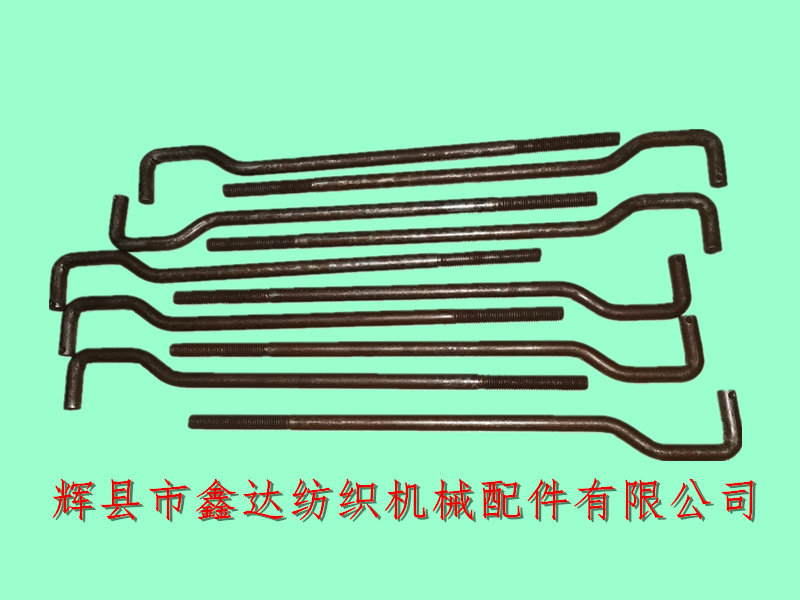

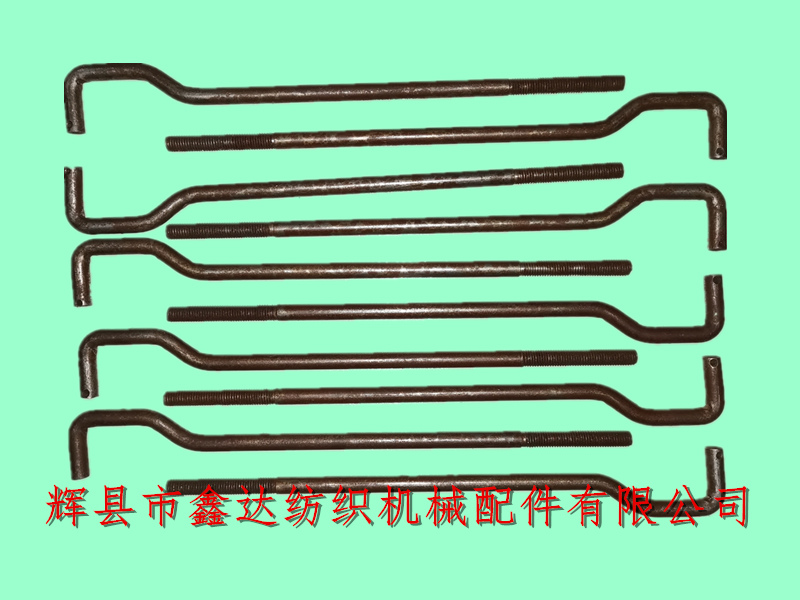

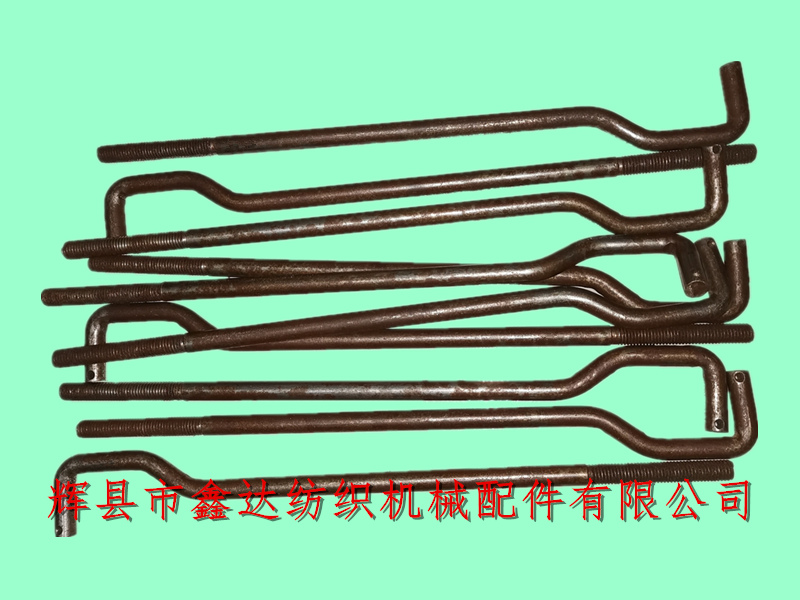

The above figure is a view of the real object. Due to the distance problem during shooting, the reciprocating rod looks thin. SJ-29 (reciprocating rod joint) is installed at the tail of SJ-60 reciprocating rod, SJ62 is sent through and fixed on the reciprocating rod, and SJ64 reciprocating rod mandrel, SJ65 reciprocating rod spring, SJ-66 reciprocating rod spring sleeve and SJ68 spring sleeve are installed on the reciprocating rod.
The single weight of SJ-60 reciprocating rod, a loom accessory, is about 0.3KG. The material used is cold drawn A3. The processing process is wire rubbing - tooling bending - Drilling (PIN). SJ-P-III let off device is common on shuttle looms and GA74 series rapier machines. Their function is to control the warp conveying speed in the weaving process, which is not limited by the door width of the loom.
The packaging of SJ60 reciprocating rod of 1515 loom accessories is: 10 pieces per bundle, weighing 3kg, and the minimum order quantity is 10 pieces; The installation application is mainly reflected in the 1515 loom whose wallboard is 4301, so as to ensure the corresponding installation hole position. The side wallboard of P1 shuttle magazine of 1511 can also use the external let off device of this machine, but it is often transported by internal let off.
If you need to purchase domestic 1515 loom accessories, SJ-60 reciprocating rod and other parts of warp let off device, please contact Mr. Yang of our company for details. We adhere to the production and business philosophy of "honest operation, pursuit of specificity and achievement of professionalism" and serve you wholeheartedly!
