GA615 parts, K27 parts, weft insertion, shuttle change and warp protection parts of old-fashioned loom are widely used in GA615 old-fashioned loom equipment, ga611-2100-2 front convex edge plate outer supporting foot, k00-4 spring hanging foot combination and ga615-2100-2 shuttle iron combination, both of which belong to old-fashioned weaving machinery parts.

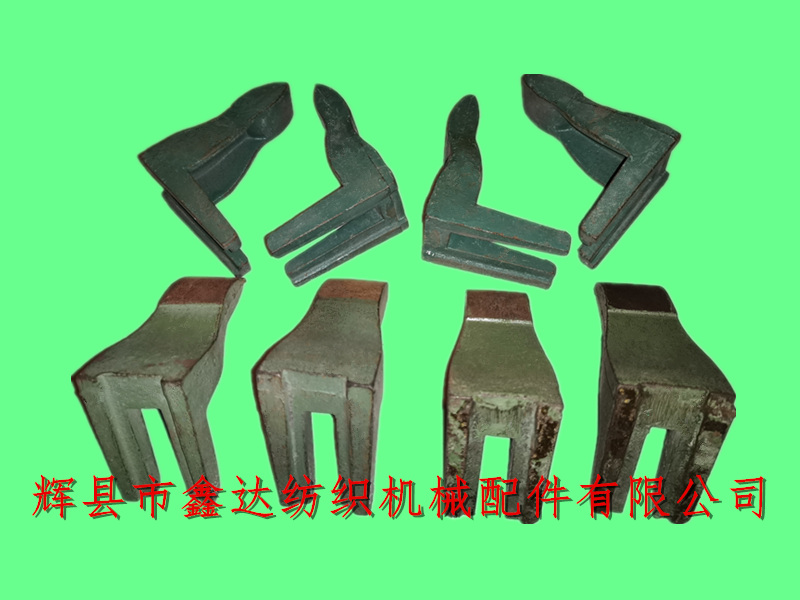

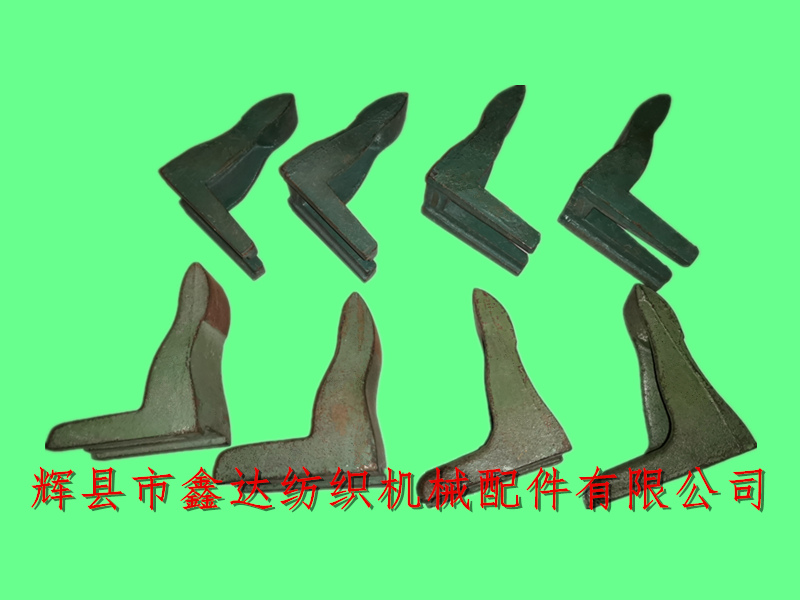

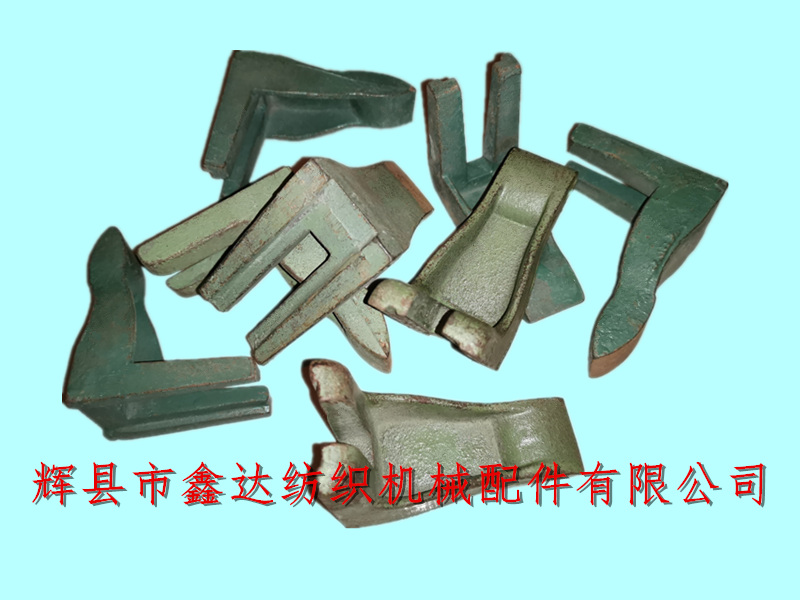

The material of K27 accessories of old-fashioned loom is gray iron. Each loom uses 4 pieces. The 1515 type is connected with k24a, the GA615 type is connected with 1515w-3113, the length of bump mouth is 80mm, the length of base is 64mm, and the plane wear out is required to be less than 1mm.
K27 used in textile machinery and equipment bears the impact of K23 stop pawl. The gap between K23 and screw core k33 is less than 0.4mm, the length abrasion is less than 3mm, and the contact depth with K27 is 13-16mm. The upper and lower gap according to the process requirements: the contact difference with K27 is less than 1mm, and the relative position is in the middle.
Our company provides the old-fashioned GA615 weaving machine nozzle accessories, Xinda GA615 accessories, weaving machine, old-fashioned weaving machine. Please contact our company for details of the price and parameters of accessories.
