Huixian Xinda Textile Machinery Parts Co., Ltd. provides GA615 weaving machine accessories - SJ-18 ratchet seat and SJ22 ratchet cover machine external delivery parts. Shuttle Loom Let-off Parts, The dimensions of SJ18 ratchet seat are: outer ring diameter of 120mm, inner cavity diameter of 76mm, inner diameter of the middle vertical shaft hole of 24mm, total height of 76mm; SJ-22 ratchet cover parameters: inner ring is embedded with a liner with an inner diameter of 24mm * outer diameter of 30mm, outer ring diameter of 120mm, inner cavity diameter of 76mm, total height of 70mm, and edge thickness of 6mm (see figure below).
This set of shells is made of HT15-33 gray pig iron and is not divided into left and right hands. They are wrapped with SJ-19 ratchet wheels (divided into left and right hands); The diameter of the circular hole on the ear handle of the ratchet seat SJ18 is 12mm, and the depth is 40mm. The bottom plane notch of the main body is equipped with SJ-21 claws (also known as spinors or teeth).

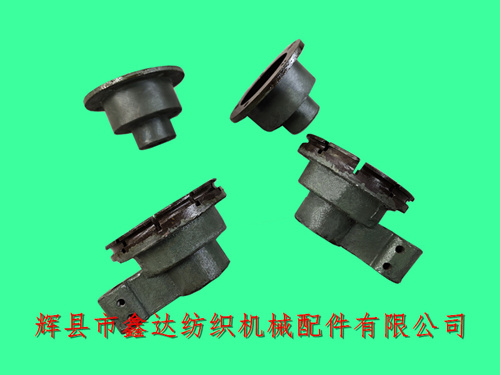

The above picture is a multi angle view of the ratchet cover and ratchet seat. The 12mm circular hole in the lower right corner is used to install the SJ-30 buffer screw and SJ-29 reciprocating rod joint, corresponding to the SJ-60 reciprocating rod.
Installation position on the outer side of the wall panel: SJ-22 ratchet cover on top, SJ-18 ratchet seat on bottom, and SJ-20 ratchet spring with a diameter of 5mm on the outer ring of the ratchet seat.
If you need to purchase products such as SJ18 ratchet seat, SJ-22 ratchet cover, external delivery parts, GA615 weaving machine accessories, or for more detailed parameters and dimensions of ratchet and components, please contact Mr. Yang from our company for consultation. Sincerely welcome everyone's visit!
