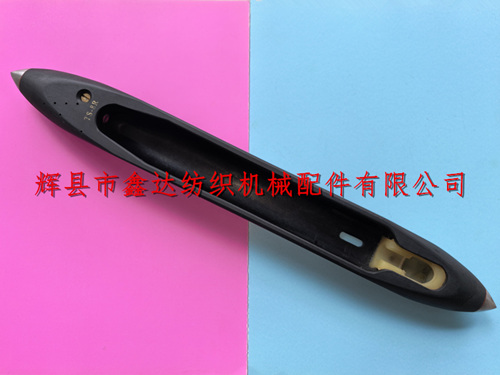

Huixian Xinda Textile Machinery Parts Co., Ltd. provides TS-8 nylon shuttle black coreless photoelectric shuttle weaving machine equipment. The TS-8 nylon shuttle used in the weaving machine has a total length of 393mm, an outer width of 43.2mm at the bottom of the shuttle, a total height of 34.4mm, an inner length of 262mm in the shuttle cavity, an effective net length of 219mm, and a total length of 230mm for the weft tube (winding tube) used.

The front part of the TS-8 shuttle is flexible with three steel wire rings, and the locking bolts are in a straight line. The nuts are injection molded inside the shuttle body, and the width of the shuttle cavity is 31mm. The diameter of the porcelain eye in the front part is 3.5mm, and the outer diameter is 9mm.

The nylon clamp installation (neck) of TS-8 photoelectric coreless shuttle has a diameter of 12.6mm for the weft tube, and the length and width of the weft hole on the bottom of the shuttle are 19.5mm and 5mm, respectively.

The side groove of the shuttle is the yarn groove for the weft yarn to be led out. This side is used closely to the shuttle box baffle, and the bottom of the nylon clamp has a pin for tightening the shuttle body.

The two sides of the shuttle body form a 90 ° angle with the bottom plane, which is a right angle. The design of the shuttle box is different from common domestic models such as 1511 and 1515.

The mass of a single shuttle is 378 grams, and the weight after installing 230 nylon weft tube(pirn) is 415 grams; If you need to purchase TS-8 nylon shuttle, black nylon shuttle, TS-8 shuttle, textile coreless shuttle, weaving machine photoelectric shuttle and other shuttle textile equipment accessories, you can contact Mr. Yang from our company for consultation.
