Huixian Xinda Textile Accessories Co., Ltd. provides textile electrical equipment of Sulzer shuttle loom EST14 circuit board,Sulzer Projectile Loom Parts EST14 Circuit Board, This Pu shuttle loom circuit board is a domestic main board. In production practice, after continuous circuit simplification and optimization, est14.1 can not only completely replace the circuit board produced by Sulzer, but also add automatic mode and man mode, and add man indicator light, which greatly increases the stability of the EST circuit board of the shuttle loom, The power supply input voltage of the main circuit is 24V.

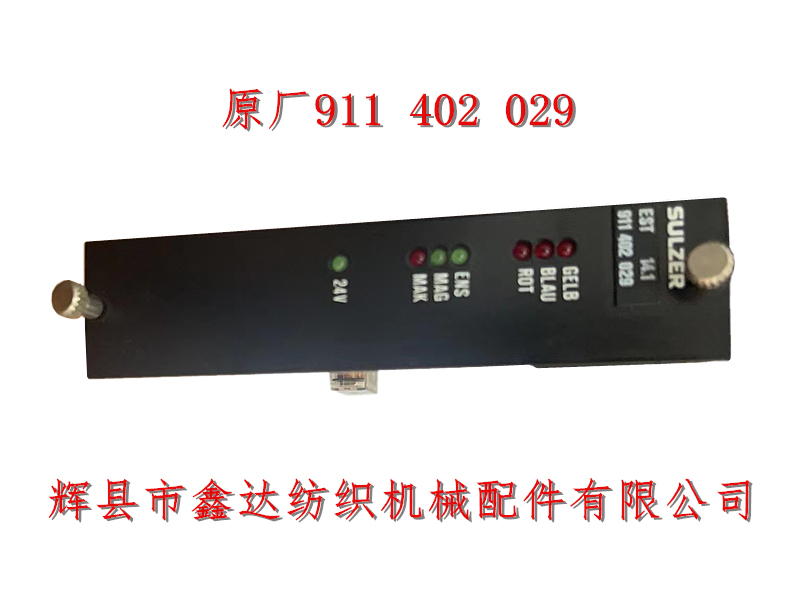

The above figure shows the est14.1 circuit board (911 402 029) of the original Sulzer. The light-emitting indicators on the right side are Gelb (red), Blau (red) and rot (red) from bottom to top; Ens (green), mag (green), mak (red); 24V indicator light (green).
The following figure shows the domestic EST circuit board. Please pay attention to the identification difference of the front panel of textile appliances on the EST14 circuit board of Sulzer shuttle loom:
The indicator lights are: Gelb, Blu, rot, 24V, ens, mag1, Mak, man and switch (man, auto mode).

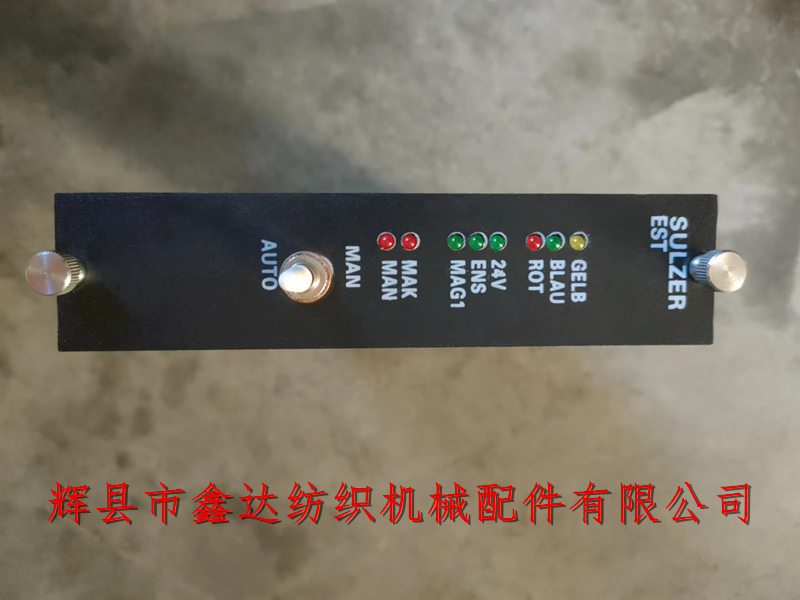

The above figure is the front plan view of the domestic EST circuit board. The outer package of Sulzer's domestic EST circuit board is a paper box lined with foam blocks. The minimum order quantity of this textile circuit board is 1 piece, and the delivery period is 3-7 days. The default delivery is express delivery (domestic), and the overseas transportation mode is selected according to the customer's requirements.
