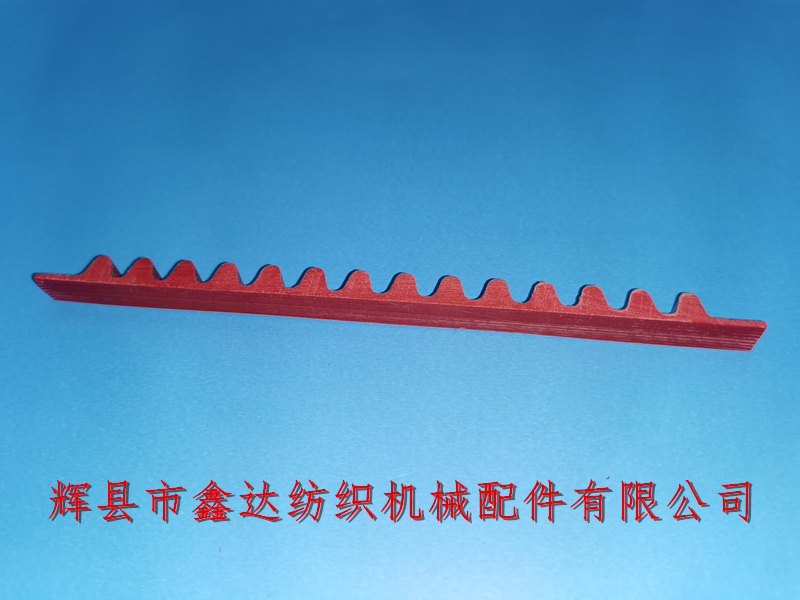

Huixian Xinda Textile Machinery Parts Co., Ltd. provides textile rack weaving machine shuttles with 14 teeth weaving belt shuttle accessories all year round, including shuttle weaving machine accessories.Textile Rack Japan Ribbon Loom Shuttle Part, The textile rack is made of red steel paper material and belongs to the category of weaving machine accessories. Due to the different sizes and shapes of weaving belt shuttles, it is generally divided into horizontal weaving belt shuttle teeth and curved weaving belt shuttle teeth; The flat shuttle weaving machine and arc weaving machine are mainly made of Japanese looms. The total length of the textile equipment accessory -14 teeth is 143mm, the overall width is 8.3mm, the overall height is 7mm, and the length of the 14 teeth arrangement is 123mm, with a margin of 10mm on both sides.

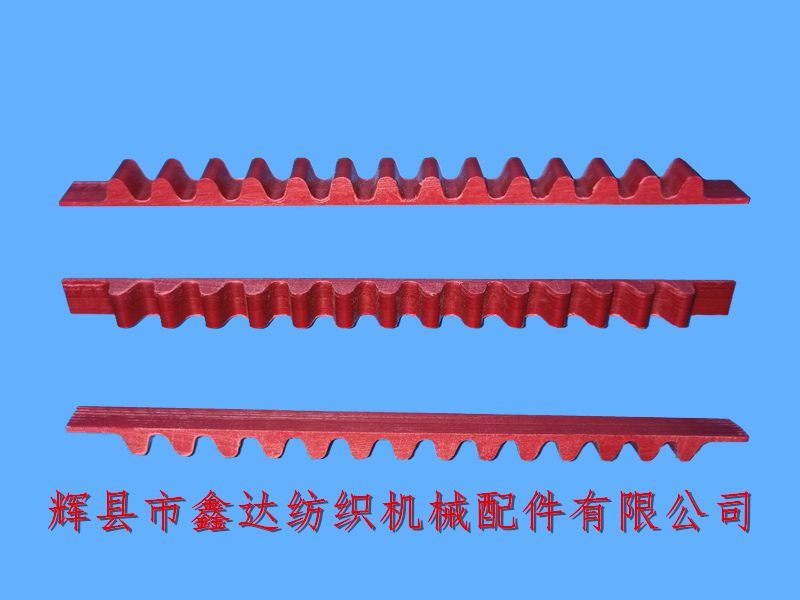

The above image shows the front, side, and back of the shuttle teeth in sequence. When installed on the loom shuttle, it is installed in a front shape, with an overall curvature that fully fits the shuttle body of the ribbon shuttle. The red steel paper shuttle teeth have characteristics such as low noise, strong impact resistance, and hard texture.

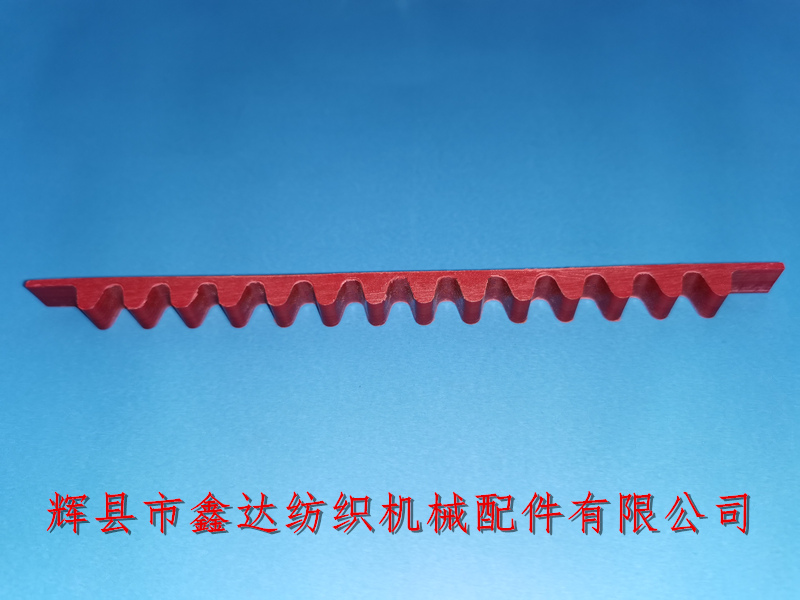

The center distance between two adjacent teeth on the teeth of the Japanese ribbon shuttle is generally 9mm-10mm. In the straight case of the tooth strip in Figure 14, the center distance between adjacent teeth is 9mm. The price of the red steel paper shuttle teeth is calculated based on the number of teeth, and the more teeth, the higher the price.
The processing range of the red steel paper shuttle teeth is below 32 centimeters, and the thickness of the tooth base from the back of the gear rack is 1.6mm; If various ribbon enterprises need to purchase or customize red steel paper shuttle teeth, racks, ribbon machine shuttles, ribbon shuttle components, red steel paper gears, etc., please contact Mr. Yang from Xinda Textile Accessories Company for negotiation. Welcome to cooperate!
