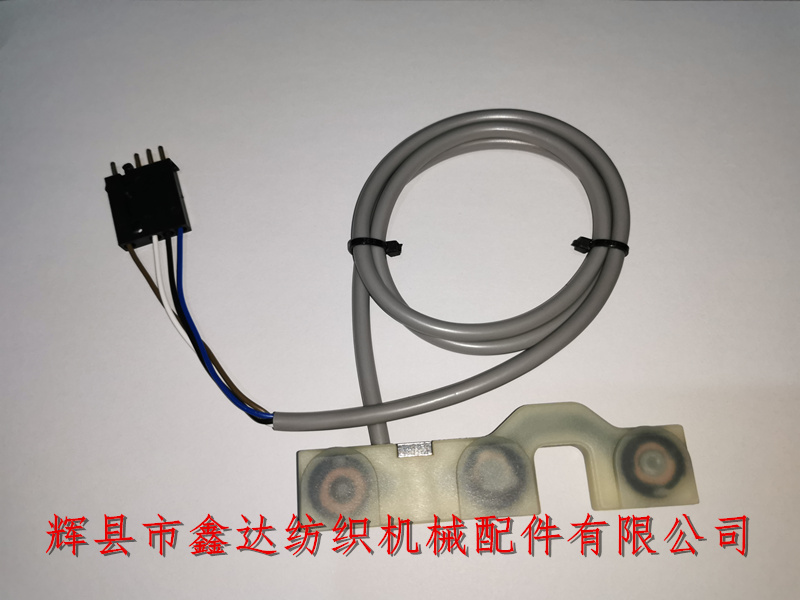

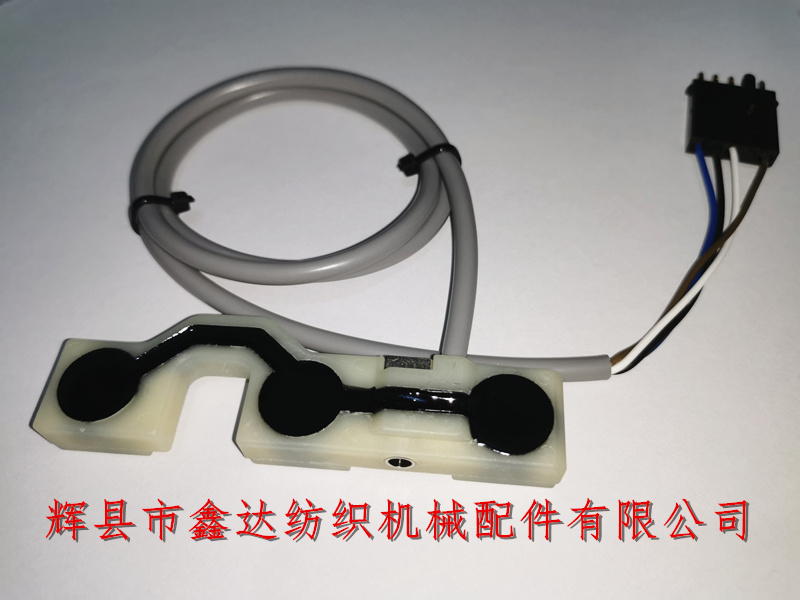

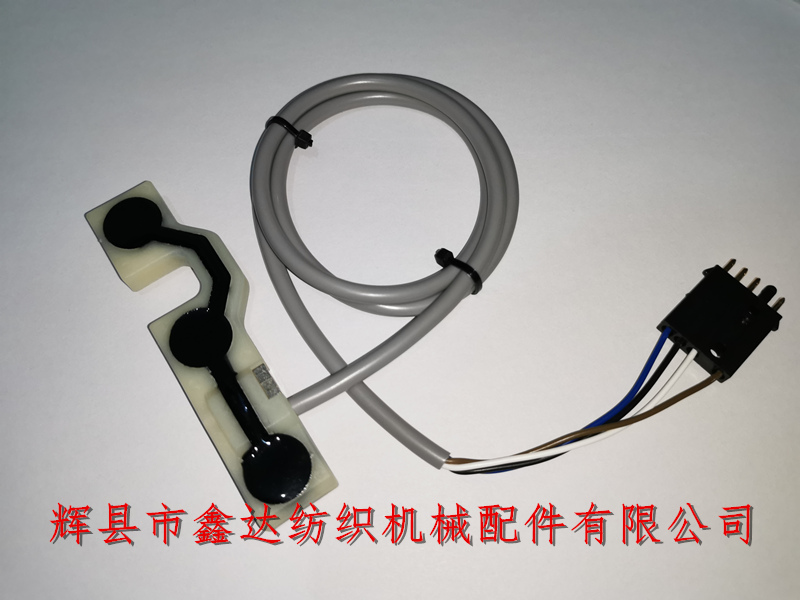

Huixian Xinda Textile Machinery Parts Co., Ltd. has provided Sulzer projectile loom weft sensor SMP shuttle making weft feeler 911802307 for a long time.Weft Sensors, P7100 Sensors, SMP Sensors,Projectile Sensors, The main body of Sulzer projectile loom weft feeler is 95.5mm long, 26.3mm wide, and the total thickness is 14mm (yarn guide hole position). The thickness of other protruding parts is 10.7mm, and the length of the square stainless steel iron edge above is 9mm.
The length of the wire at the rear of the 911 802 307 shuttle weft detector is 76.5 centimeters (to the end of the plug), with four core wires (blue, black, white, and gray in sequence), and the plug is a four headed cylindrical type.
There are various types of textile machine electrical products, including parking sensors (845 021 000845 021 001927 009 861911 180 593), weft sensors (950 703 007911 321 062911 321 038), shuttle sensors (911 328 069911 328 097), angle sensors (911 328 022911 802 333911 302 508911 180 684), electronic motor warp sensors (930 202 669) Flight triggers (911 329 062911 321 011911 321 058), proximity switches, etc.

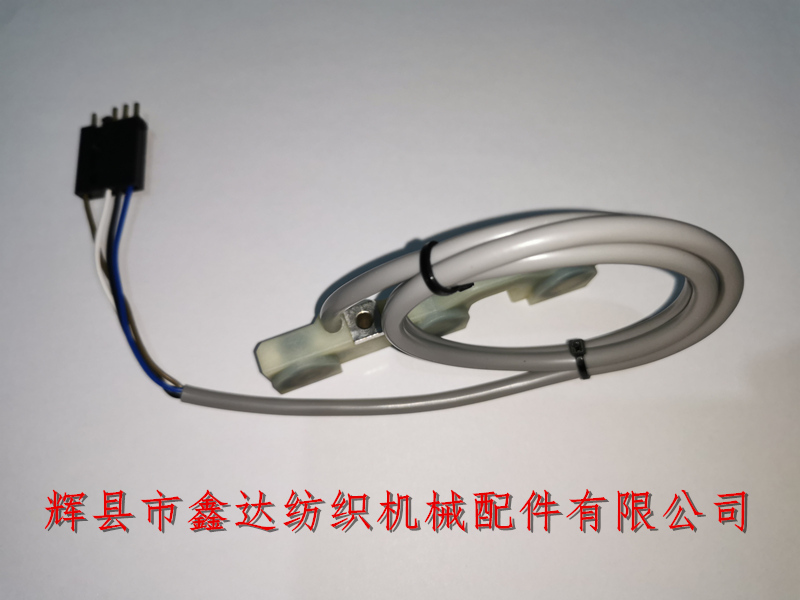

The above picture is a side view of the P7100 weft sensor; The inner diameter of the guide hole is 4.2mm, and the total length of the black plug of the SMP sensor is 30mm, the width is 20mm (excluding the two side clamps), and the thickness is 5mm.
The shuttle weft detector is packaged in transparent bags, with one piece per bag, each weighing 60 grams, and a minimum order quantity of 10 pieces. If foreign customers need to purchase textile sensors, weft detectors, shuttle sensors, SMP sensors and other products, please contact Mr. Yang from "Xinda Textile Accessories" for consultation!
