Huixian Xinda Textile Machinery Parts Co., Ltd. provides AC/2S rapier belt and weft receiving rapier belt and weft sending rapier belt,AC/2S Rapier Belt_Rapier Ribbon_Sword Strap. Due to the differences in the weft receiving and weft sending rapier heads used in the Shumeite rapier loom, the front appearance of the matching rapier belt is different. The two holes in the front of the weft receiving rapier belt are on the same horizontal line, and the rapier head is in the middle position. The two holes in the front of the weft sending rapier belt are diagonal holes with a large spacing, and the rapier head is biased to one side.

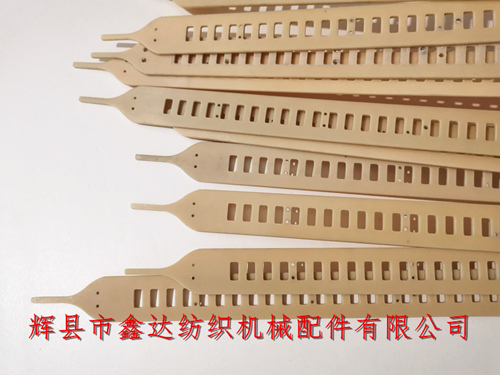

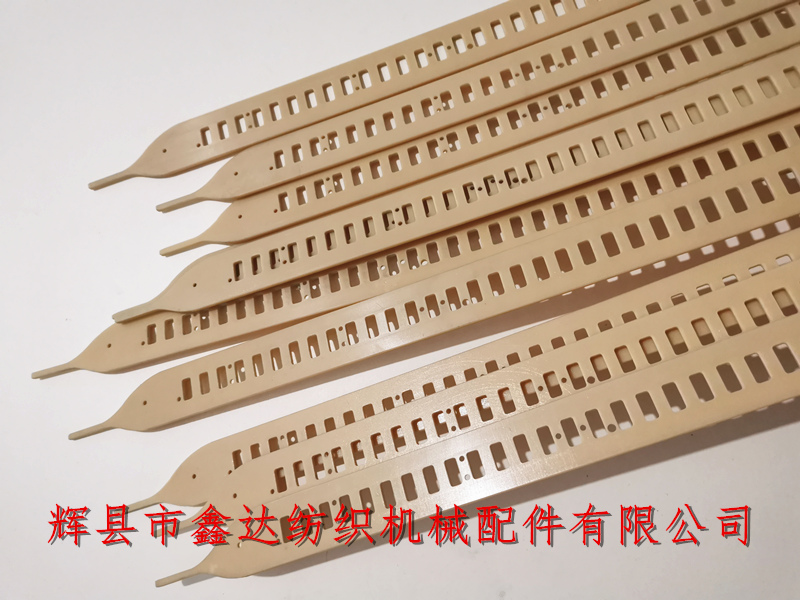

The above picture shows the weft feeding rapier belt(rapier Ribbon) of the Schumet loom; Sword Strap,The overall dimensions of the weft receiving and weft sending sword belts are basically the same: the outer width is 30mm, the thickness of the edges on both sides of the sword belt is 3.2mm, and the thickness of the rectangular hole in the middle is 2.8mm (the inner side of the sword belt is flat).

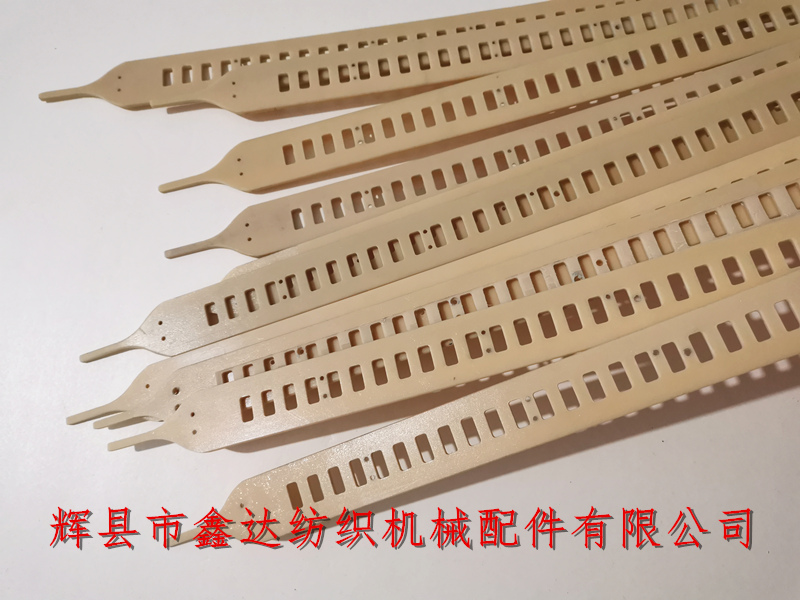

The figure above shows the weft connecting sword (belt). The inner diameter of the screw fixing hole in the front of the sword is 2mm, the spacing between the two holes on the horizontal line is 4.5mm (calculated by the edge computing of the hole, the center spacing is 4.5+2=6.5mm), and the inner diameter of the bottom step hole is 3.7mm,.

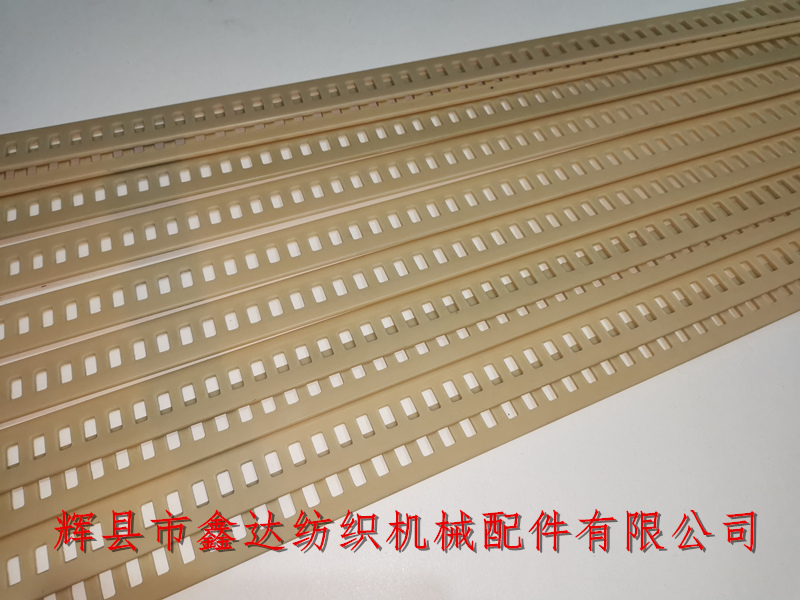

The size of the teeth hole (rectangular) of the sword wheel in the middle position is: 12mm inner length, 5.7mm inner width, with a spacing of 5.2mm between adjacent strip holes. The weight of a single sword is about 240g (based on the length of 2450mm). The comparison between AC/2S door width and sword belt length: the sword belt length for 210 door width is 1900mm, the sword belt length for 330 door width is 2450mm, the sword belt length for 380 door width is 2700mm, and the sword belt length for 420 door width is 3100mm, The length of the sword belt used in the 460 door Schumet rapier machine is 3400mm.

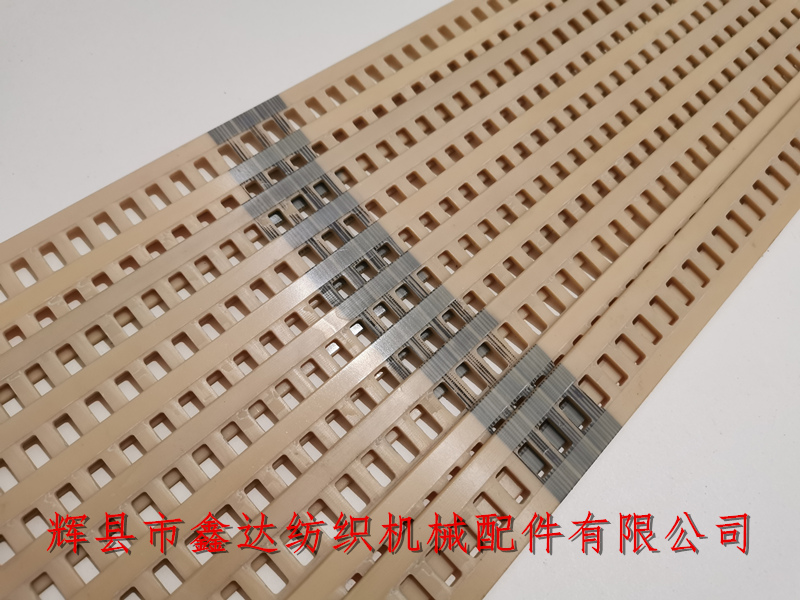

The packaging of AC/2S Schumet rapier machine rapier belts is 10 pieces per bag and 20 pieces per box. Foreign trade companies or foreign textile customers need to purchase textile rapier belts, Rapier Belt,Rapier Ribbon,Sword Strap,Rapier Loom Parts, Schumet rapier machine rapier belts, sword generation, AC/2S large rapier accessories and other products. Please contact Mr. Yang of our company for consultation.
