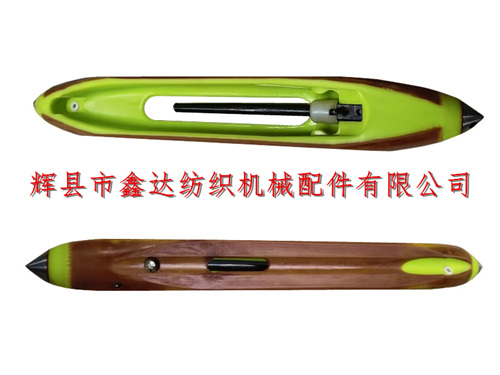

Huixian Xinda Textile Machinery Parts Co., Ltd. provides a 13.5 inch composite nylon shuttle (343 * 45 * 35mm). The external dimensions of this weaving machine shuttle are: total length of 343mm, bottom outer width of 45mm, upper outer width of 43mm, total height of 35mm. The two outer sides of the shuttle body are processed by composite processing, and the weight of a single shuttle is about 0.38 kilograms.
The shuttle adopts a double ceramic eye (diameter 6.5mm) design, and the weft yarn undergoes three changes in direction to increase resistance and reduce the occurrence of weft shrinkage. The interior of the shuttle cavity has a curved neck, which is used in conjunction with a 180mm (18cm) warp tube.

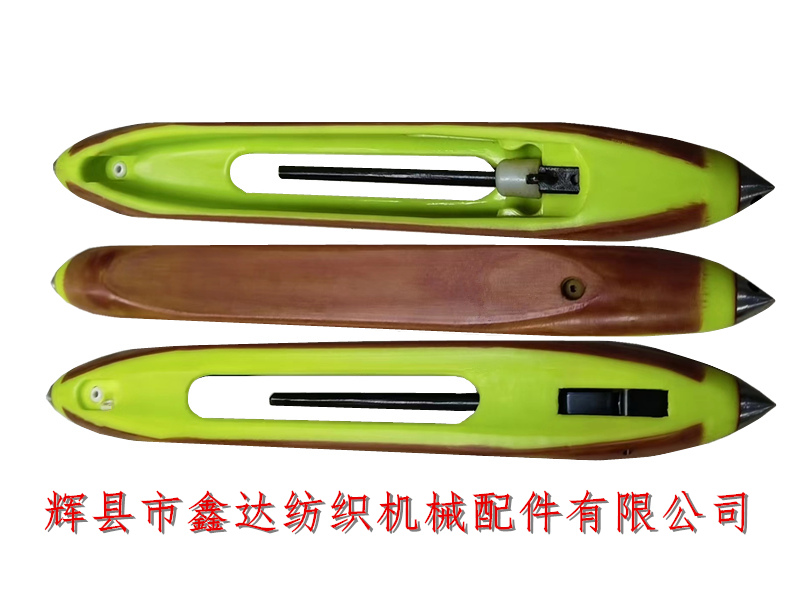

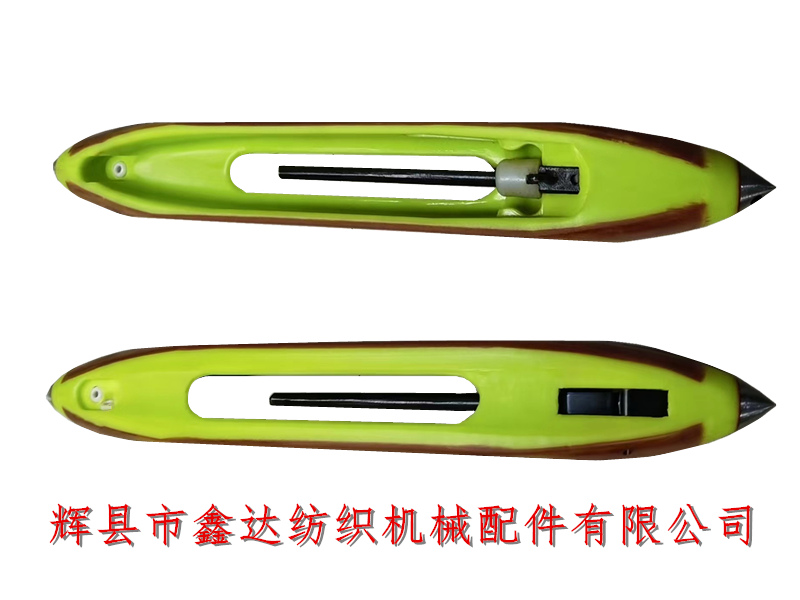

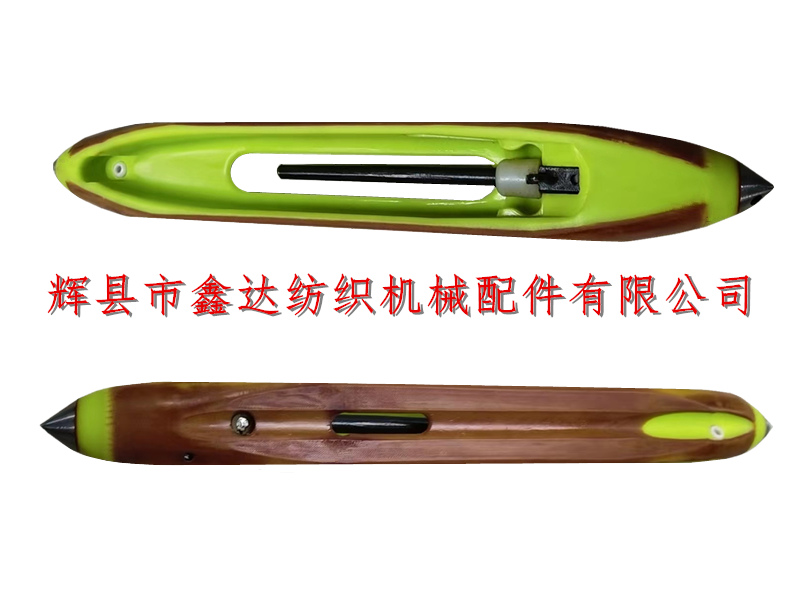

The above figure shows the top and side views of the composite shuttle, with the composite surface used to increase the wear resistance of the shuttle body; The angle between one side of the wire slot and the shuttle bottom is 90 °, and the angle between the other side and the bottom is 86.5 °; The 13 inch and a half composite nylon shuttle (343 * 45 * 35mm) is divided into left and right hands, and its packaging is cardboard boxes, with 50 pieces per box.
The center of gravity and flight trajectory of the textile equipment weaving machine composite shuttle are relatively stable. If you need to purchase a 13 and a half inch composite nylon shuttle, please contact Mr. Yang from our company for consultation. The minimum order quantity is 100 pieces, and we sincerely welcome your visit!
