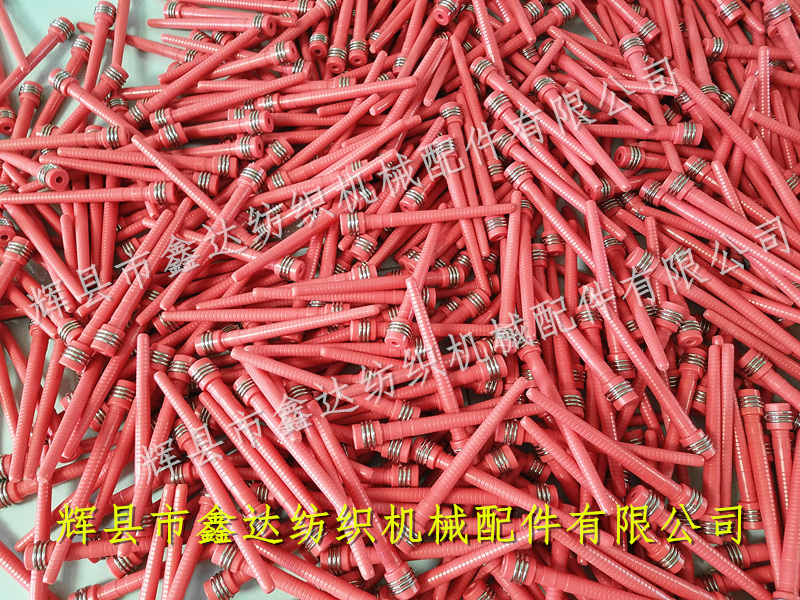

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Automatic Cop Changing Loom 190 weft tube(Bobbin) D27 three steel ring plastic pirn. The specification of this textile weft tube is 190mm long * 3 steel rings. This weft tube(nylon pirn) is used in conjunction with the iron clamp of the changing shuttle, and the number of grooves on the inner side of the steel ring matches that of the iron clamp. The four groove clamp uses a weft tube with 3 steel rings.

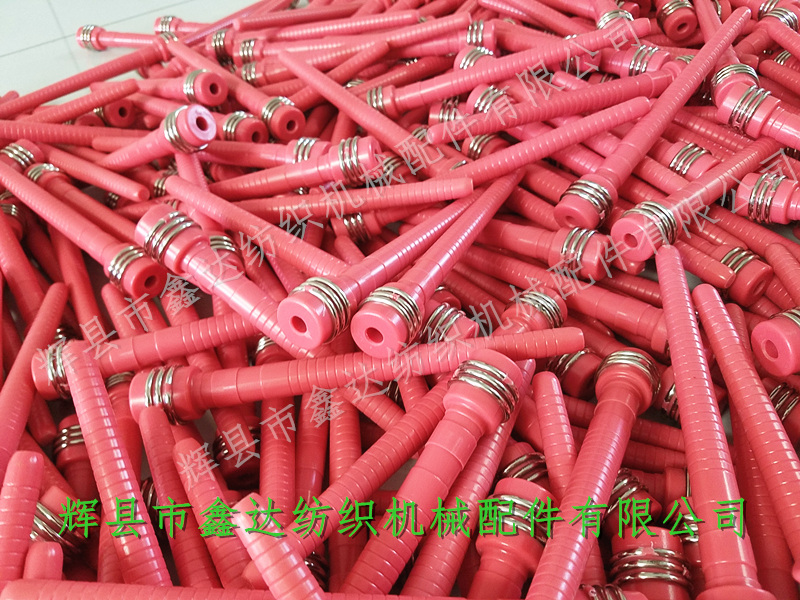

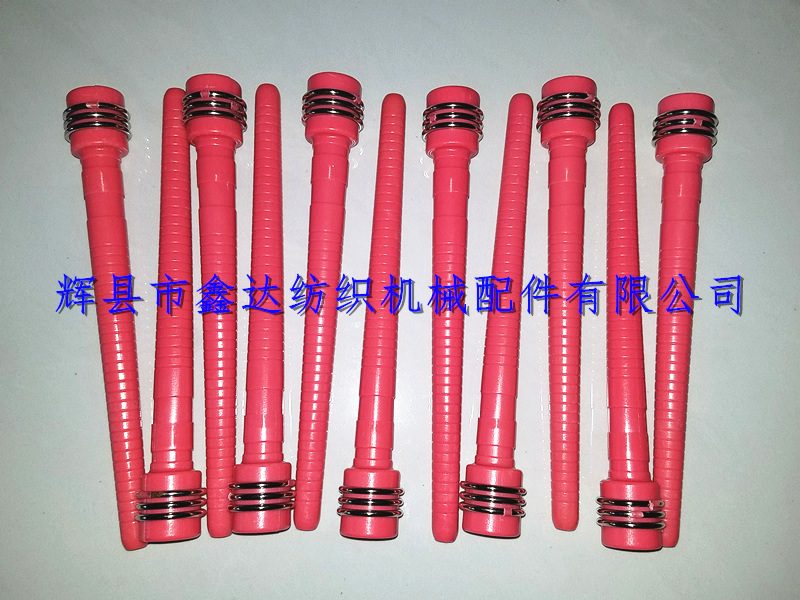

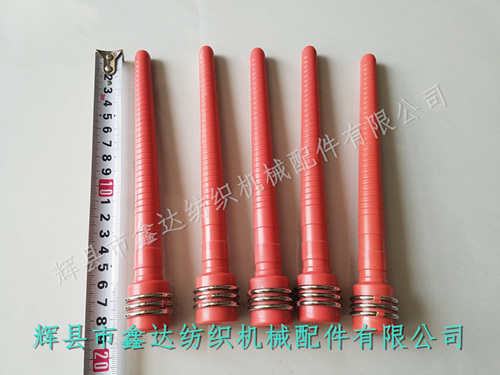

D27*3 specification, D27 refers to the outer diameter of the steel ring being 27mm, 3 refers to the number of steel rings, and 190 refers to the total length being 190mm. The main material of the weft tube is modified polymer nylon. Automatic Swapping Loom 190 Weft Tube D27 Three Steel Ring Plastic Weft Tube: The main body diameter of the big head is 23mm, the height is 25.7mm, and the inner hole diameter at the bottom is 8mm (see figure below).
Automatic Cop Changing Loom 190mm Bobbin: The outer diameter above the large end of the weft tube is 16.3mm, the solid outer diameter of the small end is 11mm, and the effective length for winding weft yarn is 164mm. The inner hole of the plastic 190 weft tube is conical as a whole, and its English name is Bob or Weft Tube;
The diameter of the steel ring is 2.5mm, and the weight of a single 190mm tube (including the steel ring) is 48 grams. The packaging is in cardboard boxes (see the picture below, box dimensions: length 47cm*width 40cm*height 20cm), with 400 pieces per box, and the weight of a single box is about 19.5 kilograms.
If you need to purchase 190 weft tubes, 19 centimeter weft tubes, plastic accessories for automatic weaving machines, replacement weaving machine accessories, wooden weaving tubes or other accessory products, please contact Mr. Yang from our company for consultation. Our company adheres to the business philosophy of "pragmatic progress, equality and mutual benefit", and is dedicated to providing services to enterprise customers at all levels and in all regions.
