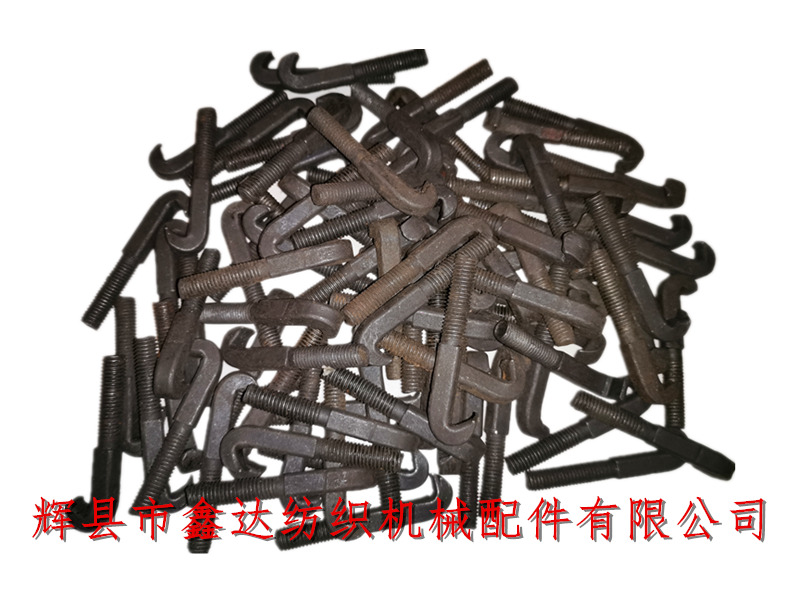

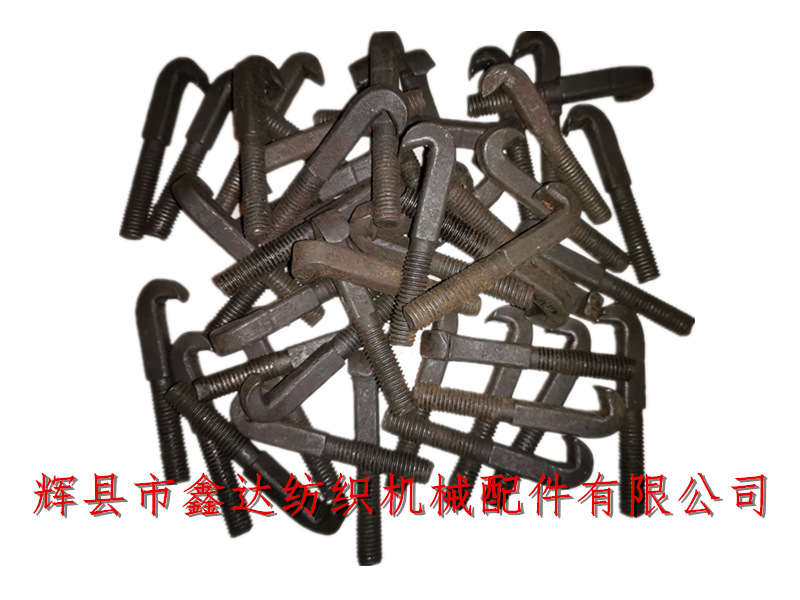

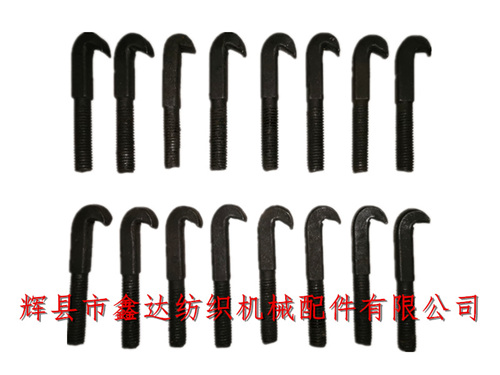

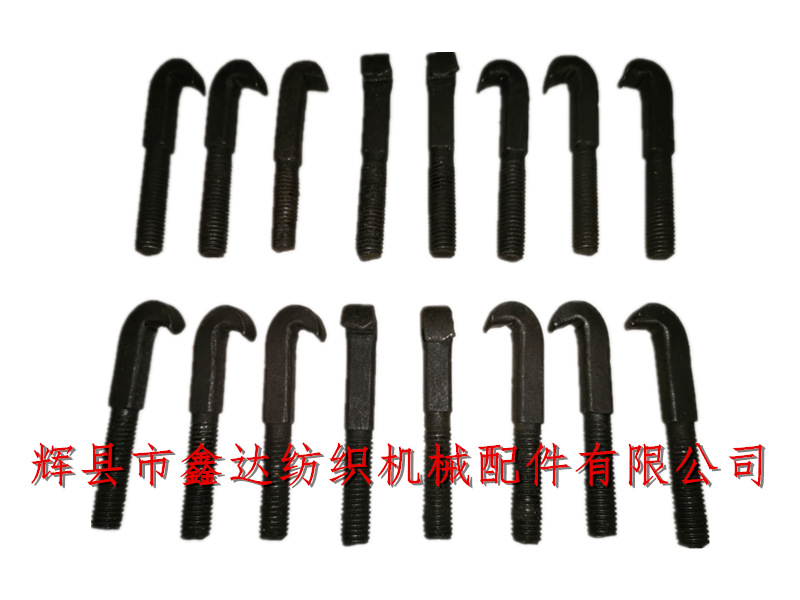

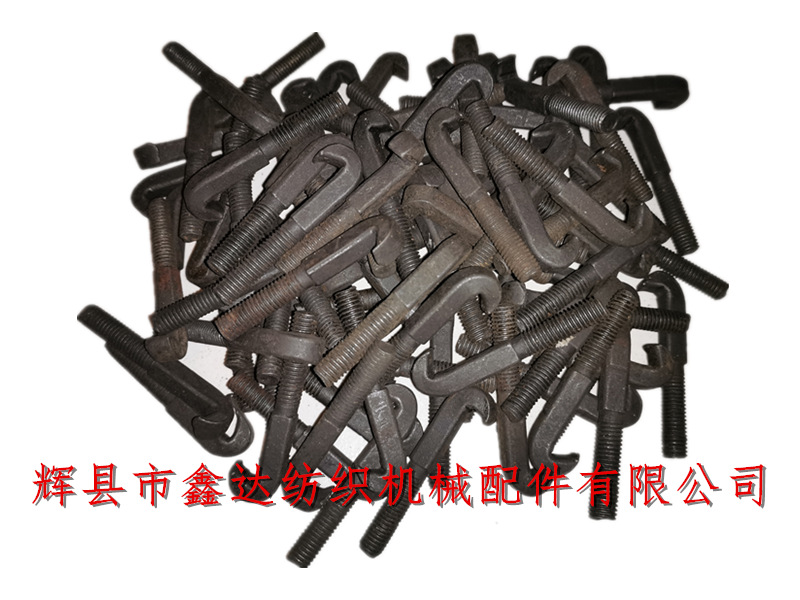

Textile hook head screw L28 weaving machine hardware accessories: 7-shaped hook head screw (side brace spring climbing screw) is made of steel 20, with total length of 56-62mm, thread length of 2.8cm, and square section of hook head screw of 7.7mm. It is a forging hardware accessory for weaving machine, with thread pattern of M8. Hook head screw is connected with side brace slider l21xl22 of weaving machine.
L28 edge brace spring hook head screw can be used for 44 inch, 63 inch, 75 inch, 56 inch, 110 inch and other old-fashioned weaving machines with door frames. Each weaving machine uses 2 pieces.
The surface of the hook head screw is blackened, which can prevent rust. After high temperature forging, its tensile strength is enhanced, which can meet the use requirements of the edge support device of the loom. During installation, the surface of the edge support bar 3906 or L44 can not be exposed.Textile Hook Screw L28 Loom Hardware Parts.
1511 textile screw, 1515 textile machine hook screw. Generally, there are two kinds of hook screws used in shuttle loom, L28 and L62. The difference is in the overall dimension, L62 is longer than L28 and has bending.
If you need to buy hook head screws, hook head screws, textile hardware accessories and other products, you can consult our company's sales personnel. The initial order of this product is more than 1000, and the delivery method can be logistics or express delivery. The payment will be sent after 4 days, and the waybill number will be provided in time.
