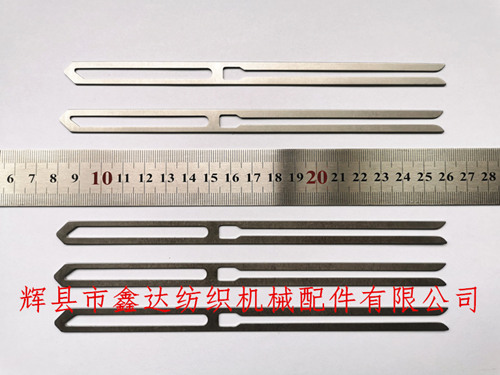

Our company provides Special Specification Textile Droppers and 180 opening textile droppers accessories. The products are inclined opening stop sheet, which is convenient for operation. Its parameters and specifications are: total length 180mm, outer width 11mm, thickness 1mm. It belongs to thickening type. The inner width of opening of stainless steel stop sheet is 3.2mm, the upper inner width of inclined stop sheet is 5mm, and the length of chute is 9.5cm. It is suitable for weaving heavy cloth or large warp tension Textile.
731 rapier machine has a diagonal opening stop sheet, the weight of the single sheet of 180 * 11 * 10 mm Textile Droppers is about 9.2g, and the textile stop sheet equipment is generally suspended behind the loom (including rapier and shuttlecock machine), which can tighten the warp yarn by its own gravity drooping, and keep the fabric flat and uniform weaving.

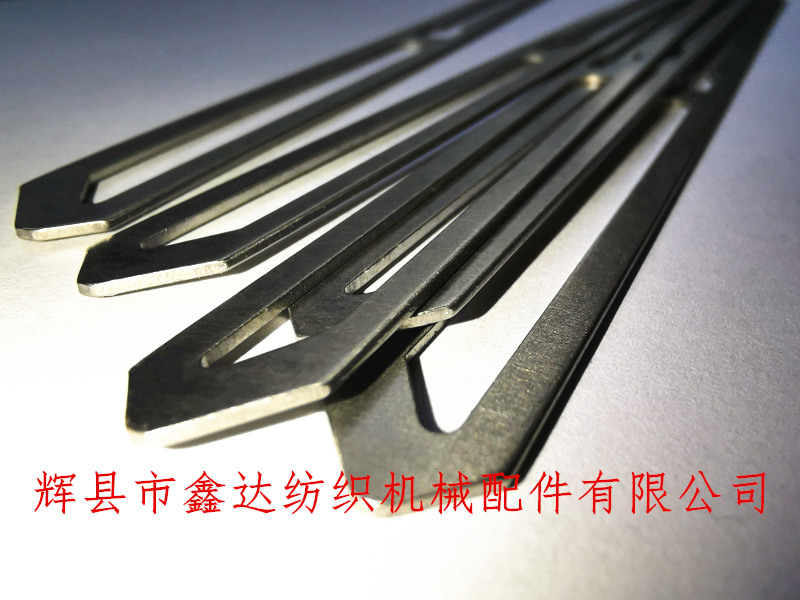

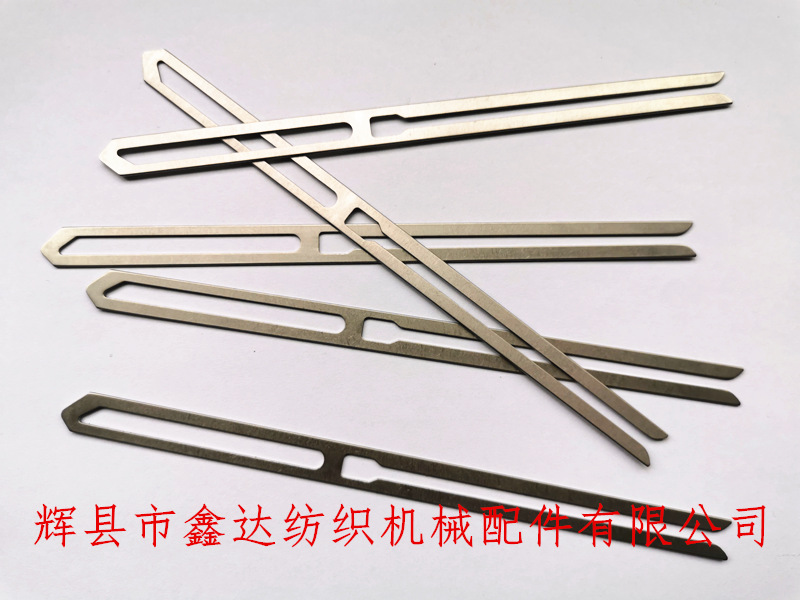

The above figure shows the inclined head on the upper part of the opening stop sheet. The thickness can be clearly seen in the picture. The mechanical stainless steel stop sheet is generally made of one-time stamping and forming, while the stainless steel material does not need to be surface treated!

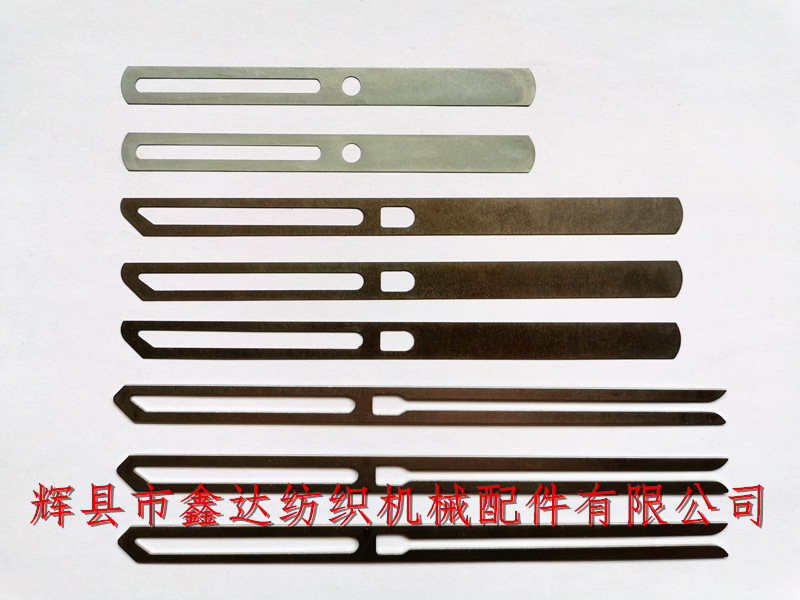

The picture above shows three kinds of Textile Droppers from top to bottom: 120 sutures for shuttle machine, 747 rapier machine, and thickened sutures for special fabrics. Due to the poor material, the stop sheet used by shuttle loom generally needs galvanizing treatment.
If the textile mills need to purchase special textile droppers, 180 opening stop sheet and other droppers products, they can inquire with our company. Because of the different thickness of stop sheet packaging, the number of single package is different. Welcome to consult textile stop sheet and loom stop sheet products.
