Textile stamping parts, K6 reed cap pad iron, old loom parts material is A3, loom pad iron (reed cap) shape length 73 mm, width 50 mm, middle square hole parameter is 13 mm * 11 mm, wood screw round hole diameter on both sides is 5 mm, K6 loom pad iron thickness is 2.7 mm. Reed cap pad iron is a shuttle textile stamping part and loom hardware, which is used to fix the reed cap of loom.

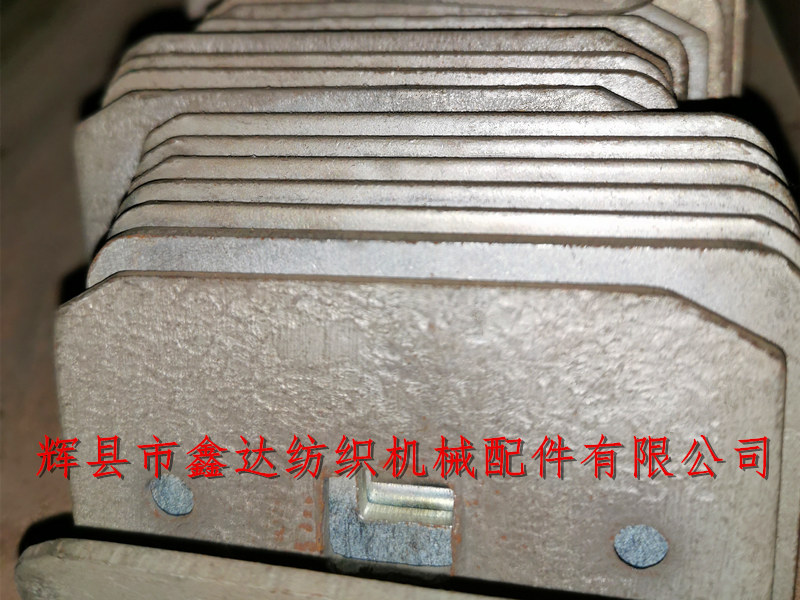

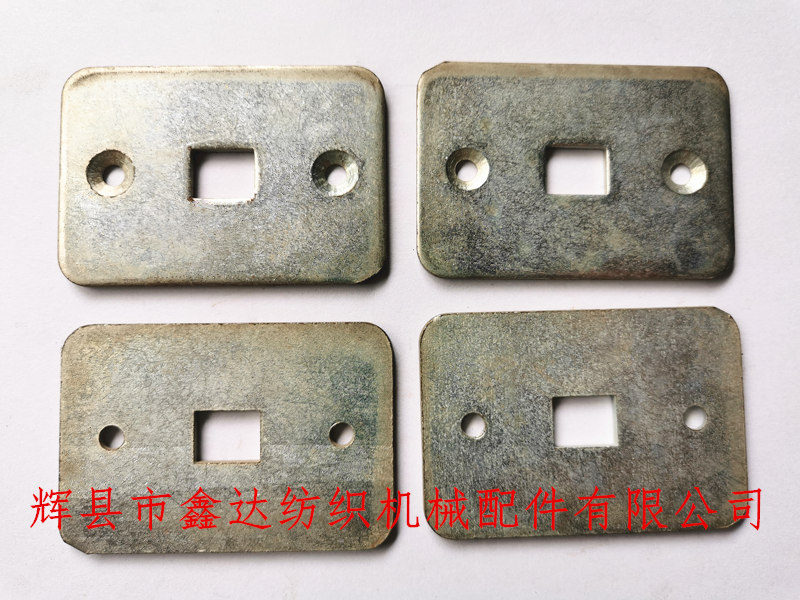

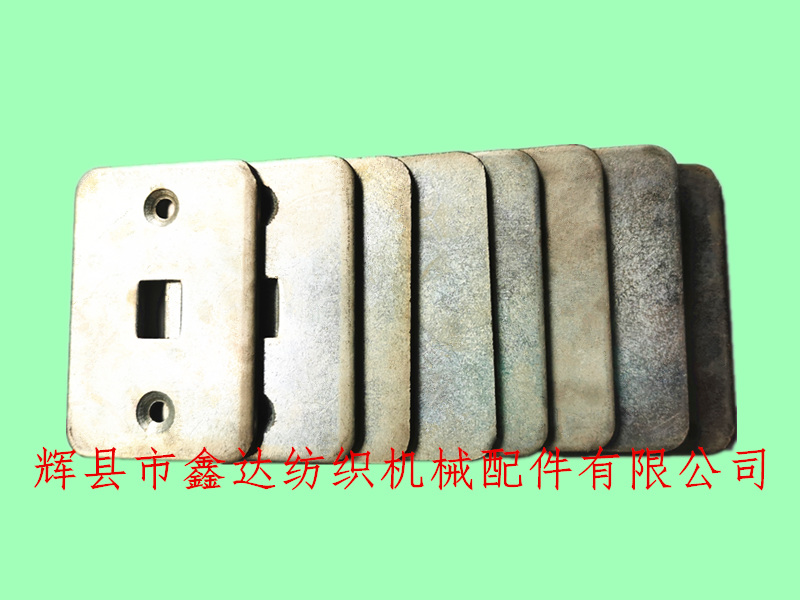

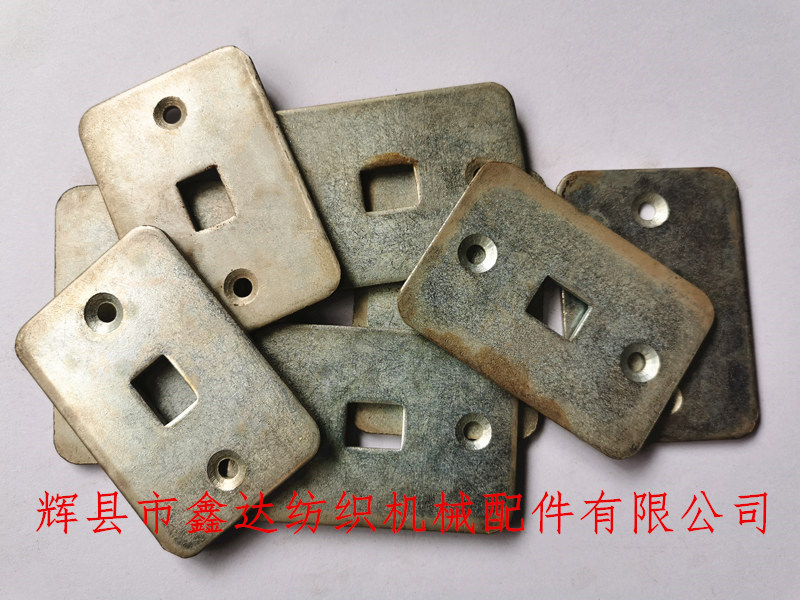

The above picture shows the front and back view of textile stamping parts and loom pad iron K6. Each pad iron is fixed on the reed cap of old loom by two wood screws, and the reed cap is fixed on the reed foot by carriage screw in the middle hole.Stamping parts, reed cap pad, loom parts.
Two K6 textile stamping parts are used on each loom and connected with 3224 reed cap or Q9. In addition, K6 loom pad iron can also be used to fix both ends of reed frame to prevent reed frame from cracking during long-term vibration. Package: woven bag, 500 pcs / bag.
Textile A3 material stamping products are: K6 pad iron, k73 pad iron, K72 pad iron, gantry j00-2, weft fork J32, K88 shuttle box iron, f116 side clamp, F240 wire fork plate, etc. If you want to buy K6 pad iron, old loom parts, textile stamping parts and other products, you can contact Xinda Textile accessories, welcome to consult!
