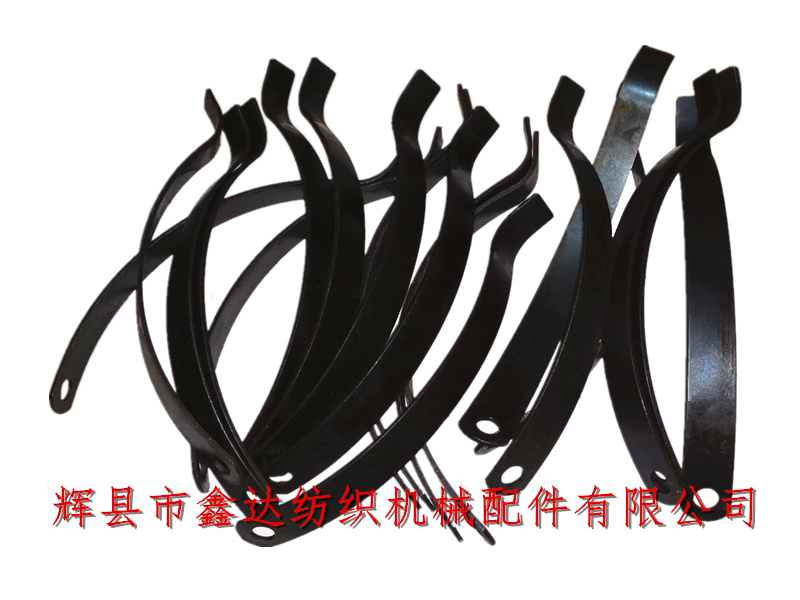

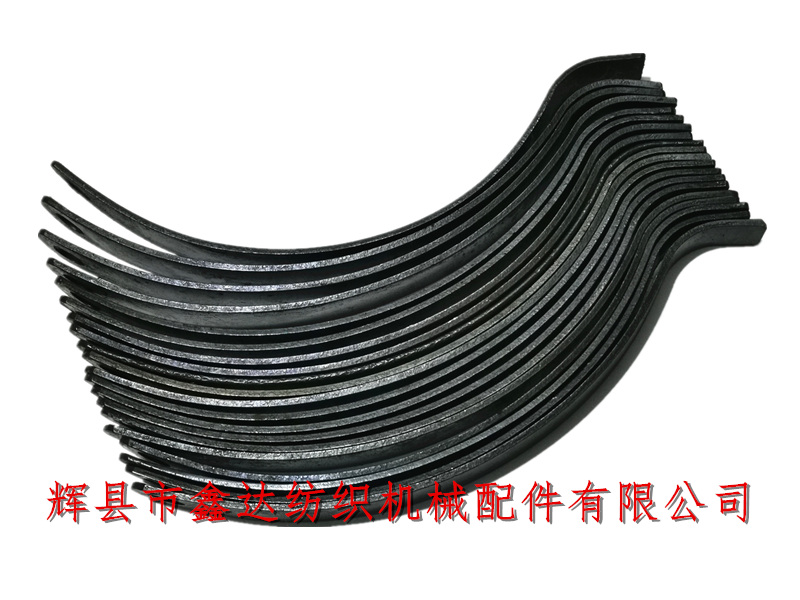

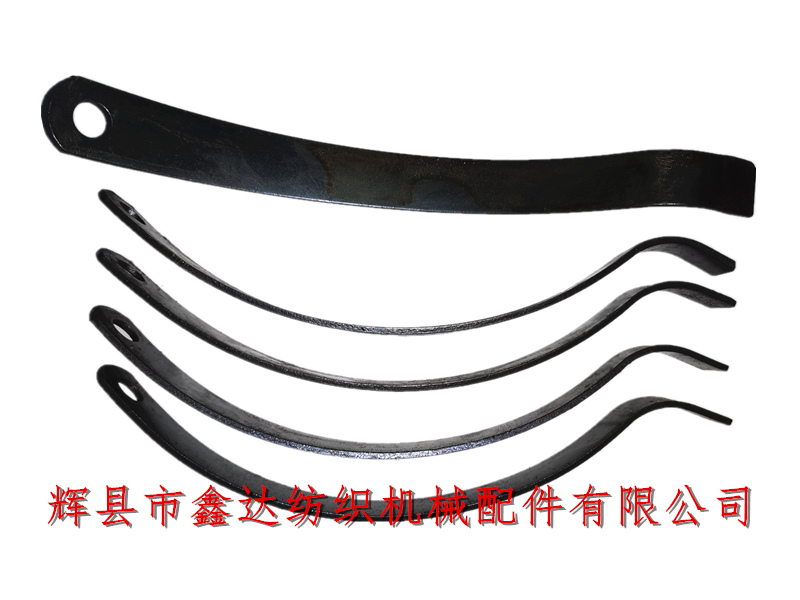

Xinda Textile machinery accessories provides old loom accessories of models 1511, 1515, GA615 and GA611 all year round. K55 extension rod spring is made of 60Si2Mn steel sheet and fired in kiln after stamping. The thickness of textile spring is 2mm and the total linear length is 21cm, which is connected with L21/L22 side brace slider. Installation requirements of extension rod spring K55: the surface of the side stay rod (3906) shall not be exposed, and the elastic force on both sides shall be the same. F211 starting compression spring shall be added to the loom for ethnic minorities.
Textile leaf spring, loom compression spring and old loom iron leaf spring contain a variety of products, mainly focusing on the beating up, shuttle changing and warp protection parts of part K. old loom springs of different models and specifications have different functions. Leaf spring is used for pressing, torsion spring is used for resetting after power output, and elastic spring is used for tensioning.
The number of K55 extension rod springs used in each loom is 2, one on the left and one on the right. Common shuttle looms: K53 shuttle box spring (switch side), K54 stop dog spring, K52 shuttle box spring (shuttle change side), K48 shuttle box back plate spring (switch side), K47 shuttle box back plate spring (shuttle change side), F48 shuttle throwing buffer spring.
K55 spreader bar spring has 20 pieces in each bundle, 600 pieces in each box, and the starting order quantity is 20 pieces. 1515 old loom adopts shuttle weft insertion, and the shuttle throwing process is simple. The shuttle throwing force is generated by the impact between the rotor disc and the shuttle nose. The spreader bar spring vibrates slightly when beating the cloth surface with the reed. If textile factories need to purchase textile spring, textile leaf spring, loom torsion spring and other hardware products, please contact our company.
