Huixian Xinda Textile Machinery Accessories Co., Ltd. provides all kinds of shuttle weaving machine accessories,Weft Break Stop chicken pecking rice needle pressing rod 7216 assemblies. The needle pressing rod assemblies of weft breaking self-stop device include 7216 needle pressing rod, 7217 compression spring and nut, which are mainly used to fix the probe 7218 (0.8mm, 1.0mm, 1.2mm, etc.) on the 7215 rectangular support block. It is applicable to the mechanical weft break stop device of shuttle loom with door width of 28 ", 32", 36 ", 44", 56 ", 75", 63 ", 100", 110 ", etc.

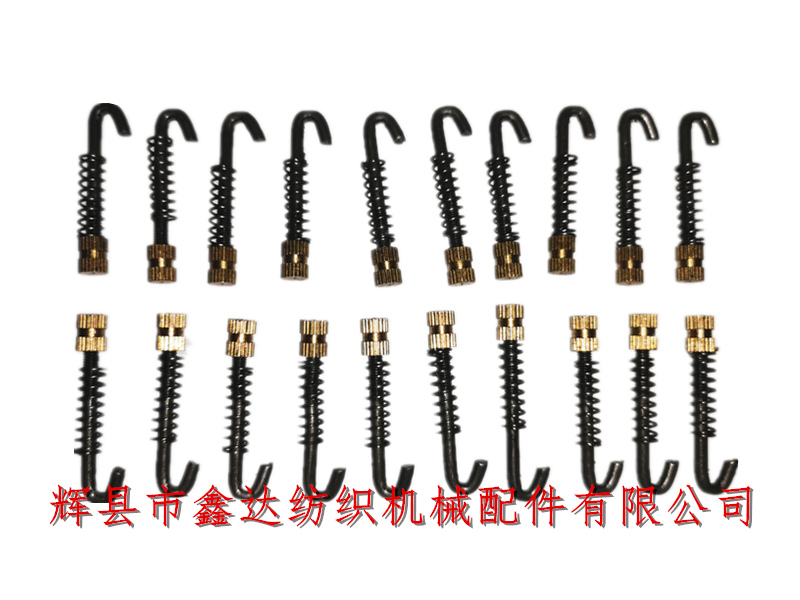

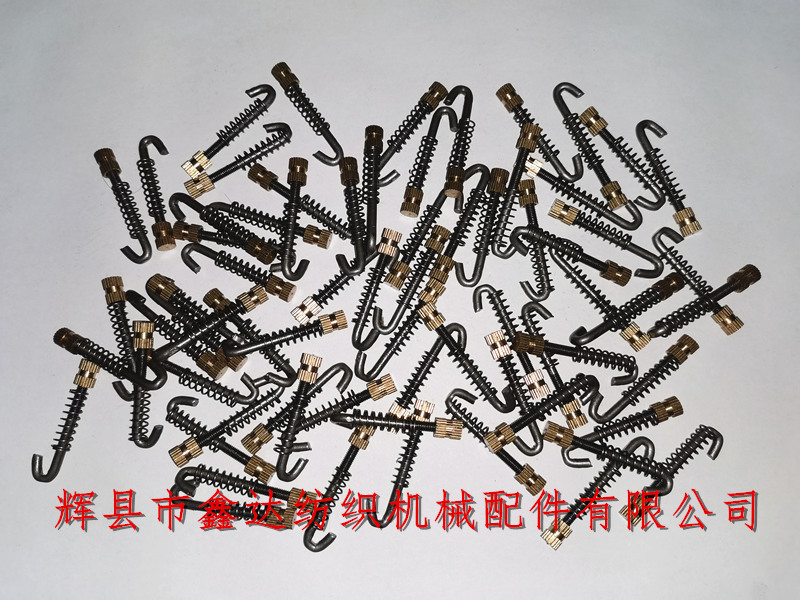

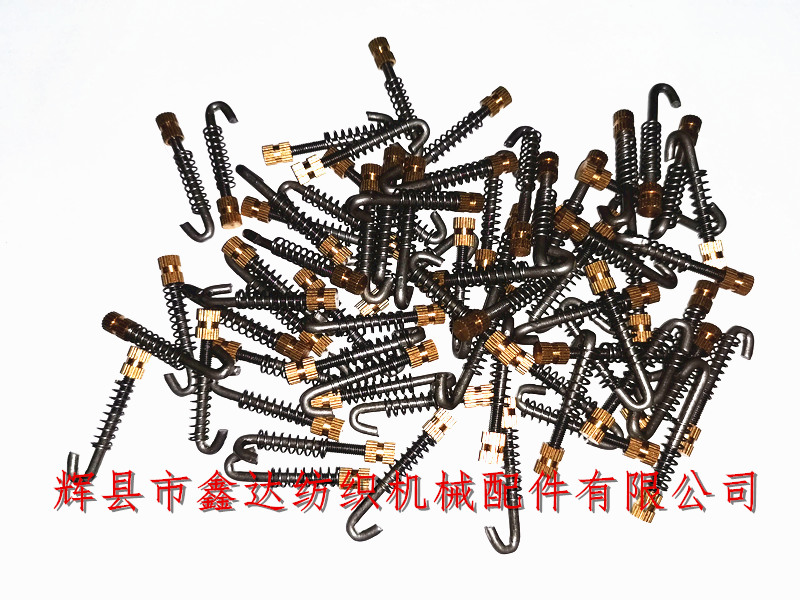

The needle pressing rod 7216 of textile hardware accessories is black in color, with a shape of "7", which is made of A3 cold drawn material with a length of 34mm and a diameter of 2.4mm, bent and twisted, and the golden metal nut is m3; The compression spring has a length of 16.5mm and an outer diameter of 5mm. It is processed with piano steel wire with a diameter of 0.5mm.
Hardware accessories of weaving machine - the outer diameter of the needle pressing rod nut is 5.3mm and the height is 7mm. Each loom uses a set of needle pressing rod combination, which is installed on the head of the loom, regardless of left hand and right hand. The width of the opening position of the 7 head is 8.5mm and the inner width is about 3.5mm.
The package of needle pressing rod 7216 assembly is self sealing bag, with 100 sets per bag and a minimum order of 20 sets. The hardware used in weaving machine is mostly processed with A3 materials, and the requirements of bending, stamping, extrusion and other processes are different. If you need to purchase textile hardware accessories - weaving machine accessories chicken pecking rice needle pressing rod 7216 assembly products, please contact manager Yang of our company for details!
