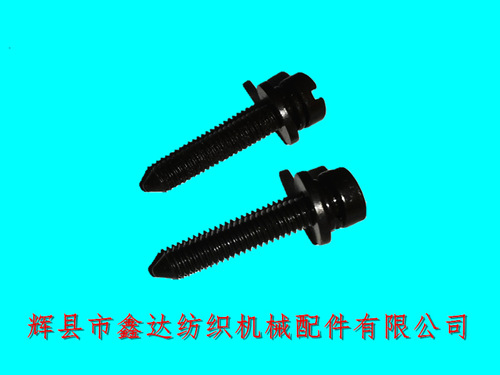

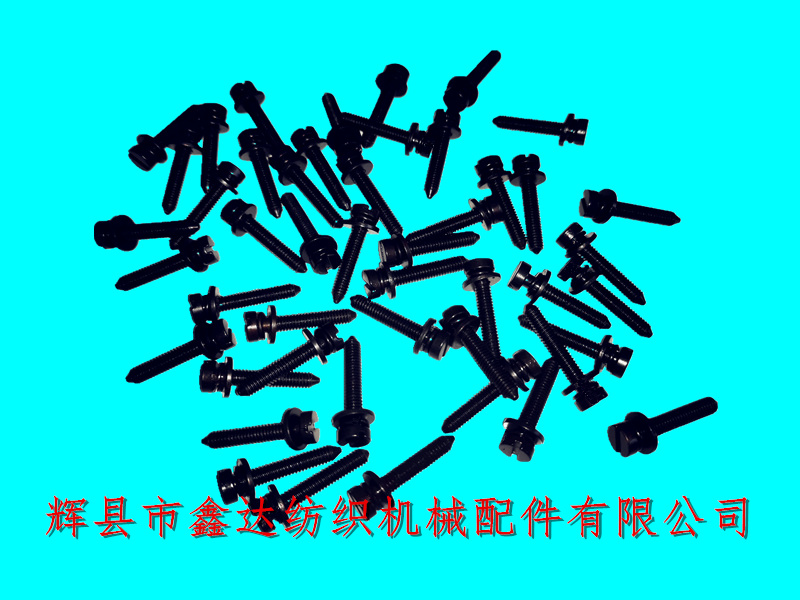

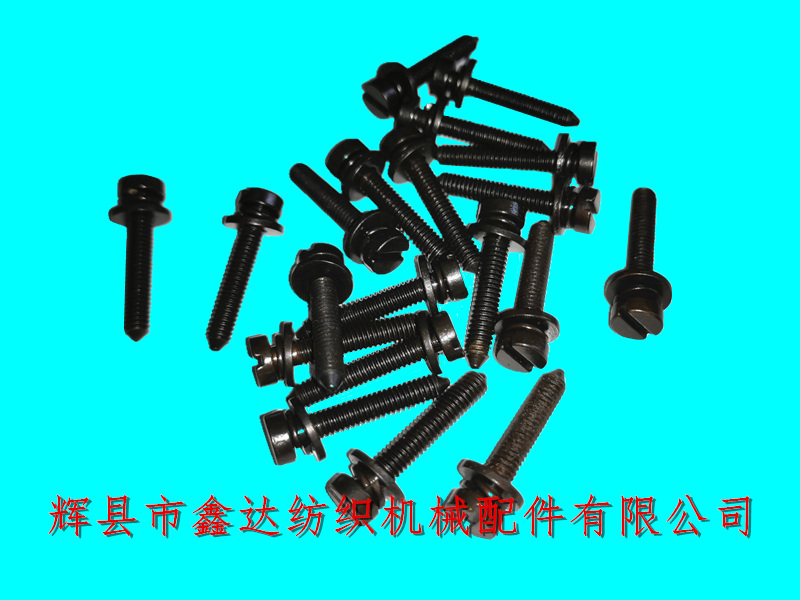

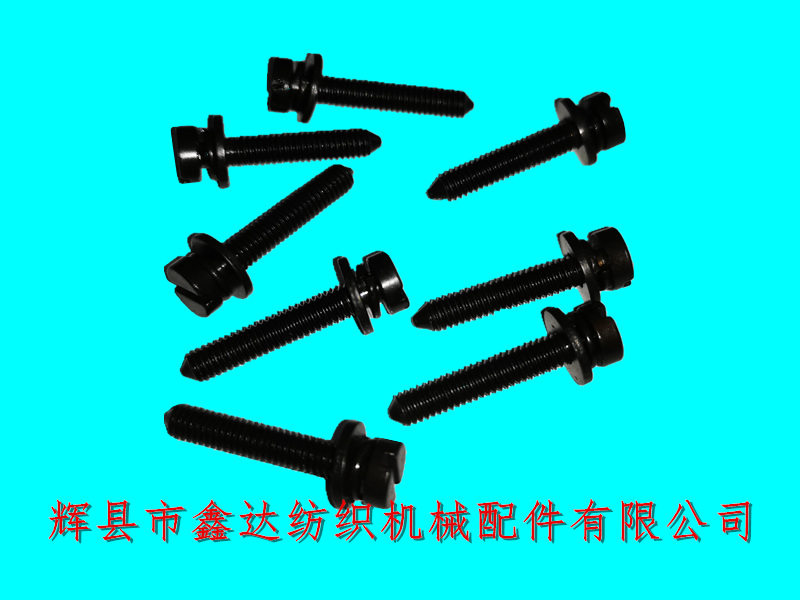

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Projectile Hardware/Special Screw/91132316. The guide shuttle teeth screw belongs to the reed seat component of Sulzer shuttle machines, with the English product name: SPECIAL SCREW. The screw is a straight slotted M4 thread with a thread length of 23mm and a total length of 26mm; The diameter of the circular cone is 7mm, the thickness is 2.4mm, and the outer diameter of the flat pad below is 9mm.
The Loom Sley components of the Sulzer shuttle machine include Steel Band Lower, Coupling Half, Main shaft intermediate piece, guide Tooth Attachment Band, pressure spring, reed seat beam, six tooth combination guide shuttle gear, four tooth combination guide shuttle gear, etc.
The packaging of guide shuttle teeth, screws, Projectile machine accessories, and nail screws (911323216) is transparent bags, with 100 pieces per bag. There is a spring pad between the circular cone and the flat pad, and the overall color is black.
If you need to purchase Projectile Hardware/Special Screw/91132316, shuttle guide screws 911 323 216, D1 guide teeth, swing rod seat, shuttle inspection rod and other accessories, please contact our company's Manager Yang for consultation. We sincerely welcome colleagues to visit and guide us.
