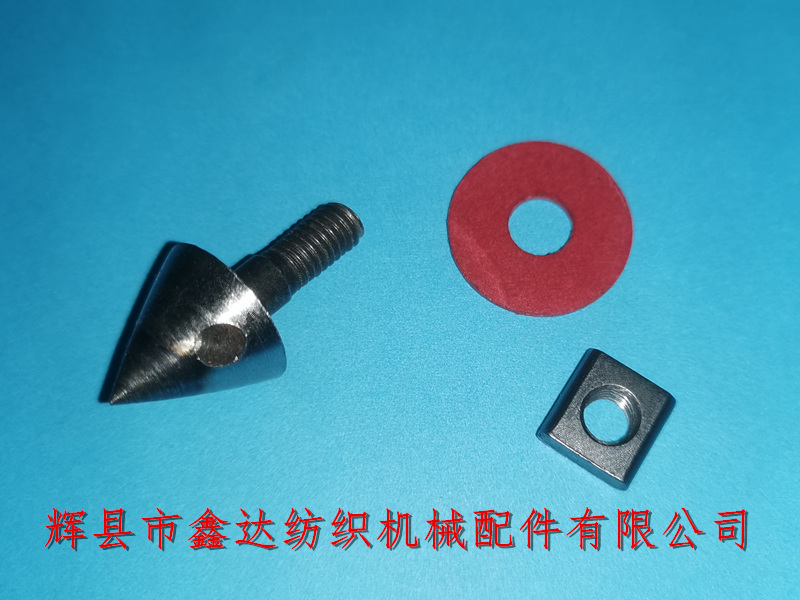

Huixian city Xinda Textile Machinery Accessories Co., Ltd. provides the shuttle tip (with clamping nut) II and gasket of silk loom. The dimensions of the small shuttle tip are: the total length is 32.5mm, the cone bottom diameter is 17mm, the cone height is 16mm, the inner diameter of the cone face (side waist hole) is 4mm, the thread at the tail of the shuttle tip II is M6, the length is 10mm, and the inner ring diameter at the cone bottom is 11 mm.

The diameter above the thread of the shuttle tip is 6mm, the length of the flat clamping nut is 11mm, the width is 11mm, and the thickness is 4.7 mm. Each shuttle uses 2 sets of shuttle tips.

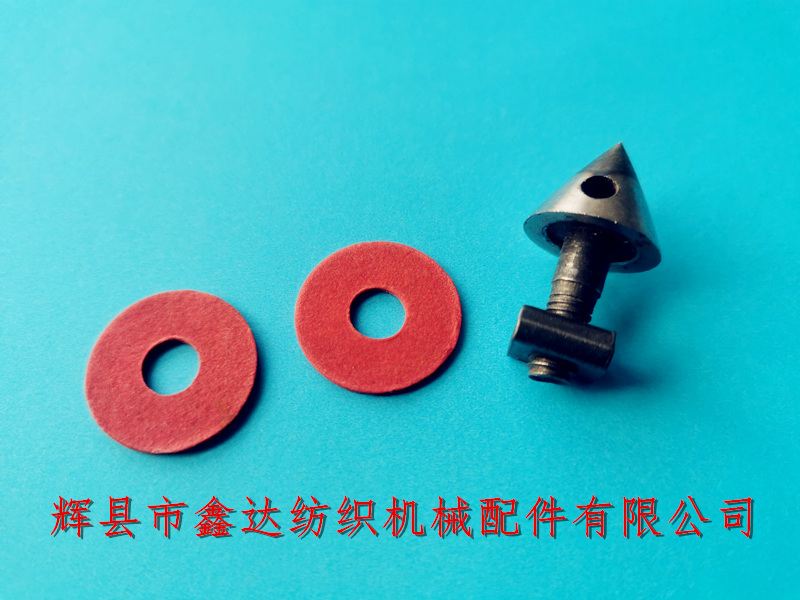

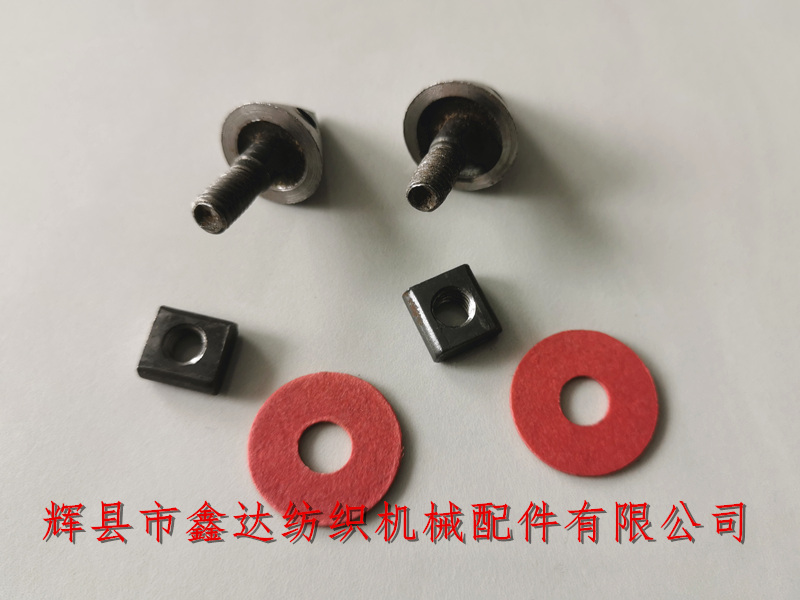

There are two specifications of this shuttle tip (see the above picture), the small shuttle tip on the left and the large shuttle tip on the right (according to the size of the conical bottom); The circular hole diameter of the red steel paper gasket in the above picture is 7mm, the thickness is 1.2mm and the outer diameter is 21 mm..

The weight of a single shuttle tip+nut is 16 g/set, and the packaging specification is: 100 sets/bag, which is packaged in a transparent self-sealing bag. If you need to purchase this small steel shuttle tip, or other products such as shuttle tip (with clamping nut) II and gasket of silk loom shuttle accessories, please contact Mr. Yang of our company for consultation.
