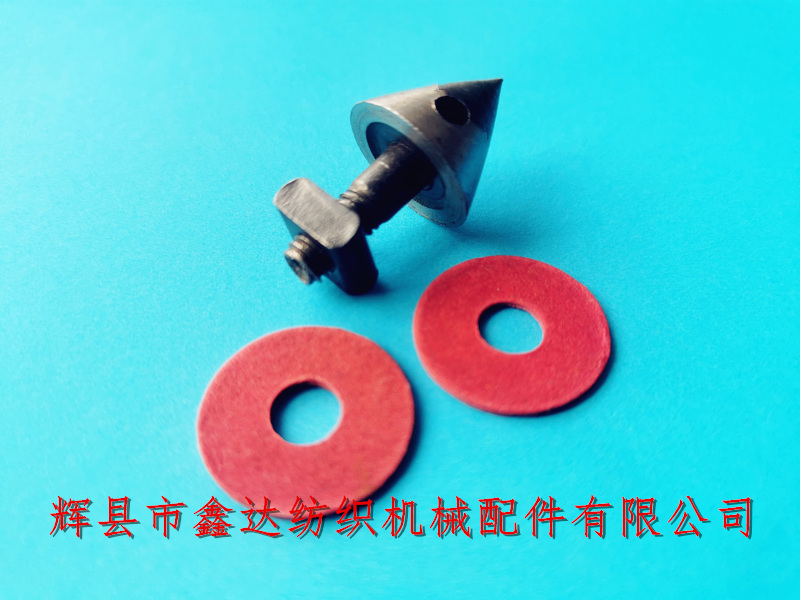

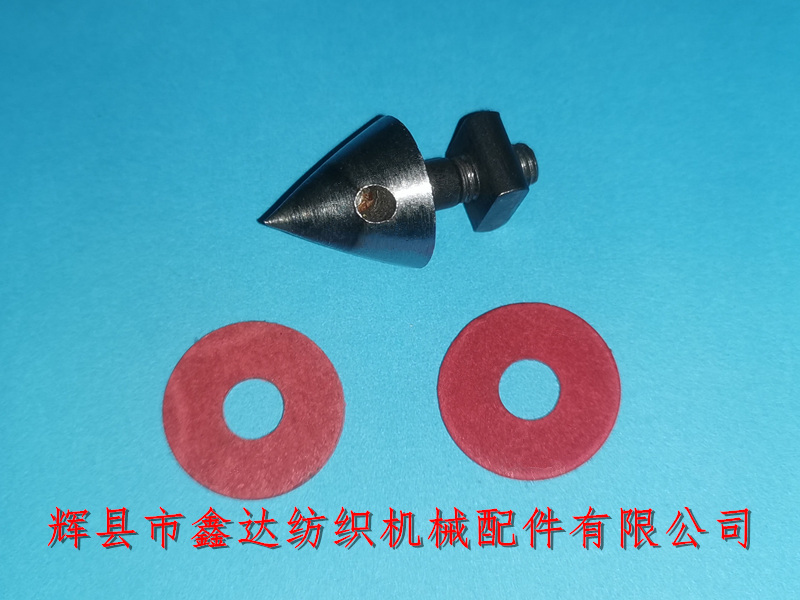

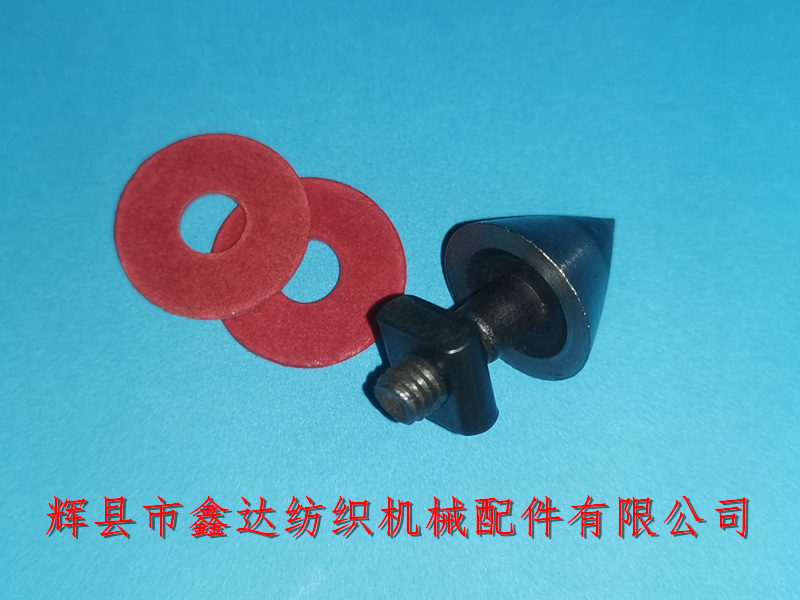

Huixian Xinda Textile Machinery Parts Co., Ltd. provides steel shuttle head clamp nuts for large clamp iron silk weaving machine wooden shuttle accessories. The external dimensions of this shuttle tip I are: total length is 34.5mm, the height of the cone surface of the shuttle tip is 18mm, the diameter of the cone bottom surface is 18.3mm, the length of the cone surface is 19.5mm, and the length of the tail rod is 17.5mm. The length of the screw is 11mm, the thread is M6, and the diameter of the waist hole of the cone surface is 4mm.
The clamp iron used for the shuttle tip is square, with a side length of 11mm and a thickness of 4.5mm. The material is powder metallurgy. The clamp iron shuttle tip is designed to firmly fix the shuttle tip of smaller silk weaving machines during use, and prevent the shuttle body from cracking or separating when the shuttle tip is under force.

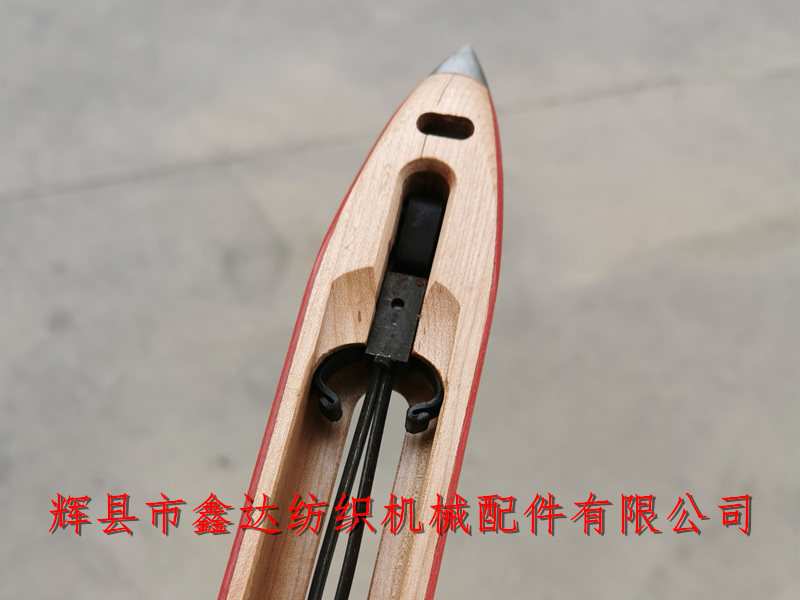

The above picture shows the waistline hole of the I shuttle tip(Iron Clip Type Shuttle Tip For Silk Shuttle), and its installation method is as follows:
The individual weight of this shuttle tip is 16 grams, and the weight of the nut is 3 grams (the weight of the combination kit is 19 grams per set).
Packaging: Transparent self sealing bags, 100 sets per bag; If you need to purchase products such as clip iron shuttle tips, silk loom wooden shuttle accessories, steel shuttle heads, wooden shuttle tips, steel shuttle tips, shuttle accessories, silk loom accessories clip nuts, etc., please contact Mr. Yang from our company for consultation.
