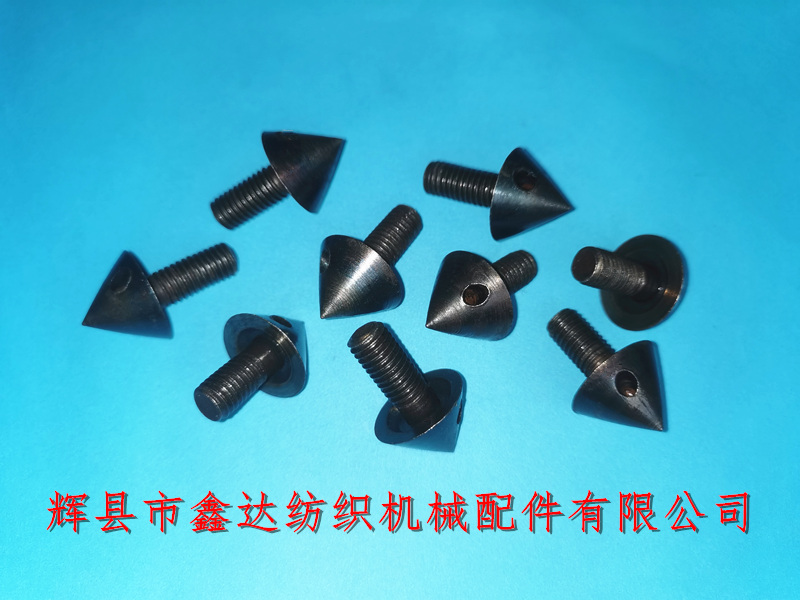

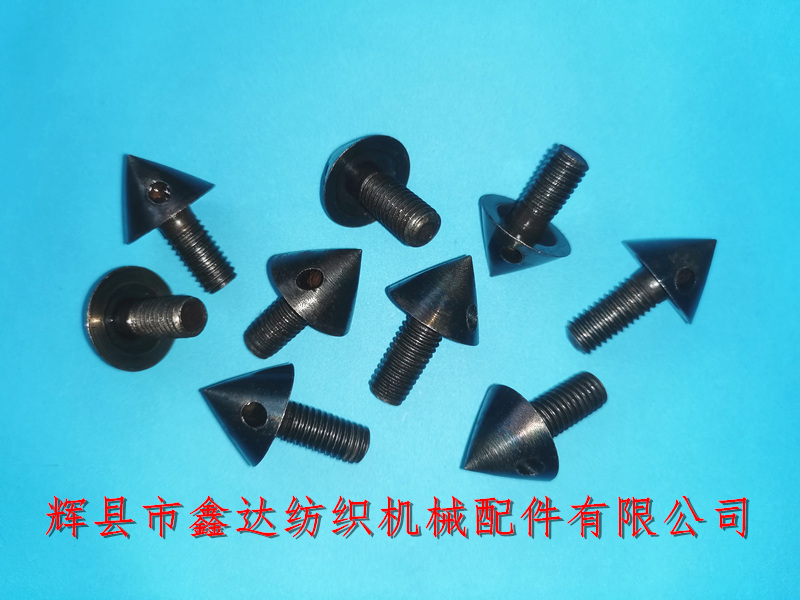

Huixian Xinda Textile Machinery Parts Co., Ltd. provides detachable threaded shuttle tip textile machine shuttle accessories. The external dimensions of this shuttle tip are: total length is 32.5mm, the diameter of the bottom surface of the shuttle tip cone is 20mm, the total height is 14mm, the diameter of the thread is M8, the length is 17mm, the total length of the shuttle tip tail rod is 20mm, and the inner diameter of the bottom surface of the shuttle tip cone is 14mm.
The inner diameter of the waist hole on the inclined surface of the shuttle tip (Detachable Thread Shuttle Tip Textile Parts) is 4mm. It is a tool mount for installing or disassembling the shuttle tip, used for rotating the shuttle tip; The length of the shuttle tip slope is 16.7mm.

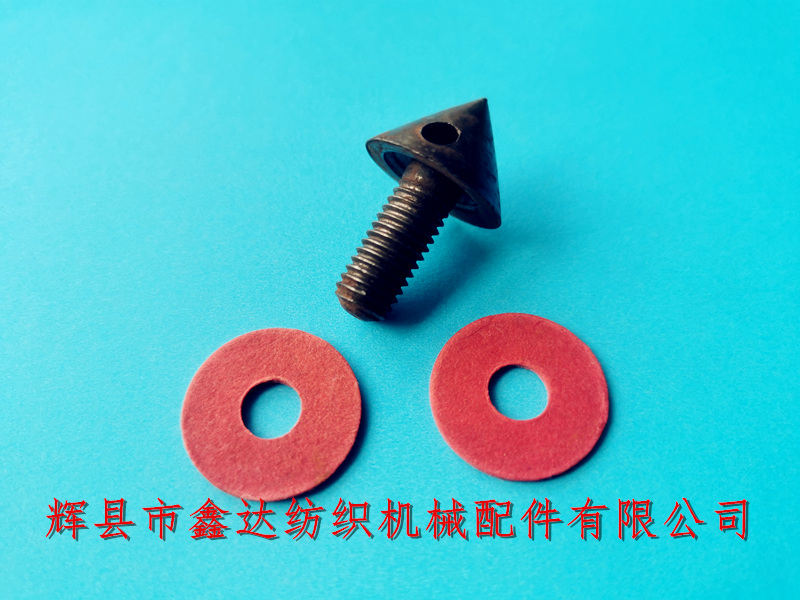

The packaging for shuttle tips is 100 pieces per bag (transparent self sealing bag), and the weight of each shuttle tip is 17 grams. Each shuttle tip is paired with a washer made of red steel paper material, and one shuttle tip is installed on each side of the shuttle.
In addition, shuttle tips have multiple uses. If customers need to purchase this type of shuttle tip (screw shuttle tip, threaded shuttle tip, ordinary shuttle accessories, 1515 shuttle equipment) or other specifications of shuttle tip products, please contact Mr. Yang from our company for consultation. We sincerely welcome everyone's visit and guidance.
