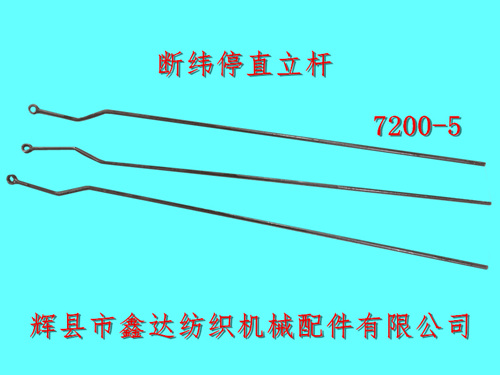

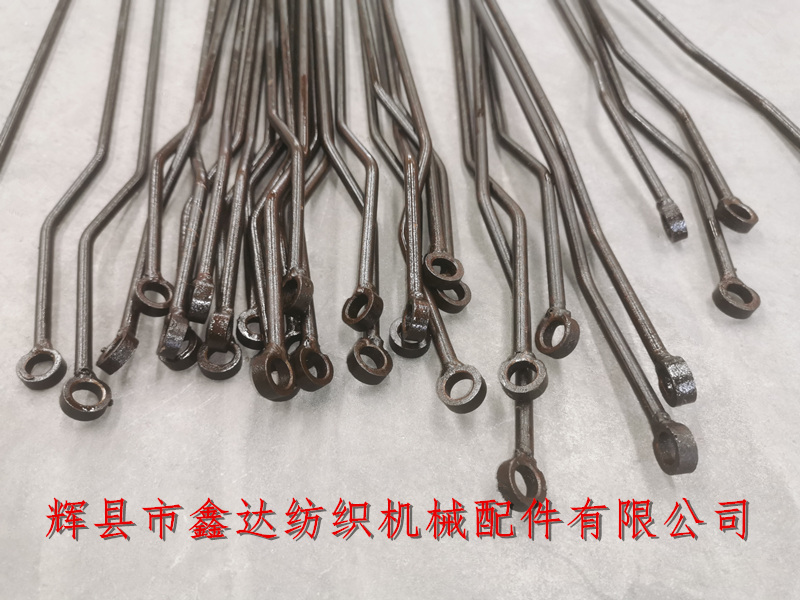

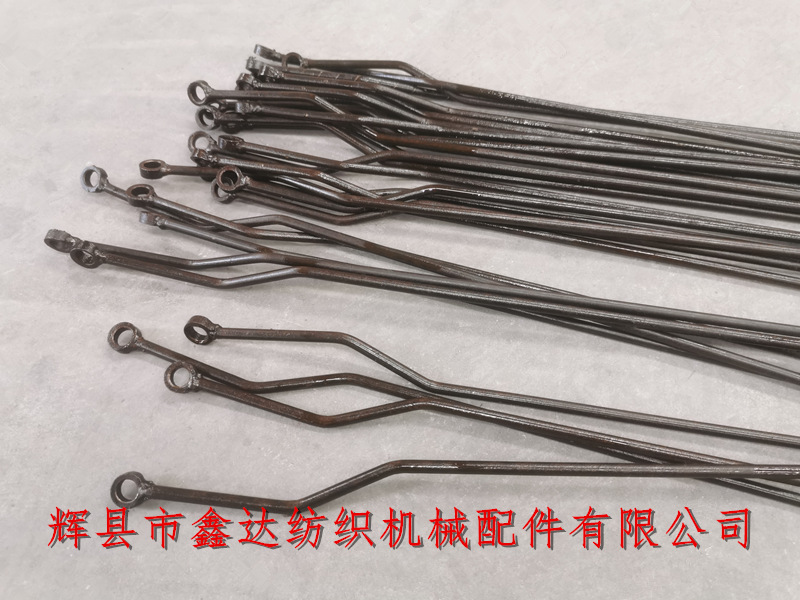

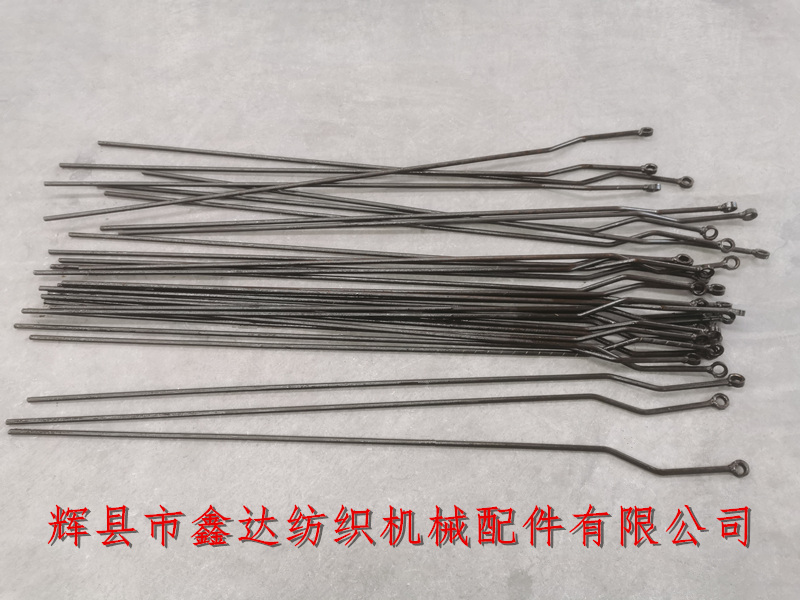

Huixian Xinda Textile Machinery Parts Co., Ltd. provides 7200-5 Upright Rod Joint Weft Stop Pull Rod. The stopping rod 7200A-5 used in the broken weft stop device is composed of a 7222 retaining ring and a rod body 7223, with a total length of 745mm. The length of the straight rod is 61 cm, and the length from the center of the front retaining ring to the rear of the upright rod is 73 cm. The inner diameter of the retaining ring 7222 is 10mm, the outer diameter is 16mm, and the thickness is 6mm.
The front retaining ring of the 7200-5 closing upright rod is connected to the pin (borrowed) of the 7221 casing rocker arm and fixed at the rear of the 7210 casing rocker arm. The main diameter of the pull rod of the 7200-5 weaving machine is 6mm, and the number of pieces used on each weaving machine is 1.
The other end is connected to the retaining ring 7224 (upright rod collar) and threaded into the 7200-8 saddle shaped rod joint. When the weaving machine has broken or no weft, the upright rod for turning off the machine moves downward, triggering the shutdown shaft and rotating it, thereby achieving the shutdown of the weaving machine equipment.
Packaging for 7200-5 warp stop pull rod: 10 pieces/bundle, made of A3 cold drawn material; If you need to purchase textile rods, upright rods, weaving machine accessories, warp stopping accessories, weaving machine rods and other products, please contact our company for consultation.
