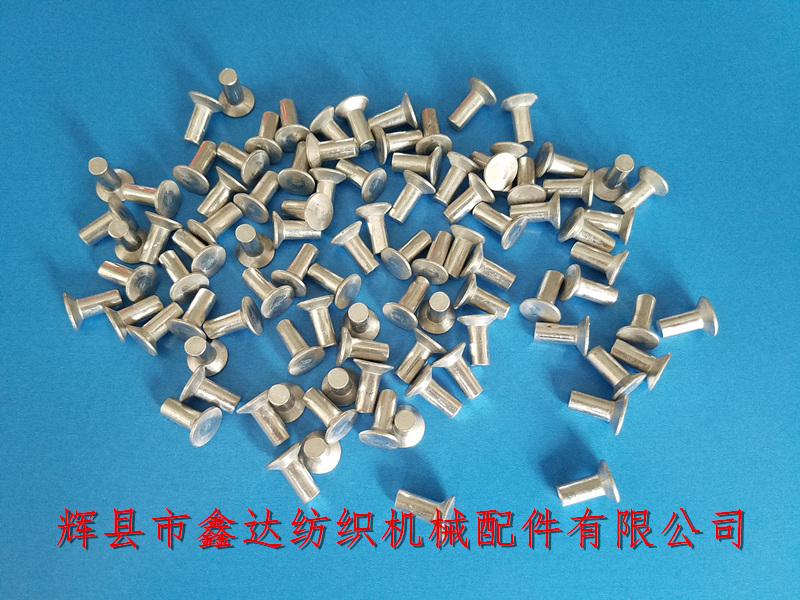

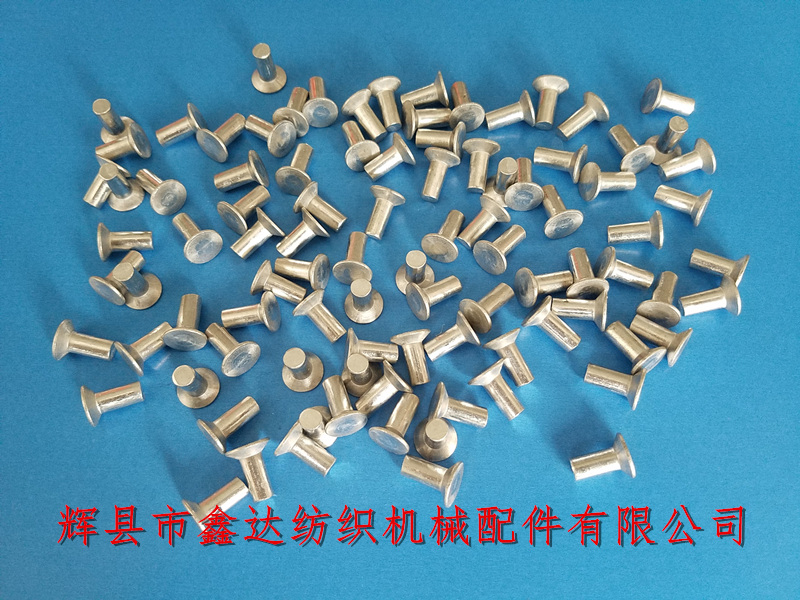

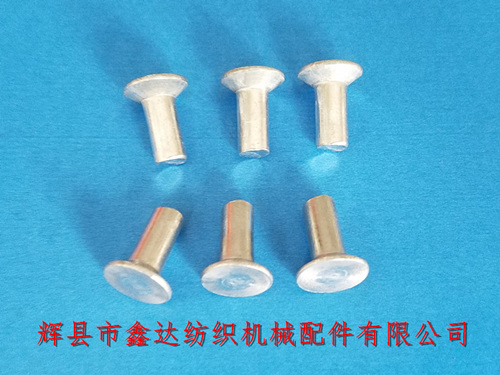

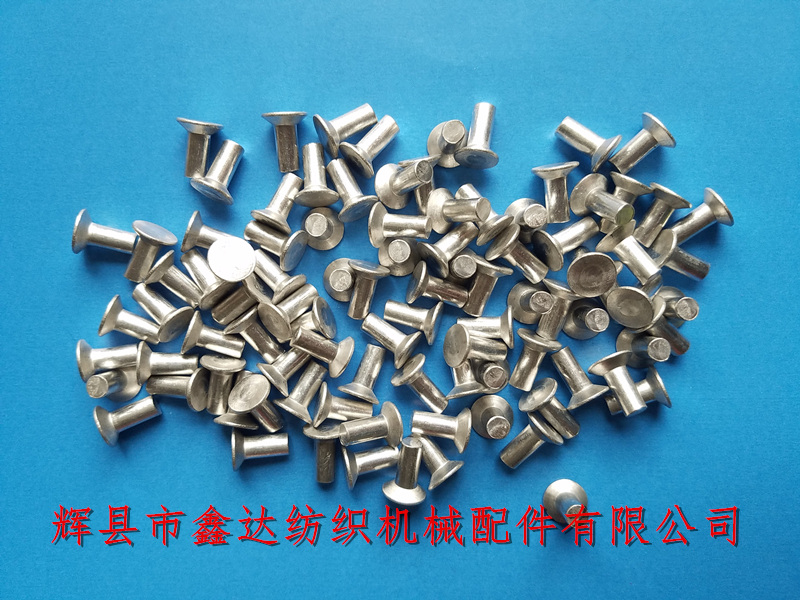

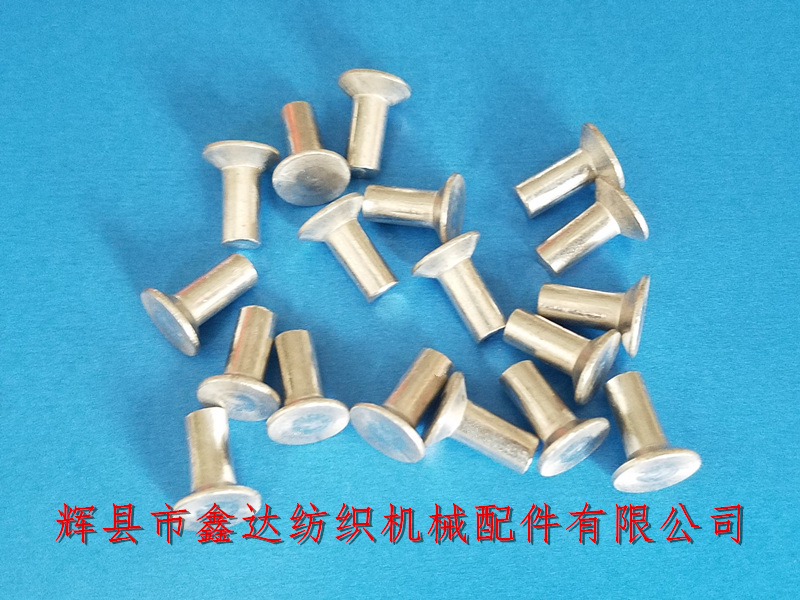

Huixian Xinda Textile Machinery Parts Co., Ltd. provides Brake Steel Strip F00-6 Use Aluminum Rivets, F00-6 brake steel strips for weaving machines of models 1511, 1515, and GA615 with aluminum rivets of 5*12mm, made of aluminum. The tail of the rivet is a flat end with a diameter of 10mm, and the length of the rivet rod is 9.5mm. Each package contains 100 pieces and weighs approximately 80 grams.
When parking the Shuttle Loom(weaving machine), it is necessary to use a brake steel strip friction brake. The inner side of the steel strip is an asbestos copper ribbon F226, which is connected to the steel strip F225 by riveting with aluminum rivets of this specification (5*12mm).
The number of aluminum rivets used for each F00-6 steel strip is 17; The F00-6 brake steel strip is composed of F224 (material A3) steel strip joint, F225B (material 60Si2MnA) steel strip, F227 (material A3) steel strip connecting plate, F226A (material asbestos copper wire) brake strip, and F228 (steel 20) screw.
The F00-6 weaving machine steel strip belongs to the three spindle accessory, which assists in the start and stop of the weaving machine. Each weaving machine uses one steel strip.
If you need to purchase products such as 5*12mm rivets, loom brake steel strips, textile machine brake belts, shuttle textile hardware accessories, etc., please contact Mr. Yang from our company for negotiation. We adhere to the principle of "pragmatic progress, equality and mutual benefit", and sincerely welcome textile production and processing enterprises from all over the world to visit and guide us.
