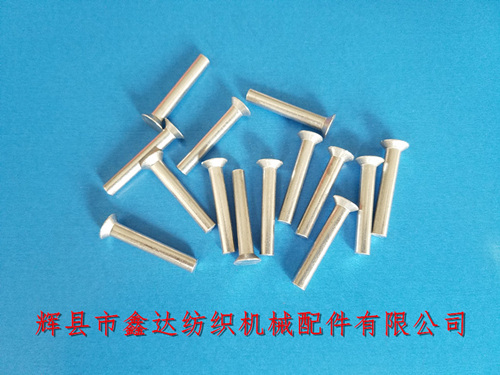

Huixian Xinda Textile Machinery Parts Co., Ltd. provides aluminum rivets 4*25mm for 1511/1515 Loom Clutches. There are F00-5 (1511 type) and 4100-1 (1515 type) shuttle weaving machine clutches with the same appearance and inner hole diameters of 38mm and 40mm, respectively. Textile Hardware Parts The number of aluminum rivets used for fixing brake pads is the same, with 24 PCS rivets used for each clutch.
The external dimensions of the clutch rivet are: the total length is 25mm, the diameter of the rivet rod is 4mm, the length is 23.5mm, and the flat head diameter at the rear is 7.3mm. Due to the low density of aluminum material, it does not rust and is prone to deformation, so it is used as riveting hardware.Aluminum Rivets 4*25mm For 1511 and 1515 loom Clutch.
The color of the 4*25mm aluminum rivets for weaving machine hardware accessories is silver white, and the packaging quantity per package is 100. The weight of a single rivet is about 0.95 grams; Clutch rivets are mainly used to fix asbestos copper wire brake band F203 on the inclined surface of the clutch made of cast iron material.
Regarding other parameter details of aluminum rivets 4*25mm for 1511/1515 weaving machine clutch, please contact Mr. Yang from our company for consultation. If you need to purchase weaving machine rivet accessories or other weaving machine hardware parts, please send an inquiry form to our company and we will reply promptly.
