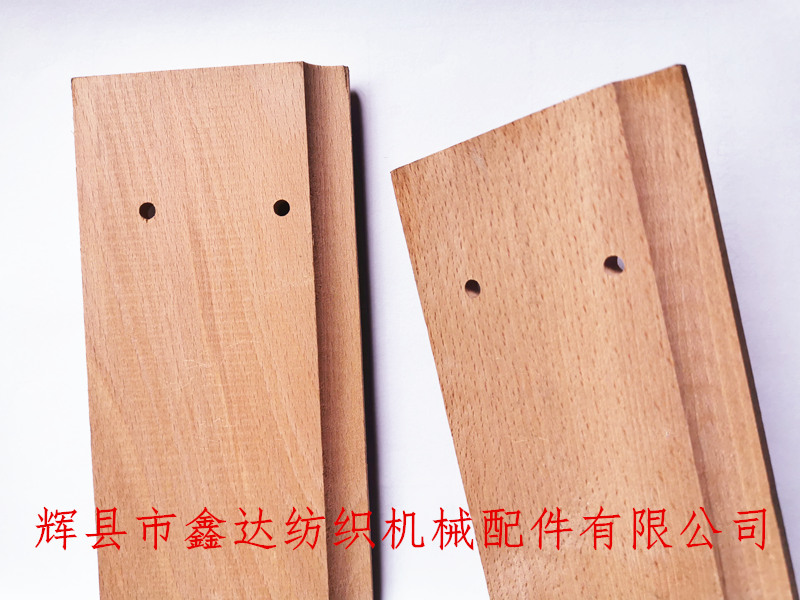

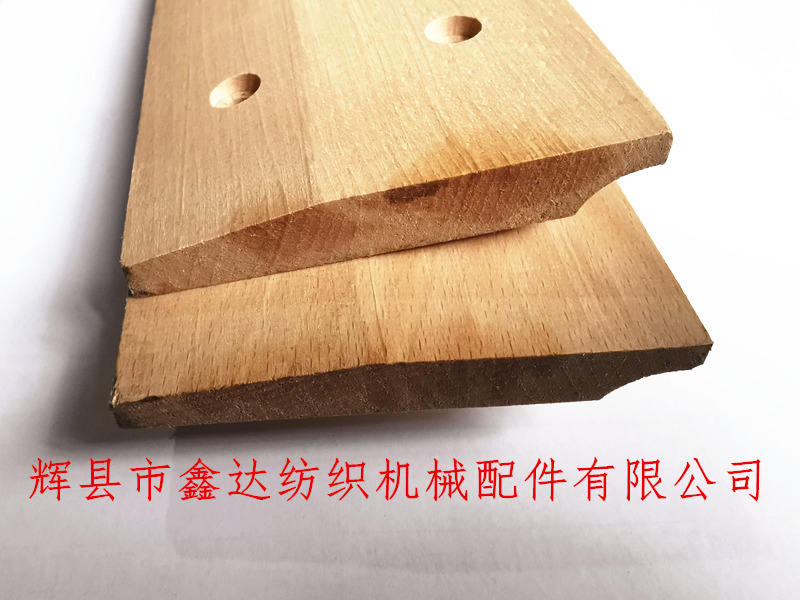

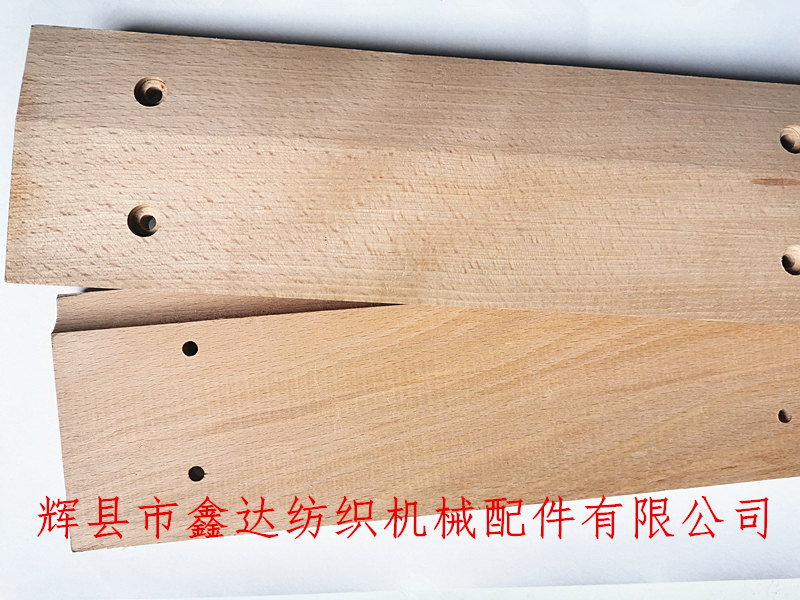

Xinda Textile accessories provides all kinds of shuttle textile wood accessories, wood products - 1515 Shuttle Board Parts (56",63",75",67"), shuttle board width is 84mm, hole spacing is 21.2cm, thickness is 12mm, textile wood accessories - 3310 shuttle board according to the size of the loom door, shape is the same, length is different. The shuttle board 1515 is fixed on the reed frame wood, which is the running track of the shuttle. The arc at the back side of the shuttle board is matched with the reed clamp wood to fix the reed beam. Each loom uses one piece.
The fixing hole of the wood screw on the shuttle board is M6, and the diameter of the outer edge is 10 mm. For 56 inch (1350mm) loom, the length of shuttle board is 1423mm; for 63 inch (1500mm) loom, the length of shuttle board is 1597mm; for 67 inch (1600mm) loom, the length of shuttle board is 1699mm; for 75 inch loom, the length of shuttle board is 1902mm.

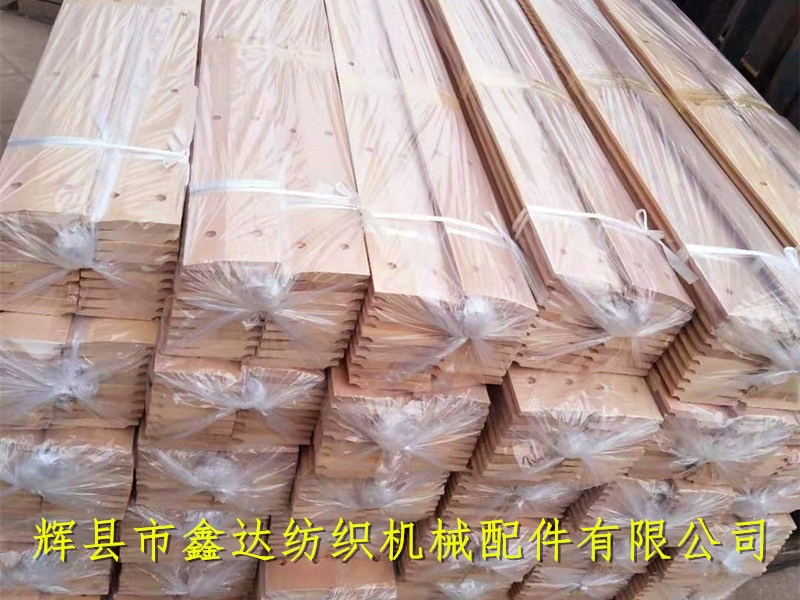

There are 20 shuttle boards in each bundle. The upper plane of the shuttle board is not allowed to be damaged. The plane wear is less than 0.1mm. The thickness of the contact with the reed is more than 1.6mm, the thickness is less than 5mm. The spacing between the triangle wood 3200-3 and the reed is 7mm (subject to the middle of the shuttle board). The two ends are 0.15mm higher than the bottom plate of the shuttle box (3307x3308), the allowable error is 0.05mm, and the two ends protrude 0.8mm from the bottom plate of the shuttle box. The fixed wood screw of shuttle Board shall be 1.6mm lower than the surface. The screw hole shall be polished and leveled.
There is an angle between the inclined plane of shuttle board and the overall inclined angle of reed frame wood after installation to ensure 86.5 degrees. Our company provides textile wood products and is a wholesale manufacturer of weaving machine wood accessories.
Purchase market of shuttle board, price information of 1515 shuttle board, customized conditions of textile wood accessories, wholesale of textile shuttle board equipment - produced by Huixian Xinda Textile Machinery Accessories Co., Ltd. Welcome to contact us for cooperation!
