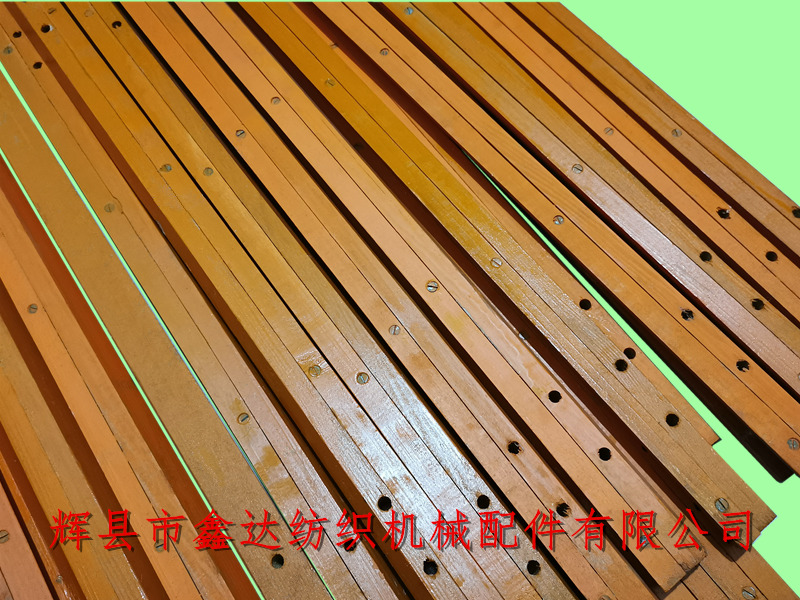

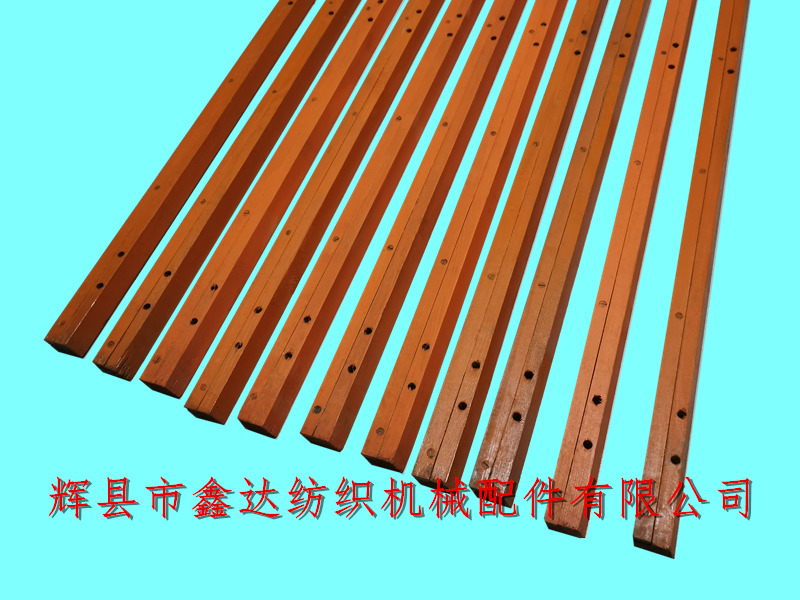

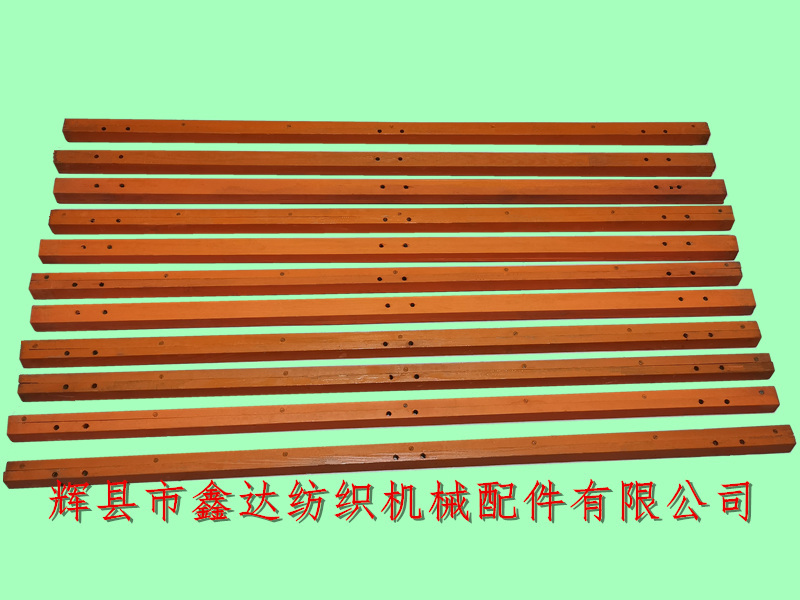

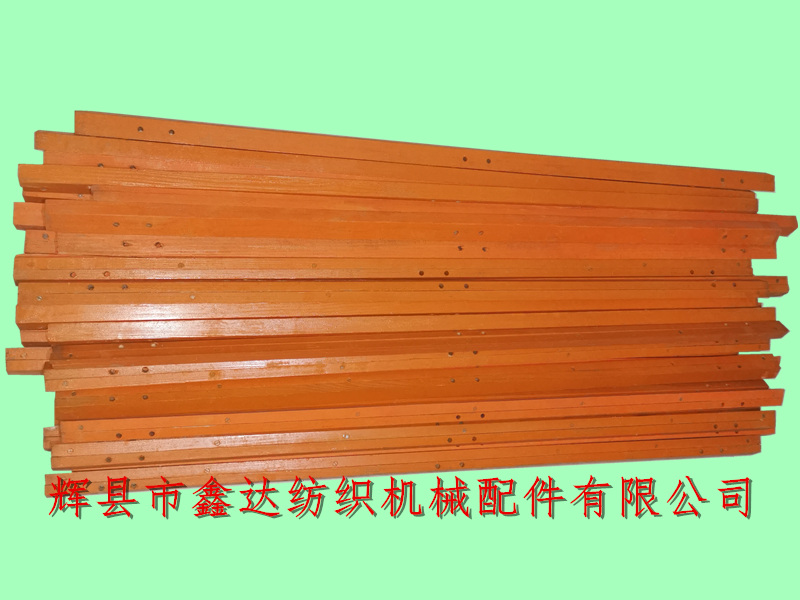

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides 1511 loom wooden part Q00-2 reed clamp triangular wood assembly, Reed Clamp Triangular Wood Parts, which is composed of Q11 reed clamp wood strip and k209 triangular wood cushion skin. It has a length of 108.5cm, a width of 3cm and a thickness of 2.1cm. There is a gap of 1.6mm from the bottom of reed clamp triangular wood Q00-2 to reed Q1, with an allowable difference of - 0.8mm. The curve of reed clamp Q00-2 is concave by 1.6mm, and the allowable difference is 0.1mm (check with setting gauge and micrometer).
The reed clamp in the triangular reed clamp assembly of textile wood piece Q00-2 is made of larch, with an inclination angle of 86.5 ° on both sides. It is fixed on the supporting feet of K24 and K25 reed clamp shaft, clamped with a double hole K206 sizing block, and the K209 skin contacts and rubs with the lower beam of the loom reed.
1511 44 inch reed clamp has three groups of holes, two holes in each group, and a K206 sizing block is fixed. The number of wood screws used for connection is 7 (as shown in the figure below). Under normal circumstances, the reed clamp strip is divided into left-hand and right-hand, and the number used for each loom is 1.
Loom accessories, reed clamp,Reed Clamp Triangular Wood,Textile Wooden Parts and textile wood products accessories are widely used on shuttle looms. They are mainly used around reed, reed cap, reed frame wood and shuttle box. The wooden parts used in 1511 loom generally belong to vulnerable parts.
If textile mills, cotton mills and weaving mills in various cities need to purchase products such as Q00-2 reed clamp triangular wood components of 1511 loom, please provide detailed parameters and requirements of reed clamp triangular wood, reed clamp wood and loom wood. Our company will try our best to meet your needs.
