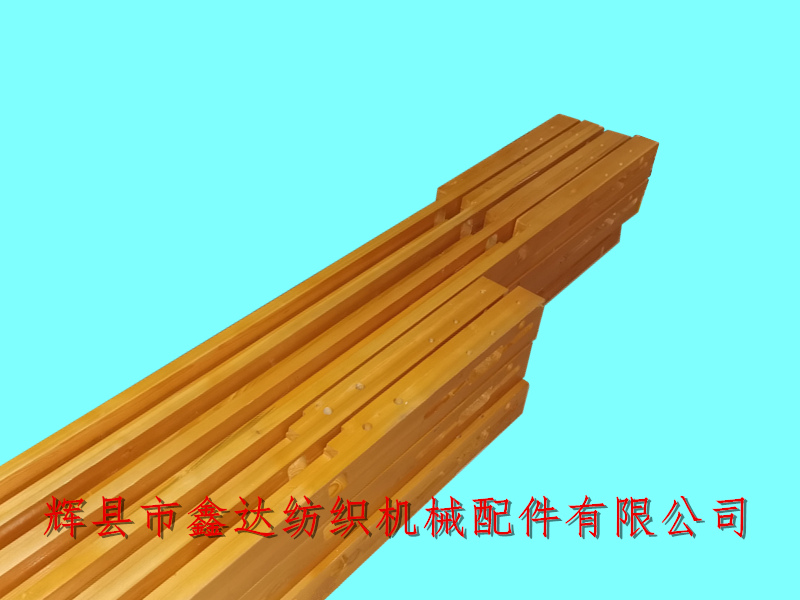

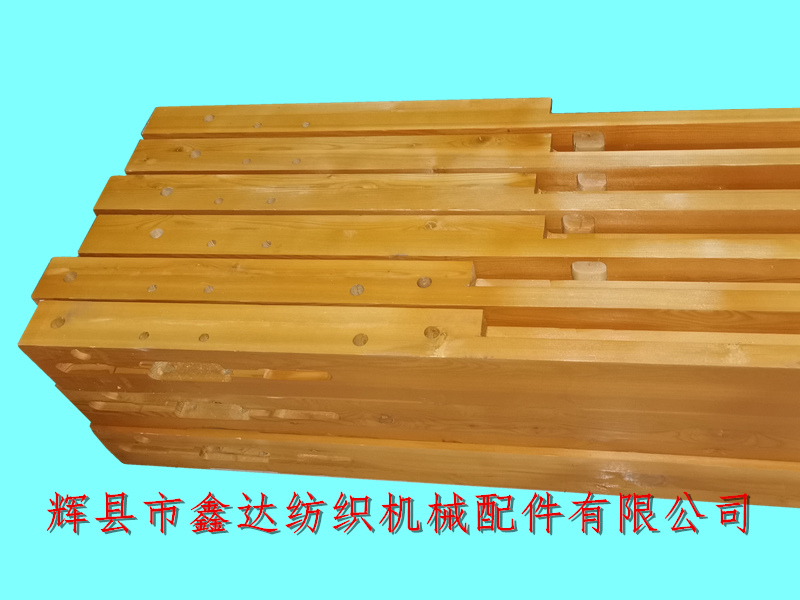

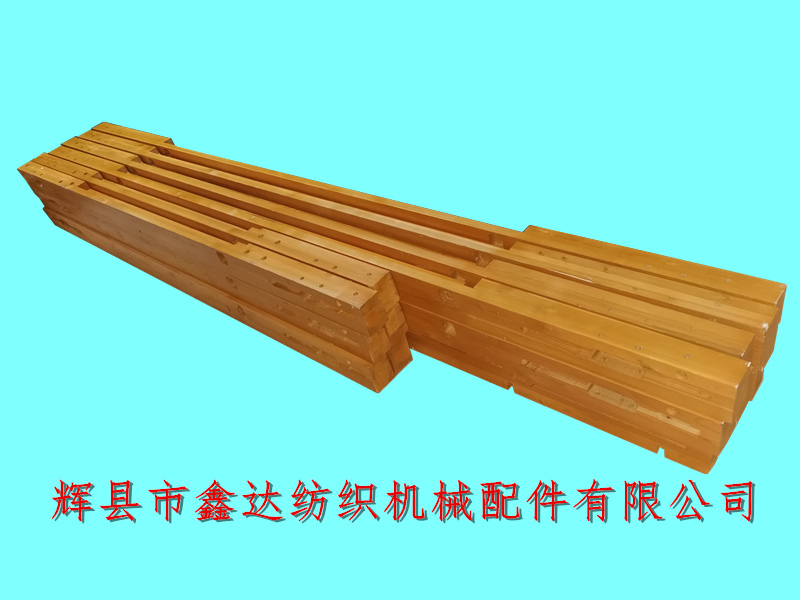

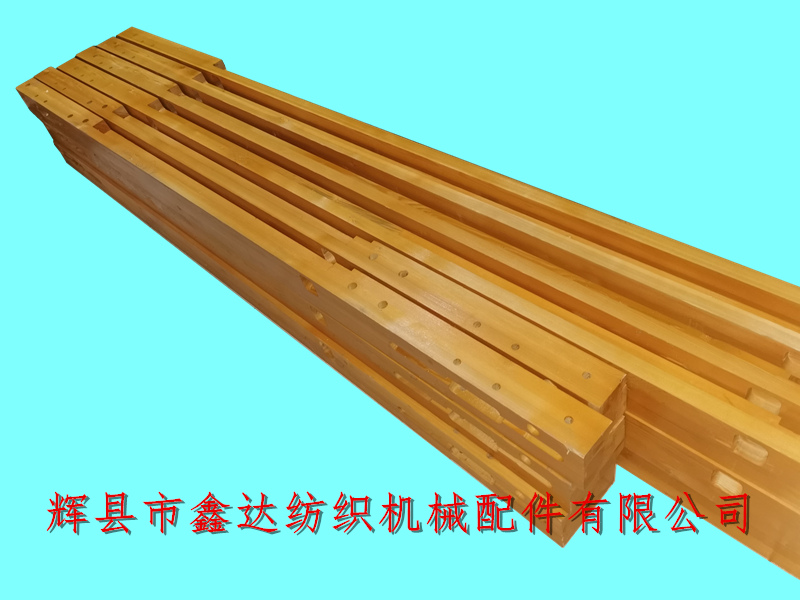

Huixian Xinda Textile Machinery Parts Co., Ltd. has provided shuttle machine parts for a long time, 1511 and 1515 looms, dragon looms, wooden reed beds (44 inches, 56 inches, 75 inches), 1511 looms, dragon looms, part number Q1,42 inches, dragon looms, total length 2184 mm (100 cm loom); The total length of the 44 inch dragon is 2235mm (105cm loom); 46 inch dragon length is 2286mm (110cm loom); The length of the 50 inch loom dragon is 2388 mm (120 cm loom); The length of 52 inch loom reed frame wood is 2438mm (125cm loom).
Installation requirements: The edge arc of the loom dragon (reed frame wood) is 4mm convex, and the allowable difference is 0.1mm. The top arc of Q1 is concave for 4mm, and the allowable difference is 0.1mm (check with the calibration gauge and micrometer); The depression at the contact point between Q1 and reed clamp shaft middle leg K26, front brake rail outer leg K61, control wood leg K28, reed seat sizing block K205 and sizing block K83 is generally not more than 1.6mm, and the depression at the contact point with reed seat legs K1 and K2 is not more than 0.8mm.
The part number of 1515 reed frame wood is 3222. The loom dragon (reed bed) is divided into left and right sides. The material is larch. The height of the left and right sides is equal. The surface is 86% of the K1 and K2 reed foot ? The included angle of °. The total length of the 56 inch dragon is 2634mm; The length of 59 inch loom reed frame wood is 2706mm; The length of the 63 inch dragon is 2807mm; The length of the 67 inch loom dragon is 2909mm; The length of the 75 inch loom dragon is 3112mm.
The big dragon of the hand shuttle loom can use the same shuttle box back plate on both sides (instead of lifting the back plate). As shown in the figure above, the installation holes of the double eyes sliding box are reserved on both sides. The width of the big dragon of the loom is 107.5mm, and the thickness of its two ends: 7.05cm at the rear and 7.65cm at the front (thick at the front and thin at the back). Packaging of wooden reed bed (44 inch, 56 inch, 75 inch) of weaving machine dragon: film, 2 pieces per bundle, minimum order quantity of special specifications: 10 pieces.
The left and right hands of the loom dragon are distinguished by the slot cutting of the weft fork (J32) and the installation position of the reed. The sketch book shows the right hand, which is used by the right hand loom. On the contrary, the left hand loom is the opposite of the sketch. If textile enterprises and weaving manufacturers need to purchase or customize textile wood products such as loom dragon, textile reed frame wood, textile reed bed, please contact Mr. Yang of Xinda Textile Accessories to discuss cooperation matters!
