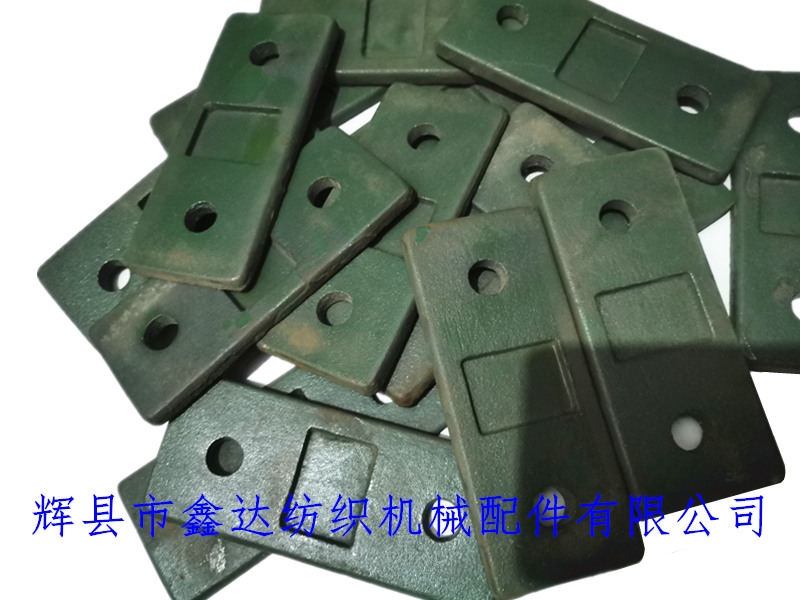

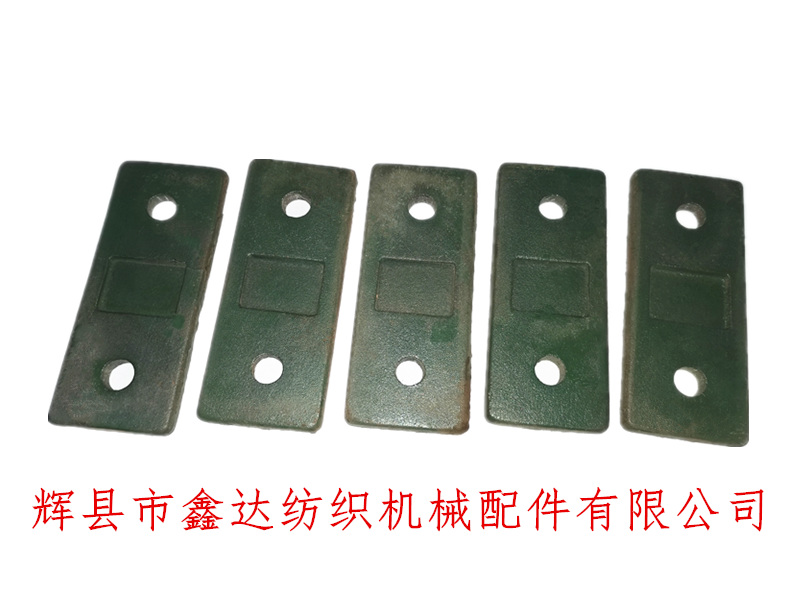

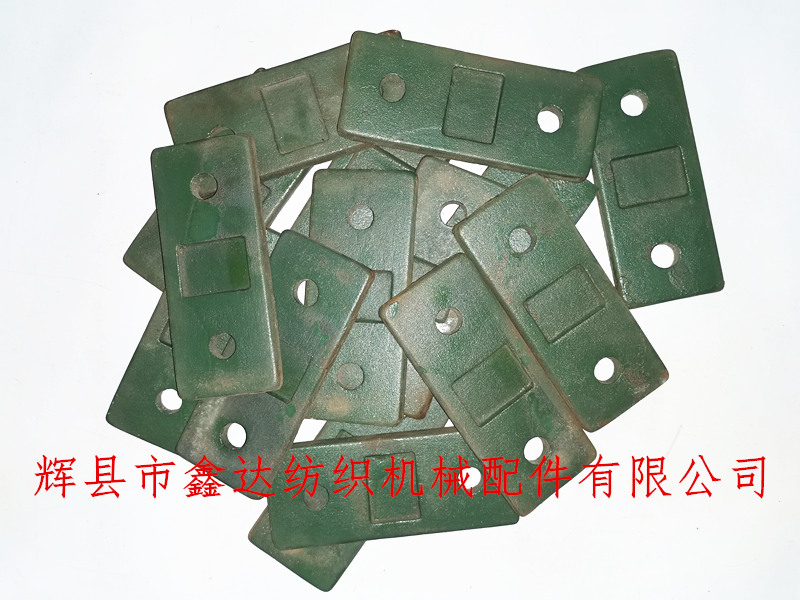

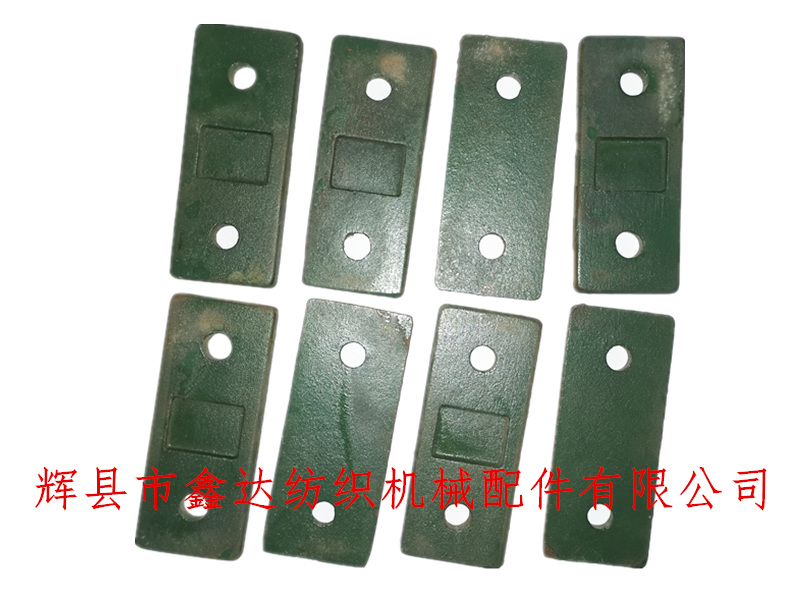

Xinda Textile machinery accessories specializes in providing accessories for K83(Washer Plate With Hooker For Catch Of Bend Slider Bowl Lever) reed frame wood block (switch side) of old-fashioned loom, with pad iron length of 133mm, width of 56mm, circular hole diameter of 13mm, and center distance between two holes of 83.4mm. The product is used to fix on the outside of reed frame wood of shuttle loom, fix and press the reed frame wood, with the function of preventing reed frame wood from cracking.
The middle groove has a length of 36.5mm and a width of 26mm. The sizing block can also be broken from the middle as two sizing blocks.
The product (K83 Washer Plate With Hooker For Catch Of Bend Slider Bowl Lever) is fixed on the switch side of the loom by left and right hands, color: dark green, material: HT15-33 gray iron. K205 sizing block is used at shuttle changing side.
The single weight of the reed frame wood block iron of the loom is about 0.35kg. Each loom uses one. The 1515 type is connected with 3222c; the GA615 type is connected with 3106a; the 1511 type is connected with Q1 dragon.
K83 washer plate processing, weaving machine accessories wholesale, reed frame wood accessories manufacturer, weaving machine K83 reed frame wood seat iron (switch side) accessories - Huixian Xinda Textile Accessories Co., Ltd.
