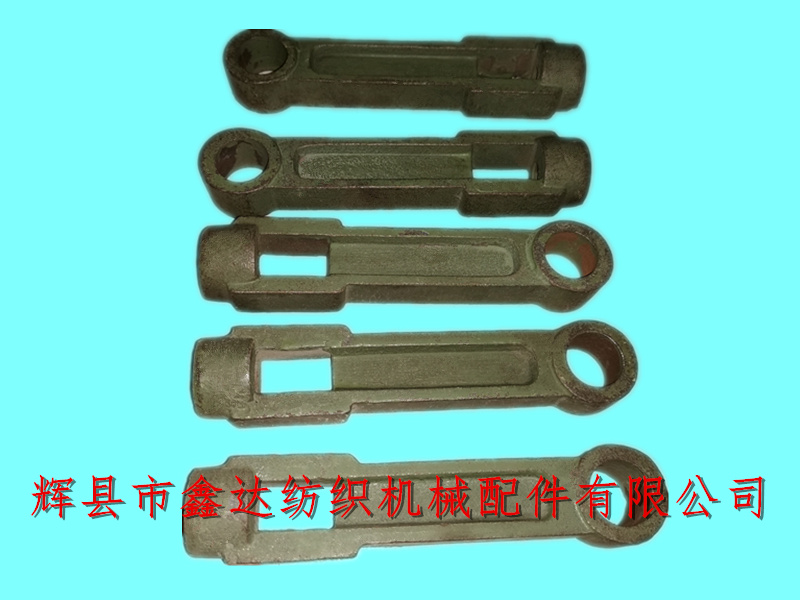

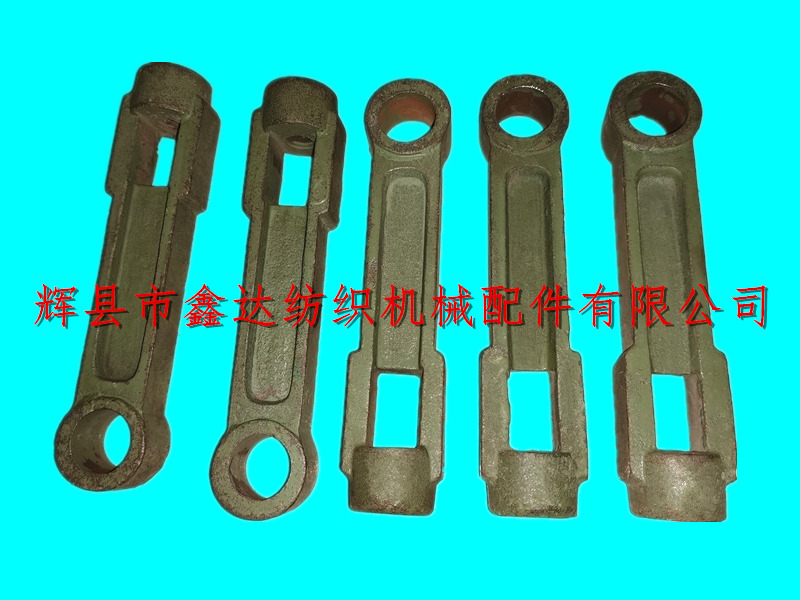

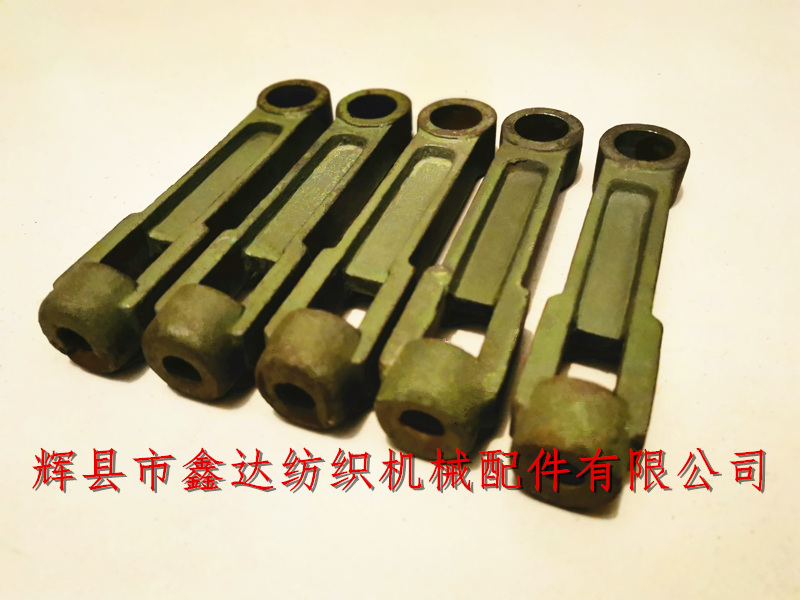

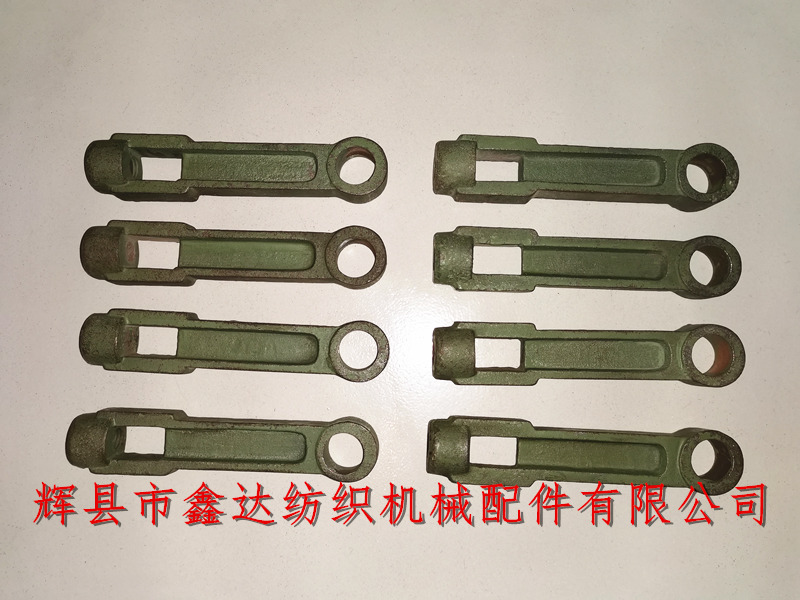

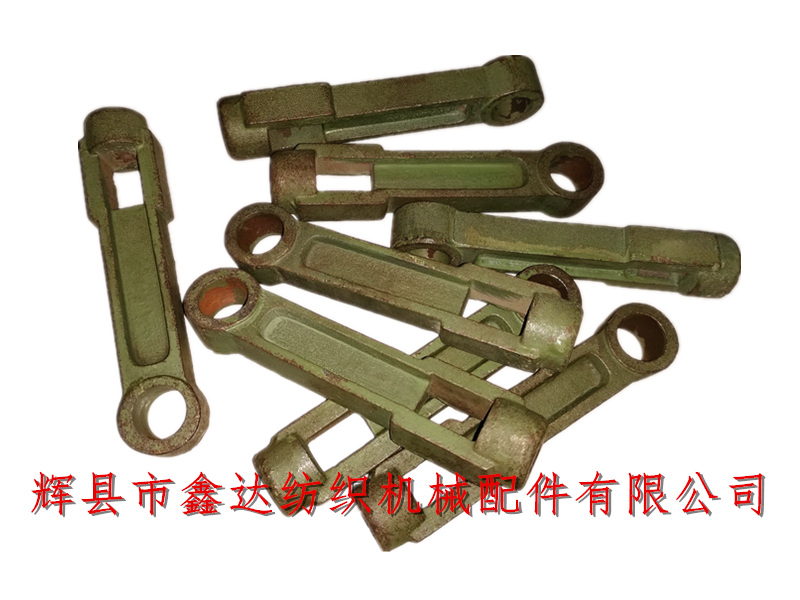

The starting link of f212 loom is mainly used for various types of clutch and shuttle looms. The diameter of the fixed shaft hole is 20 mm. The other end (connected with the starting link) has a thread diameter of M12, a total length of 151.5 mm, a width of 3.1 cm, and a rectangular hole of 25 mm * 15.5 mm. It can be used for the control of 1515 and 1511 old clutch looms.
Textile machinery accessories - f212 loom starting pull rod is 17mm thick, made of HT15-33, which is connected with f214 mandrel and F210 pull rod of the loom. Each loom uses 1 piece to control clutch contact.
The starting connecting rod f212b is an old-fashioned cast iron accessory of textile machinery. It has 20 pieces for each string and 20 pieces for ordering. Pull the switch handle to the driving position. There should be a slight gap (about 0.5mm) between a washer on the inner side of the starting connecting rod F210 and the starting arm F206, so that the elastic force of the starting spring f211 will all act on the pulley f00-4, 0200-1 or 4100-2
As for the replacement of f212 of GA615 textile machinery accessories, the overall length of g1515-0209 is the same as f212, but the 0209 is designed with a bent handle to ensure that the fit clearance between it and f214 of starting connecting rod mandrel is less than 0.40mm.
Starting spring f211, starting arm and switch arm mandrel f209, switch arm bracket F215 (left and right), F220 switch handle seat and other accessories constitute the clutch control part of the loom.Loom f212, starting link,textile machinery parts.
The f212 accessories of the loom can also be used as the connection and conversion parts of other mechanical equipment. Tensile energy, angle correction and other index parameters meet the industry standard. Welcome customers all over the world to consult and purchase accessories such as loom starting bar, old-fashioned shuttle bar, etc.
