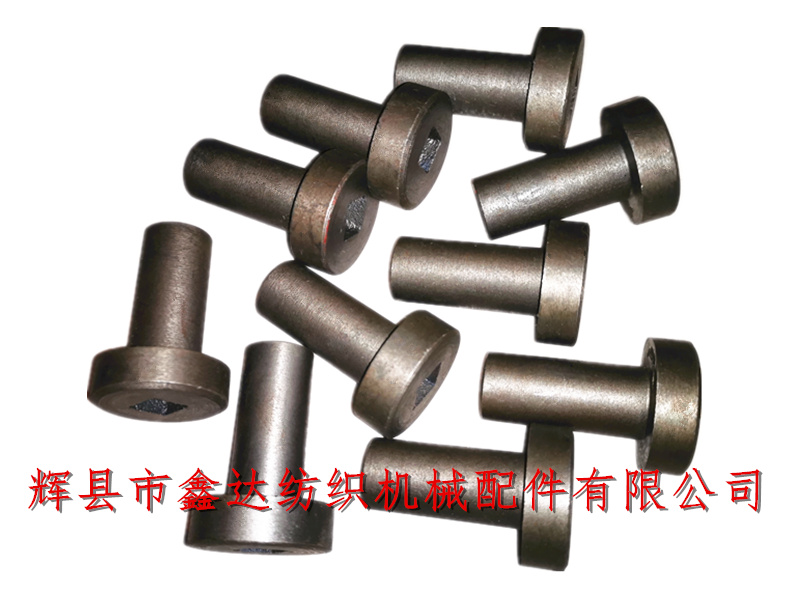

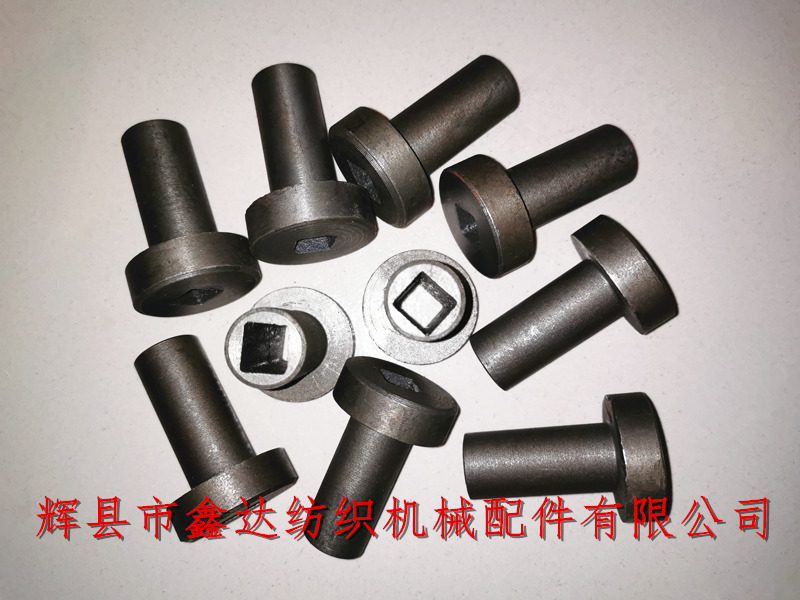

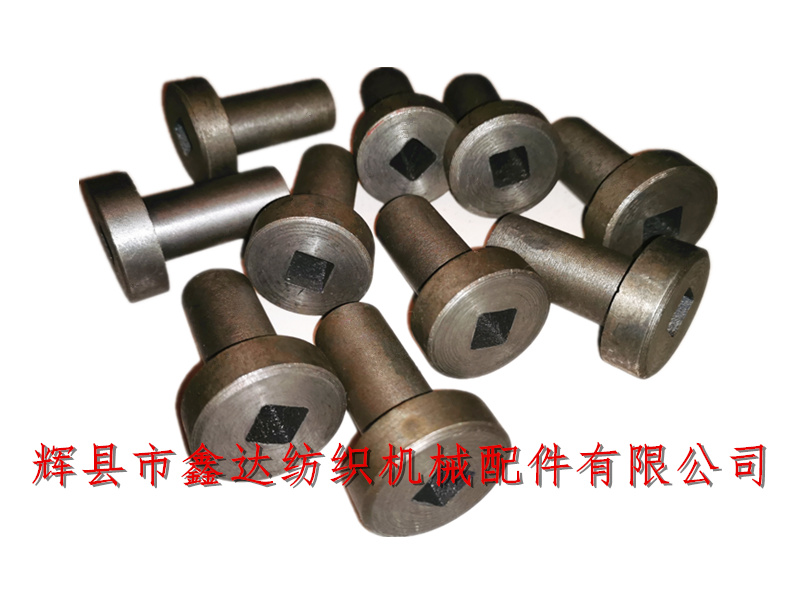

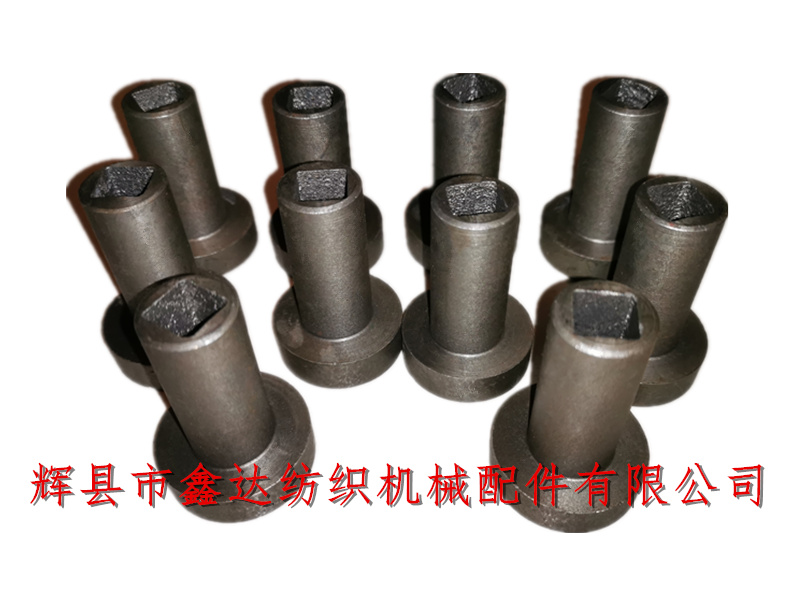

Weaving machine take-up accessories L3 textile sleeve and L4 take-up rod are connected. The outer diameter of metric weaving machine L3 sleeve is 20 mm, the base diameter of textile sleeve is 36 mm, the square hole is 12 mm * 11 mm, and the total height is 5.45 cm. The material is gray iron, which is installed on the weaving machine wall panel P2 or 4302. Each weaving machine uses 1 piece, and the gap between sleeve and take-up rod L4 is less than 0.6 mm.
The thickness of the round table at the base of the sleeve is 11mm. The take-up hook L5, the take-up rod L4 and the take-up rod sleeve L3 are important components of the take-up device of the loom. The hook head of the take-up hook is measured with a long plate. If the wear is abnormal, it must be corrected or replaced.Loom Take-up Accessories L3 Textile Sleeve,loom Coiling accessories, loom coiling, textile sleeve.
The gap between the take-up hook L5 and the take-up bolt L37 is less than 0.4mm, and the height of the hook head is less than 3mm. When the bending shaft of the loom is in the back dead center, the distance between the take-up hook and the take-up hook L68 is three and a half teeth (the position of the take-up finger L2 in the groove L1 of the guide channel foot is moderate).
Note: the coiling time is 165-170 mm (when the bending shaft is turned from the back dead center to the 45 ° ahead of the upper center, the coiling holding hook L68 begins to fall into the tooth root of the coiling saw gear L7, and the distance between the reed and the chest beam is measured at the switch side with a ruler). The weight of coiler sleeve L3 (metric system) is about 0.11kg, and the diameter of other models of coiler sleeve (British system) provided by individual loom manufacturers is 22mm. The mechanic shall check carefully during installation.
If you want to buy old loom take-up accessories, textile sleeve accessories, shuttle loom to prevent reverse accessories and other products, you can contact our company, we sincerely welcome your presence and guidance.
