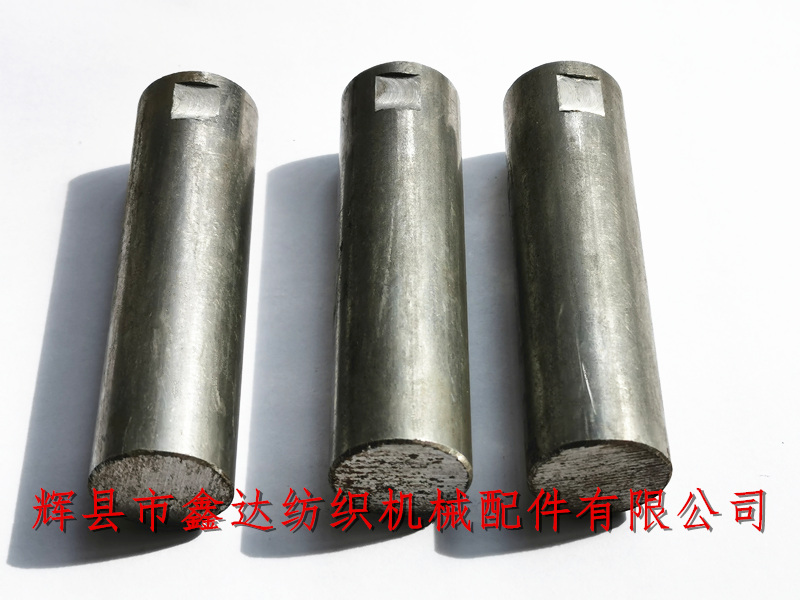

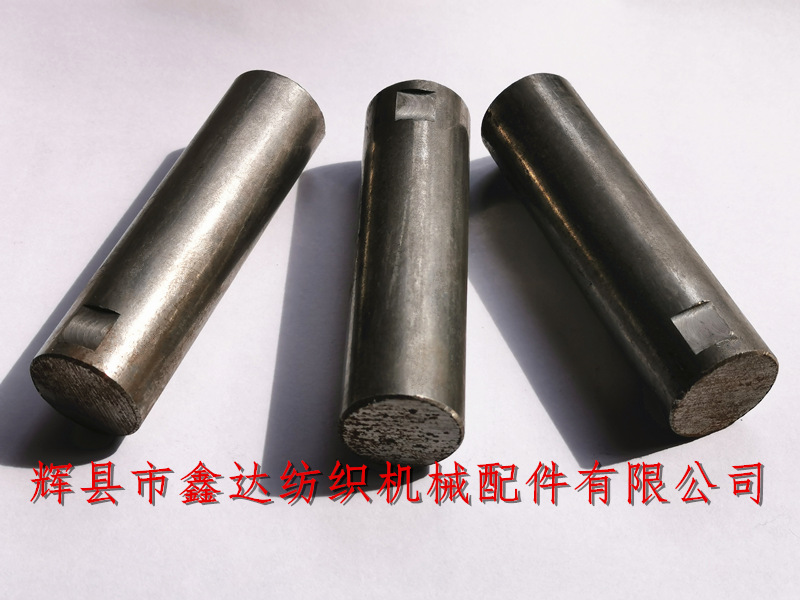

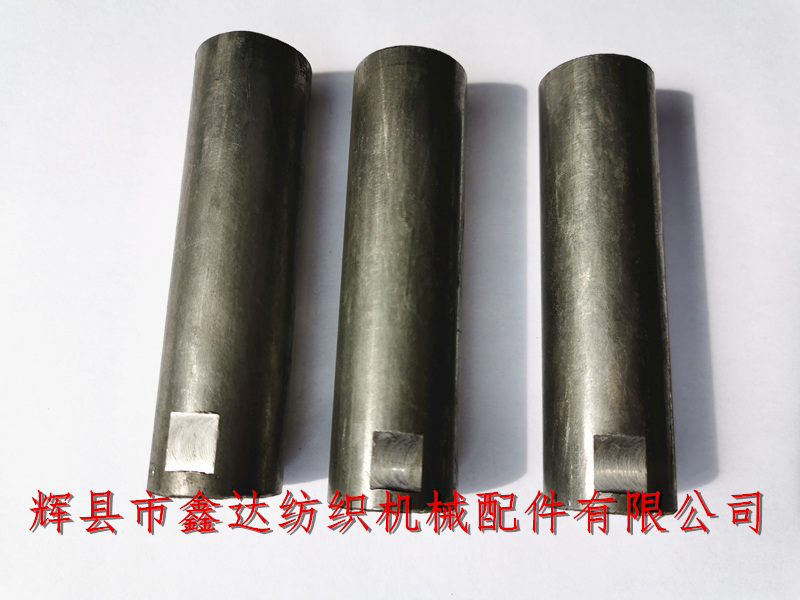

We provide K81T Loom Connecting Rod Pin Spare Parts, 91mm in length and 25mm in shaft diameter. The handlebar tail shaft K81 is fixed on the ear of the reed foot. The scope of use covers 1511, 1515 and GA615 old-fashioned shuttle looms of various door frames and GA74 series rapier looms. The material is 45 × steel, and one end of the handlebar has the jacking platform processed by the Machine.
The cross section of the handlebar of k81t loom is neat and the error is small. Two handlebars are used for each loom, i.e. one on the switch side and one on the shuttle changing side. The weight of a single handlebar is about 0.28kg.
3101 reed feet are installed on the side of the shuttle shed. After fixing the K81 handle bolt, it is necessary to move the hand wheel of the loom to bend the crank shaft forward to check whether the movement between the handle and K81 is smooth.
Hand holding bolt (Connecting Rod Pin) is fixed with square head flat end set screw. If you need to buy loom hand holding, loom accessories, hand holding bolt, please contact us.
