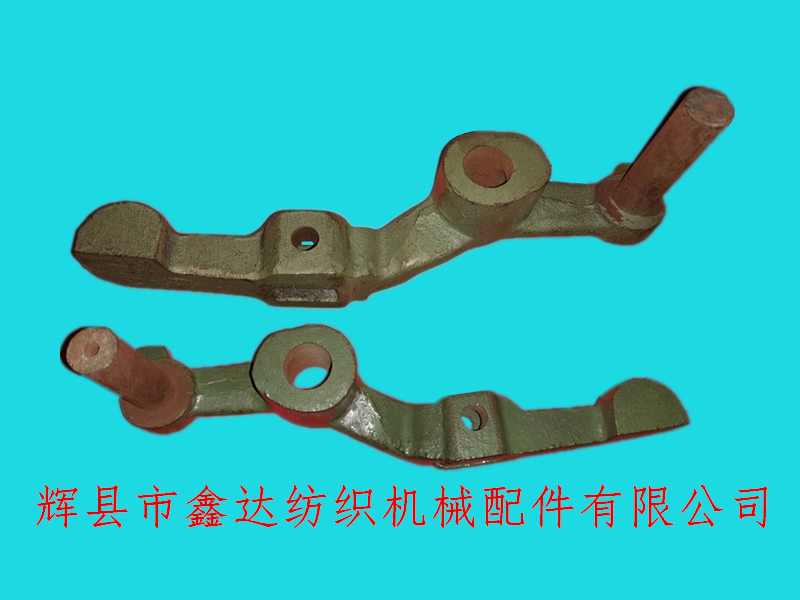

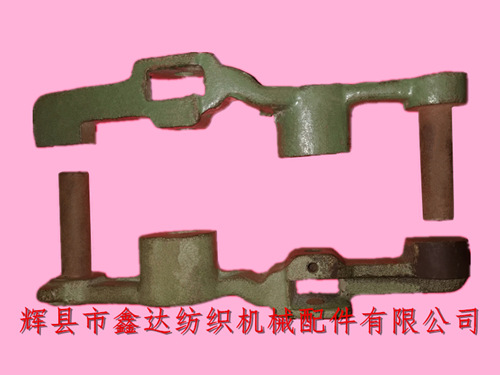

Xinda Textile machinery accessories provides GA611-K10 rotor rod loom spare parts, single beam old loom parts, GA611 old loom accessories and textile machine rotor rod with stable quality. K10 rotor rod is made of gray pig iron, and the accessories are divided into left hand L and right hand R. each loom uses one K10 rotor rod, which is a GA611 accessory or 1511 loom part.
The total length of K10 rotor rod is 22.9cm, the diameter of rotor shaft is 16mm, and the length is 57.5mm. K84 rotor and K68 shuttle rod are installed on the rotor shaft. The diameter of K10 intermediate reed clamp shaft hole is 18mm.
The rear end of the rotor rod of K10 curved sliding plate is 4mm above and below the reed clamp shaft K1 (based on the installation of reed), and the outer side of the rotor rod K10 is roughly flush with the external measurement of the reed foot K1.

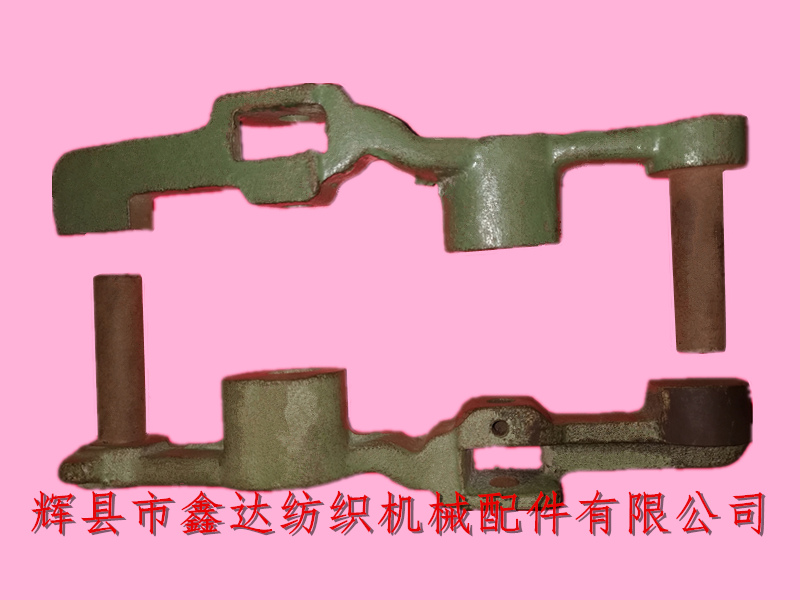

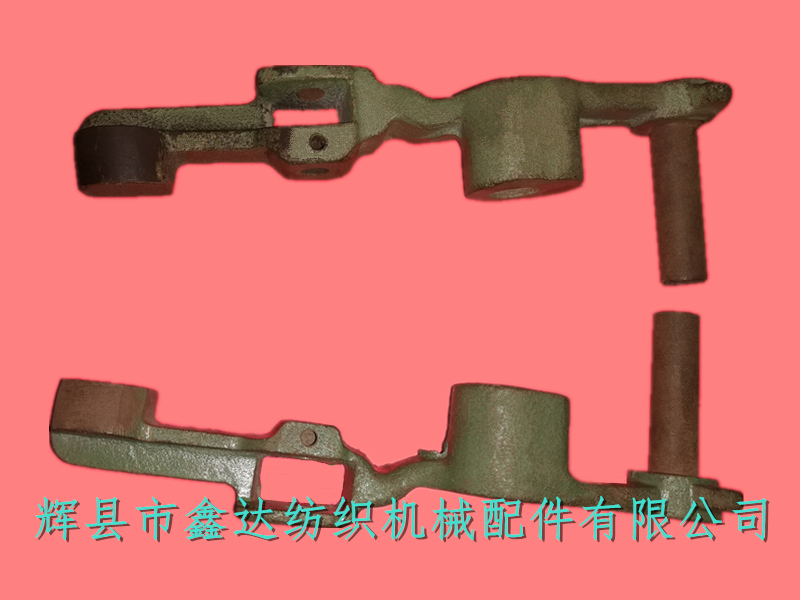

The weight of a single K10 rotor rod is about 0.8kg. In the above figure, the right hand R and the left hand L are in order from top to bottom. Ga611 loom is improved on the basis of 1511 loom and uses most of the accessories of 1511. If textile mills need to purchase this product, please contact Mr. Yang of our company.
