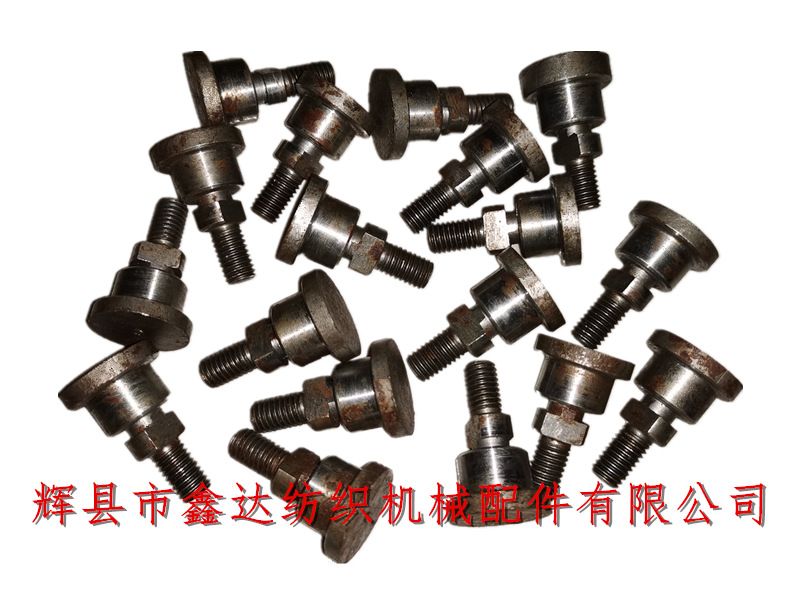

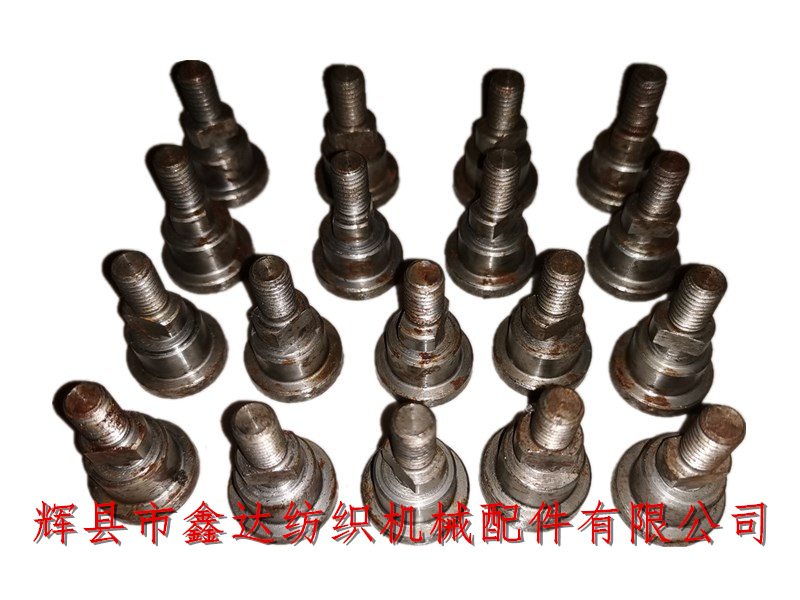

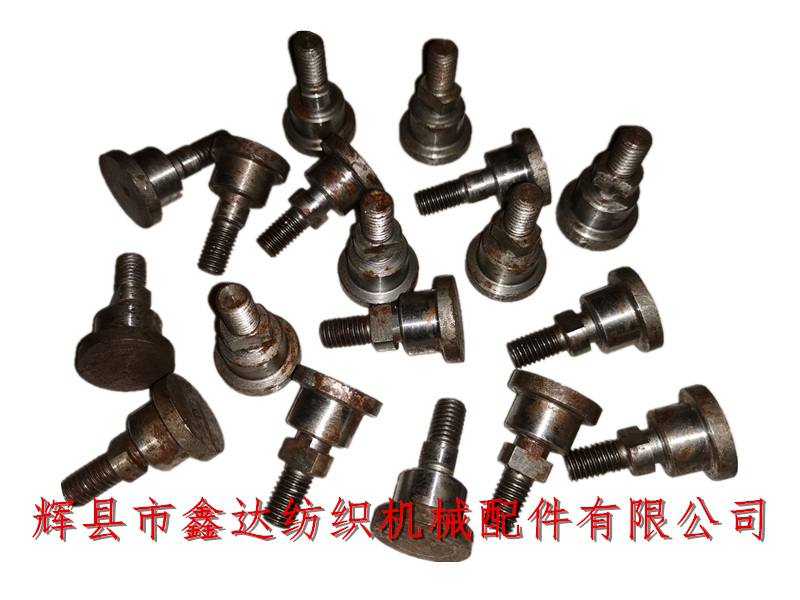

The O20 warp break stop rod mandrel of China power loom is a warp stop device accessory of shuttle loom models 1511, 1515 and GA615. It is made of A3 and is connected with 3600-2 (O00-3 warp break stop rod) and i15 (V-shaped rod). The total length of the loom mandrel is 35mm, the diameter of the shaft body is 15.8mm, the diameter of the tail round table is 22mm, the thickness is 4mm, the thickness of the platform is 7.7mm and the diameter is 12mm, One for each loom.

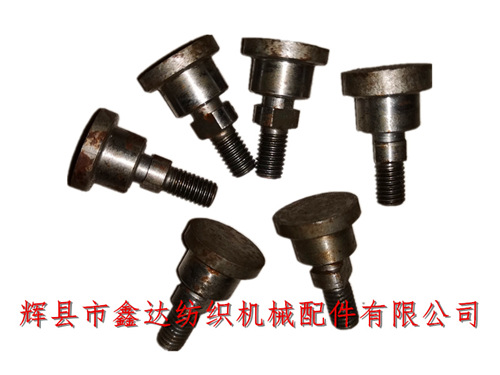

The above figure is the side view of Power loom part-O20, which is fixed in the chute of the V-shaped rod after breaking the retaining ring of the warp stop rod. When the installation position of the warp break motion cam O13 is incorrect, the tension of the combined rod spring O42 is too strong, the abrasion between the hole bolts at the upper end of the stop rod connecting rod O18 is too much, and the abrasion between the fork angle pivot O8 and the fork angle pivot cap is too much, It will cause the loom in Southeast China to stop after warp breaking.
The parameters of the broken warp stop rod mandrel O20 provided by us are subject to the physical measurement results. They are different from those marked on the loom sketch book, which involves the difference of tolerance fit and the readjustment of reducing material consumption, so as not to affect the installation and use on the loom.
Xinda Textile Machinery Accessories Co., Ltd. provides various shuttle loom parts, textile stop rod, loom mandrel, warp break stop rod and other products, including warp break auto stop parts of loom, weft break auto stop parts, coiling device parts, internal and external let off parts, shuttle throwing device parts, automatic shuttle change and shuttle change induction parts. If necessary Loom Parts, Stop Bar, Loom Mandrel, please contact our company - Xinda Textile accessories.
