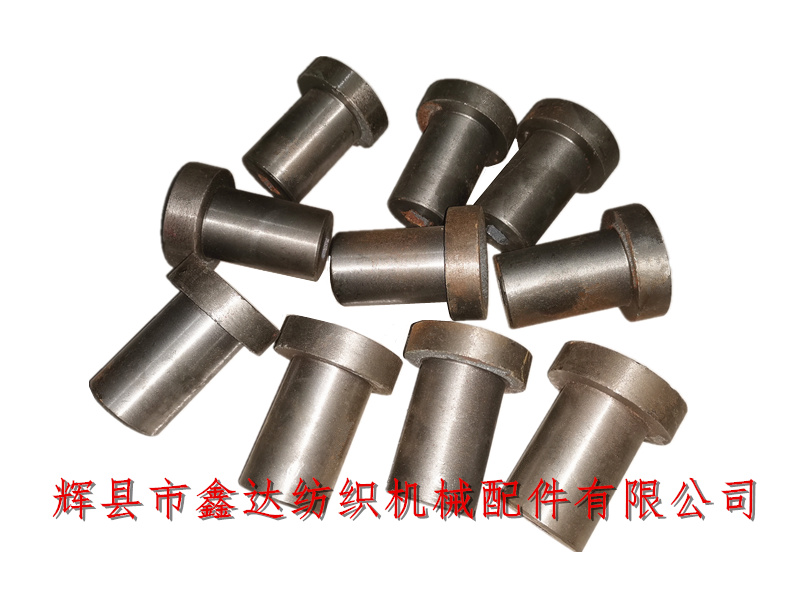

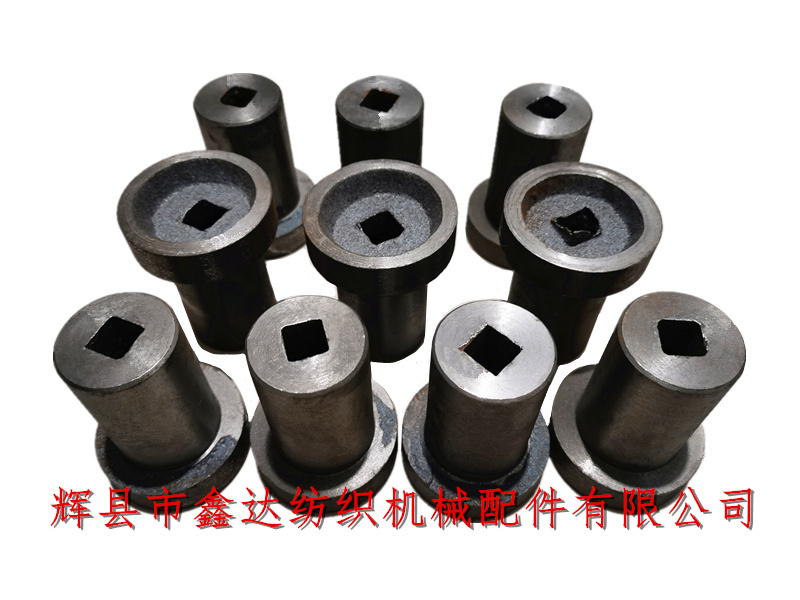

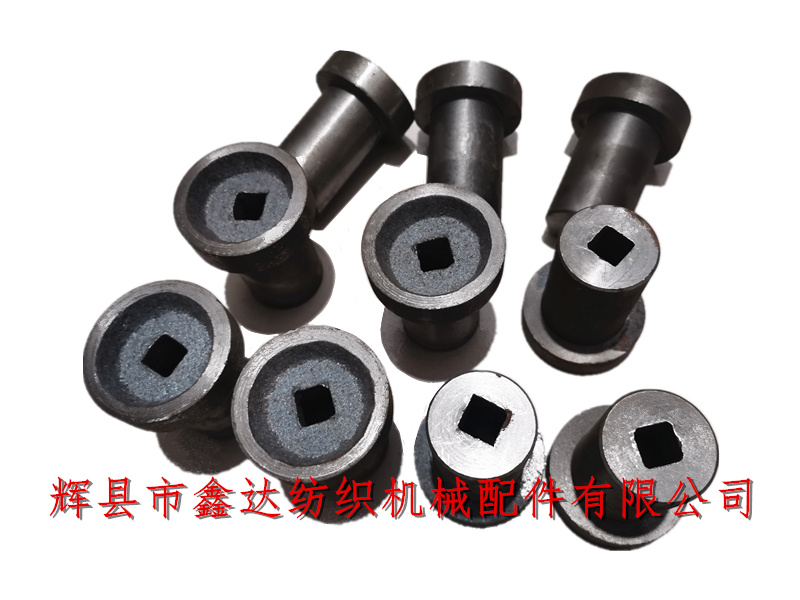

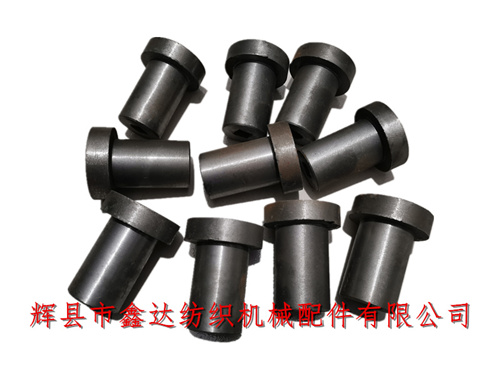

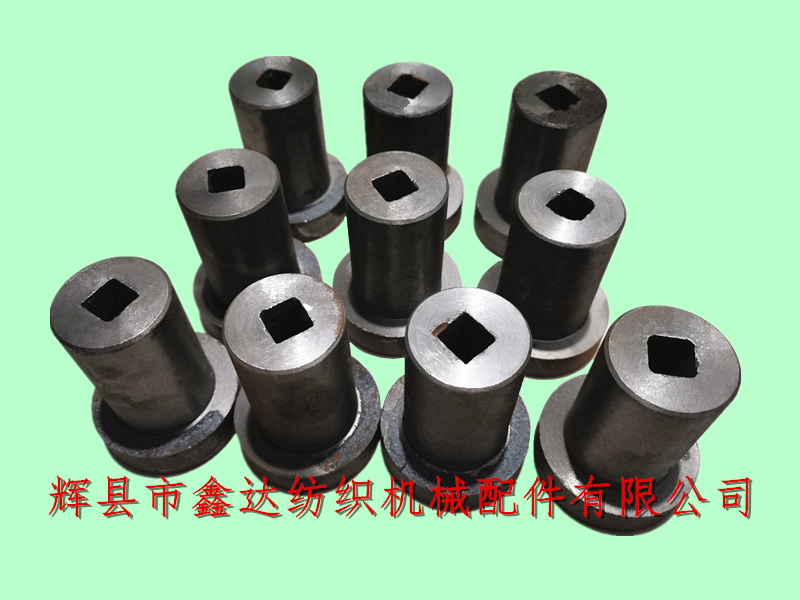

Xinda Textile Machinery Accessories Co., Ltd. provides F1 side plate cap sleeve, a domestic shuttle loom accessory throwing machine part. The side plate cap sleeve F1 is used to fix F2 or F119 (F120) side plate cap. Each shuttle loom uses 2, which are respectively installed at the rear and lower of the outside of the loom wall panel. It belongs to the shuttle throwing machine part. Its overall dimensions are: the total height is 72.5mm, the bottom diameter is 56mm, the upper diameter is 38mm, and the length of the middle square hole is 13mm.
The shuttle fitting-F1 side plate cap sleeve is fixed on the hanging feet of F6 or F7 side plates. During installation, use the rear setting gauge to determine the height of the hanging feet of F6 and F7 side plates, and the distance between the hanging feet and the wall plate feet of the loom is 110mm.Side Plate Cap,Loom Sleeve,Loom Parts, The upper stop of the hanging foot is close to the inner edge of the wallboard, and the lower stop is close to the edge of the wallboard.
Textile accessories and shuttling machine parts F1 of shuttle loom are applicable to domestic loom equipment with various models and door widths such as 1511, GA615, 1515 (a), 1515k and g1515. Textile machinery accessories - shuttling device parts are common vulnerable parts, which need to be inspected regularly, found problems and repaired on time.
The material of domestic loom accessories - side plate cap sleeve is pig iron HT15-33. The whole loom accessories are finished after being processed in the original vehicle. Its upper end is installed close to the side plate hanging foot, and the height of the bottom step is 15mm. The packaging method: 10 pieces per string, and the weight of each string is about 4kg.
Our company provides Shanghai China Textile machinery equipment accessories, Shandong loom accessories, Henan Zheng textile machinery accessories and other products. There are about 1200 kinds of products (including side plate cap, loom accessories, shuttle throwing machine parts and shuttle accessories). Some shuttle loom accessories have the same specifications, different materials, the same model and different designs. We have long adhered to good faith management, stabilized product quality, improved loom accessories Service and met the quality requirements of Chinese and foreign merchants.
