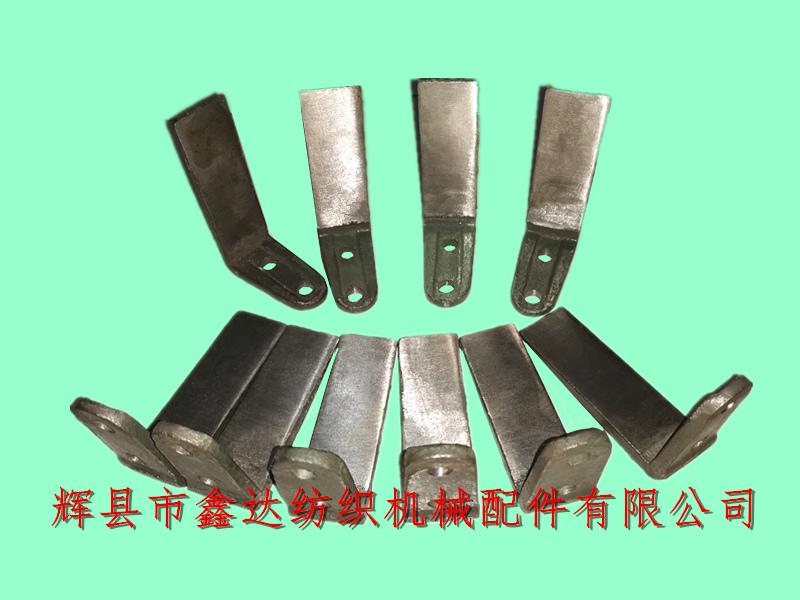

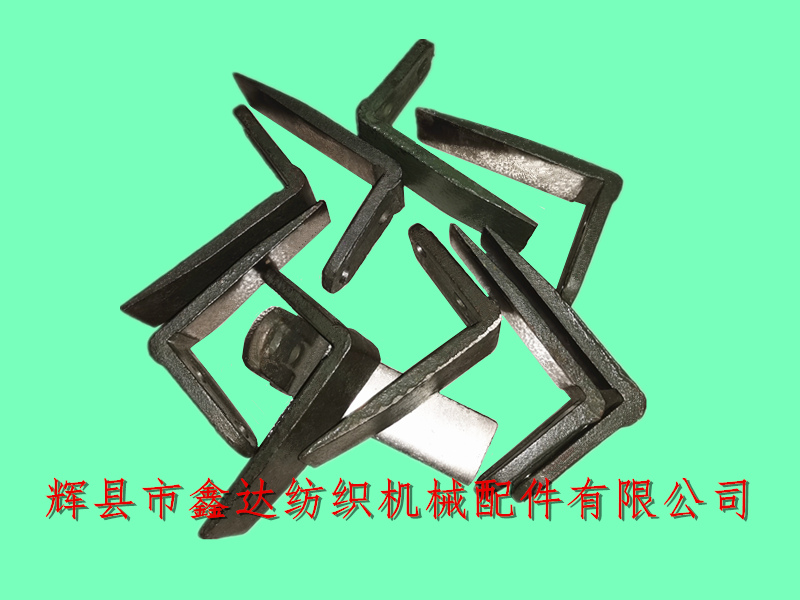

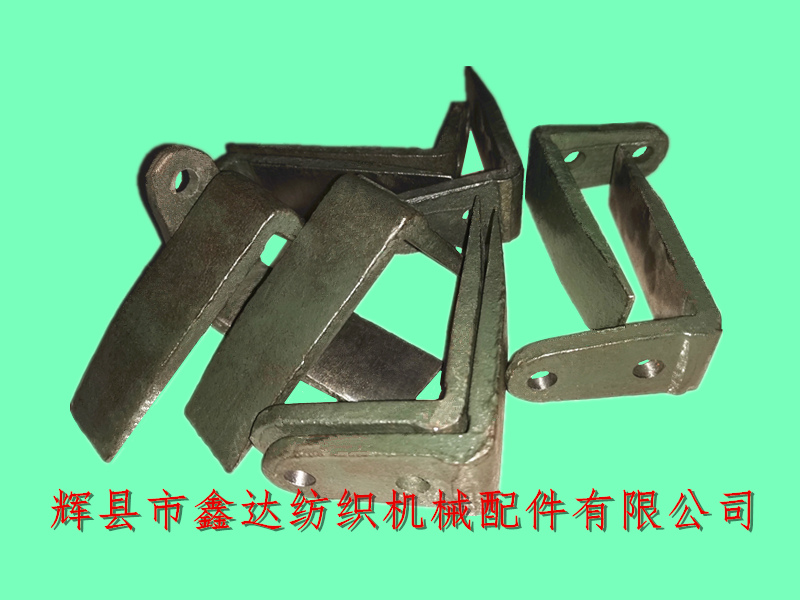

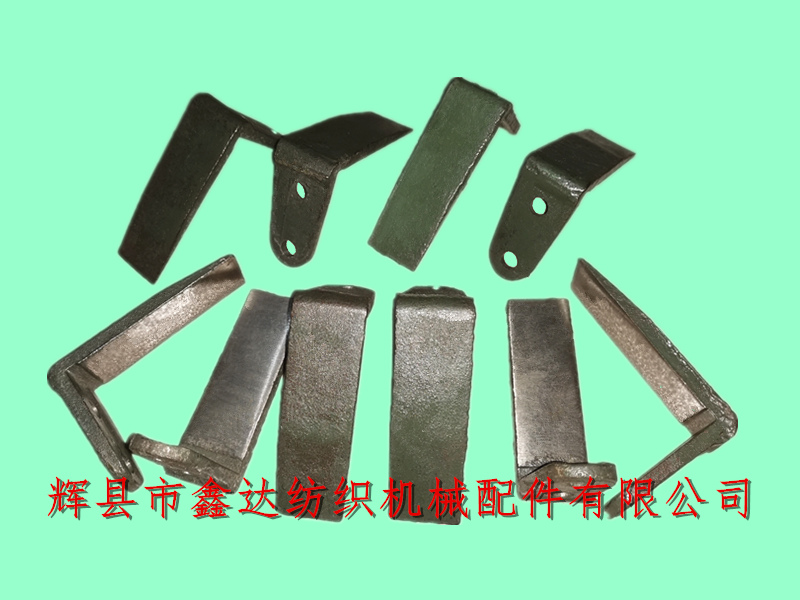

Our company provides 1511/1515 Loom N16 Shuttle Magasine Leg all year round. N series components belong to loom automatic shuttle change and shuttle change safety accessories. The total length of N16 shuttle feet (outer side) is 102 mm, the width is 32mm (bending position), the height is 65 mm, the thickness of the smooth surface (middle position) is 7.5mm, and the diameter of the two round holes on the side is the same, which is φ 9.5 mm.
The included angle between the shed foot (N16xN17) and the front of the shed (N5) is 93.5 °, and the fitting tolerance is ± 0.1mm (check with a fixed gauge). Use a ruler to correct the two feet on a straight line, and the error shall not exceed 0.05mm. The crank shaft is at the front dead center position, and the distance from the shuttle box bottom plate (K15 or 3308) is (1.6+0.1) mm. The length of the shuttle magazine foot is good if it can hold the shuttle to reach the front brake rail without turning over. N16 shuttle feet (outside) are applicable to shuttle looms of 1511, 1515, GA615 and other models, and are general accessories of looms.
Huixian Xinda Textile Machinery Accessories Co., Ltd. is a 1511 textile accessories manufacturer and 1515 textile equipment wholesale supplier. It provides GA615 loom accessories, textile machinery accessories processing, and sells all kinds of shuttle textile accessories, dobby faucet accessories, shuttle loom parts, textile machinery equipment, textile hardware tools, textile porcelain parts, polymer accessories, shuttle special textile equipment, textile leather parts, 1515 wood equipment Plastic bobbin and other products.
The material of the hangar foot N16 is pig iron HT15-33, and the bottom slope is polished. The weight of a single N16 is 0.18 kg, and the package is 20 pcs in each string. It is used in connection with the front of N15 hangar, regardless of left and right hands. The number of looms used is 1, which is installed on the right side of N15 in the front of the hangar.
If you need to purchase 1511/1515 looms, 1511 automatic shuttle changing accessories, 1515 shuttle feet,1511/1515 Loom N16 Shuttle Magasine Leg, GA615 loom accessories and other products, please contact Mr. Yang of our company!
