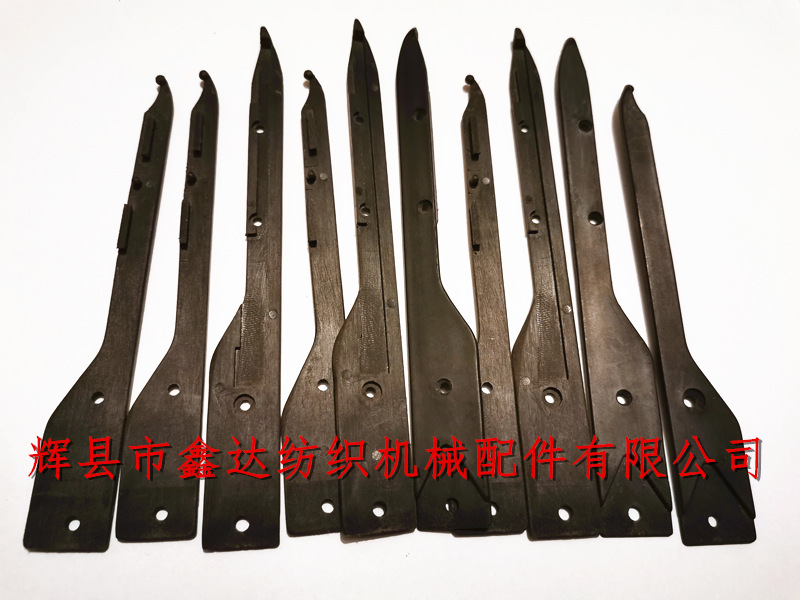

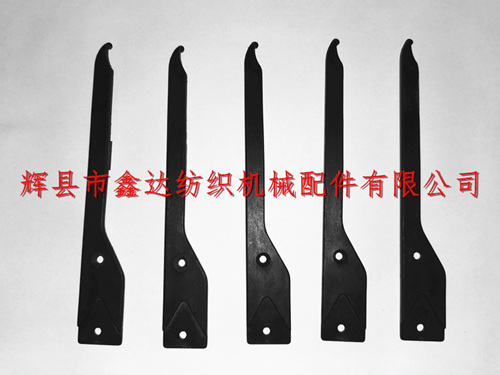

Sm93 base plate is the sword head accessory of the rapier machine. It is divided into long base plate and short base plate. Color: black. Size of textile sm93 long base plate: 127.5mm, width: 15.3mm, thickness: 2.4mm, with four screw fixing holes. Parameters of sm93 short base plate: total length: 111mm, width: 15.6mm, thickness: 2.4mm, with two fixing holes. The textile bottom plate is installed under the weft receiving and weft delivering rapier head of the sm93 loom.

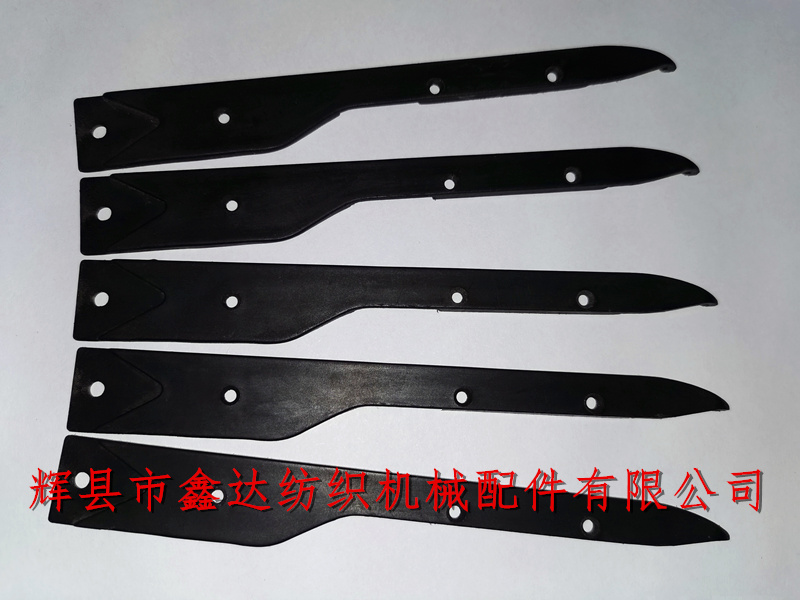

The above figure shows the long bottom plate of sm93. The hole at the left oblique point is used to fix the sword belt, and the other three holes are fixed on the sword shell.

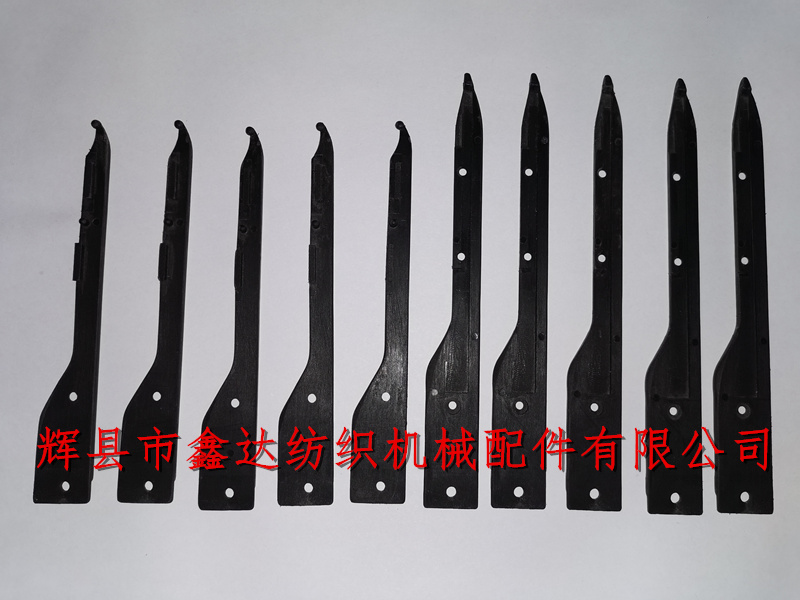

Rapier accessories - the bottom plate of the rapier head is made of carbon fiber composite material, which has the characteristics of wear resistance, high temperature resistance and light weight. The above figure is the back view of each long and short base plate.

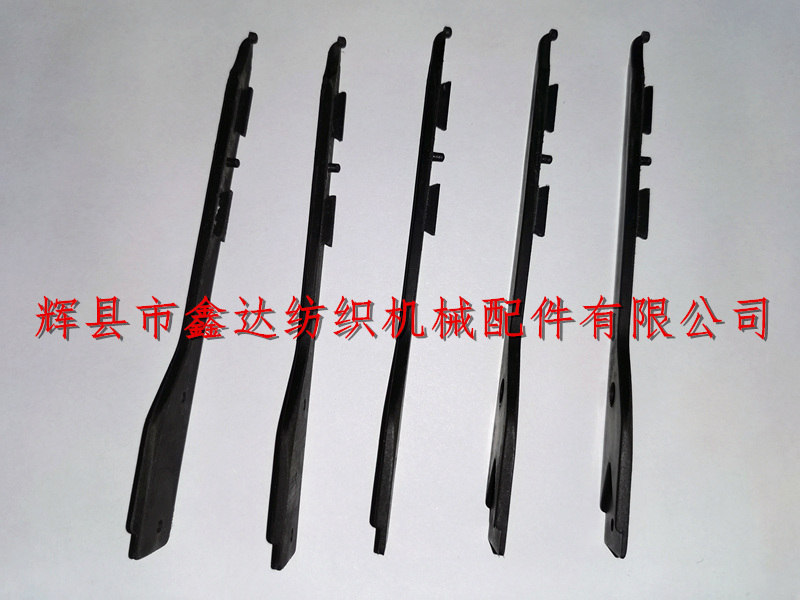

Above is a side view of the short base plate of the sm93 loom. There are two raised dovetail slots and a positioning post on the back of the base plate.

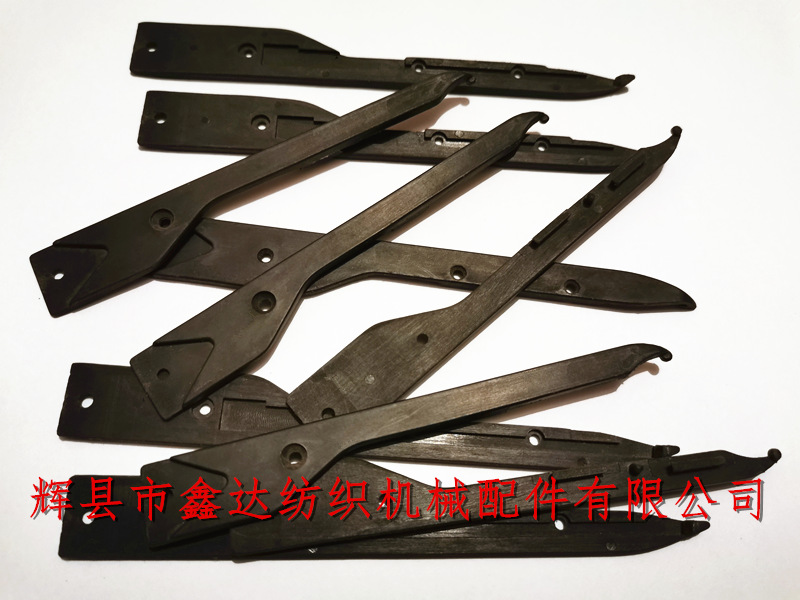

Textile carbon fiber accessories are widely used in weaving machine, including sword belt, sword shell and other products.

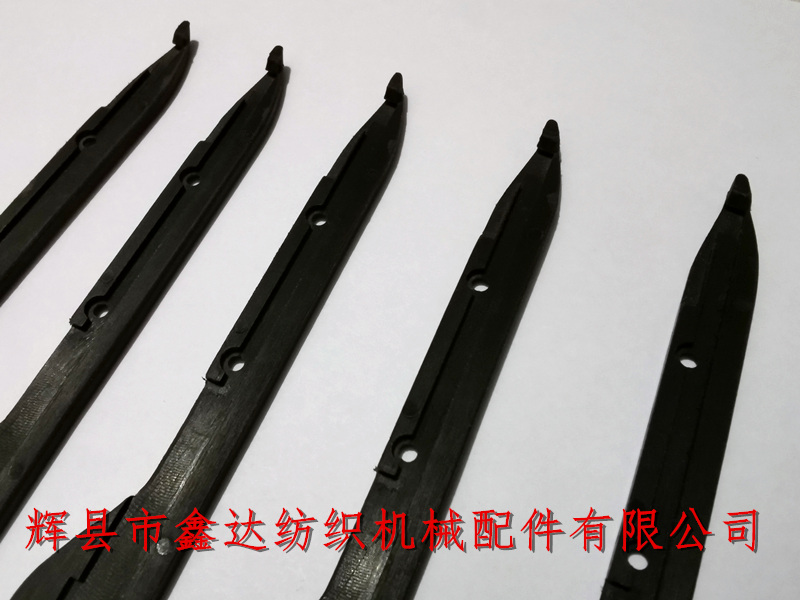

The back image of the long base plate is as above. Our company provides all kinds of customized processing business for textile accessories, including casting mold opening, injection mold opening and so on.
If you want to buy sm93 base plate, sword head accessories, rapier machine accessories and other series products, you can contact our company for detailed quotation, and we sincerely welcome you!
