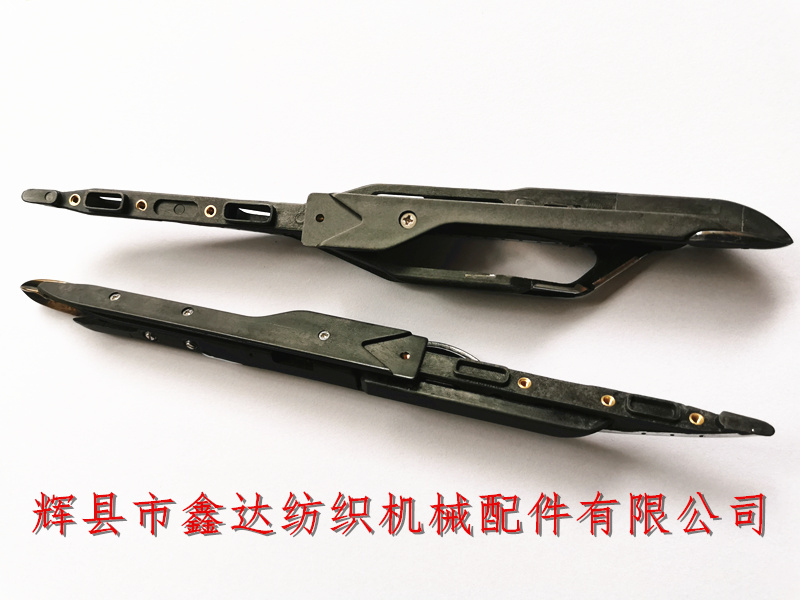

Huixian Xinda Textile accessories provides sm93 rapier head shumeite rapier machine accessories. Textile rapier head and rapier belt (substitute) accessories are vulnerable parts of rapier machine parts because they move continuously at high speed on the rapier machine. Good quality can prolong the service life of the sword head and sword belt. The outer packaging of sm93 sword head is rectangular plastic box, 1 pair in each box, i.e. weft feeding sword head and weft connecting sword One for each head.

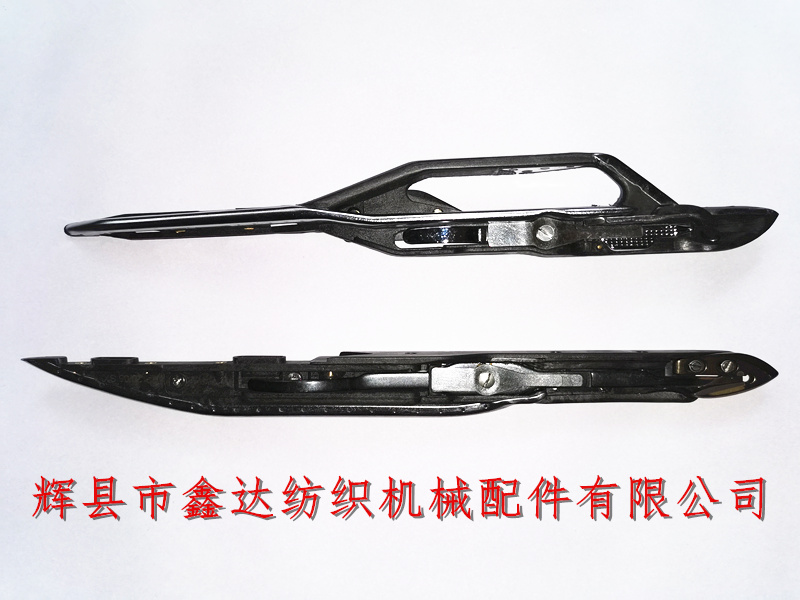

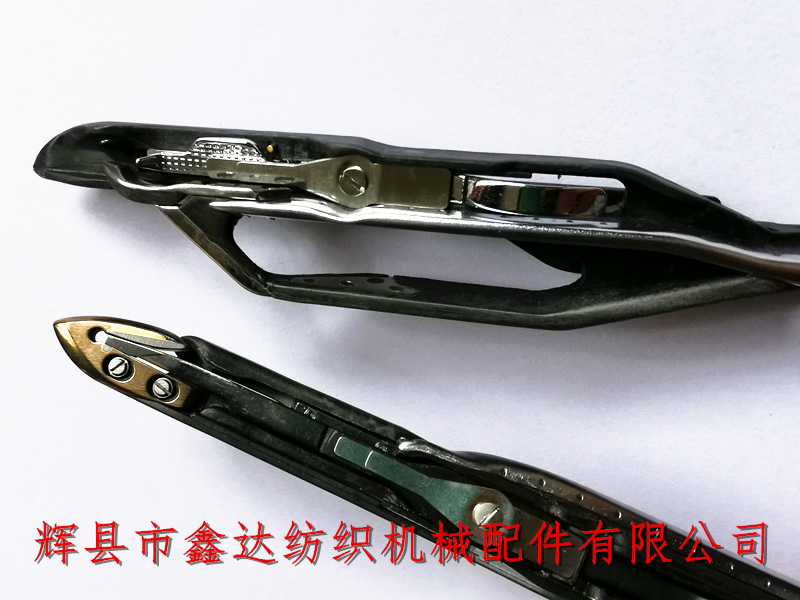

Sm93 pick-up rapier head is composed of hook head, yarn clamping bar, spring leaf, weft connecting rapier shell, bottom plate and other accessories; weft feeding rapier head is composed of weft feeding rapier shell, pressing plate, bottom plate and other accessories. Each rapier machine uses one pair of rapier head, i.e. one weft feeding sword and one weft connecting sword. They carry out telescopic movement together with the track arranged by the guide rapier hook of rapier loom, and the power source is provided by the rapier wheel.

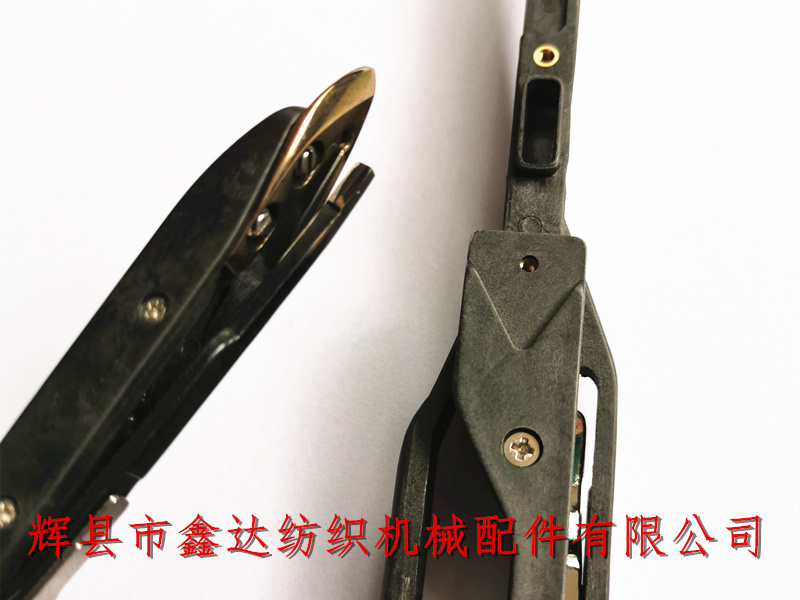

The figure above shows the opening state of the yarn clamping rod of the weft connecting rapier head on the left, and the picture of the bottom plate of the weft feeding rapier on the right. The V-shaped groove in front of the bottom plate is used to fix the rapier belt of sm93 rapier.

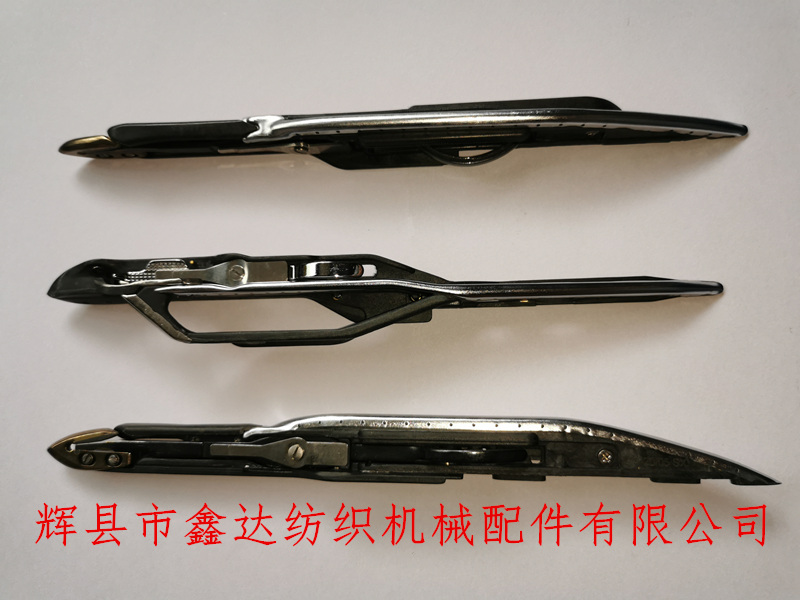

In the above figure, the head and weft of the rapier head are designed as a whole, and the top one is made of carbon fiber.
Textile accessories - sm93 sword head of schumet rapier machine has anti-counterfeiting laser code. Please confirm whether it is genuine before use.
Sm93 sword head shumeite rapier machine accessories are widely used in China. If you need to purchase sm93 sword head, shumeite sword head products, please contact our company for consultation. Our company strictly guarantees the product quality, and the minimum order quantity is more than 10. Welcome to discuss and cooperate!
