Huixian Xinda Textile Machinery Accessories Co., Ltd. provides all kinds of shuttle loom shuttles (nylon shuttle, composite shuttle and wood shuttle) and accessories. There are hundreds of types of loom shuttles. Different designs of Chinese and foreign looms determine that there are differences in the shape and size of shuttles, and there are many types of shuttle accessories. Shuttles can be divided into nylon shuttle, wood shuttle and composite shuttle according to material technology. Relatively speaking, There are more kinds of wooden shuttle than nylon shuttle. The main models are J211, K251, 1511, 1515, K72, GA615, G263, 1515K and G611.

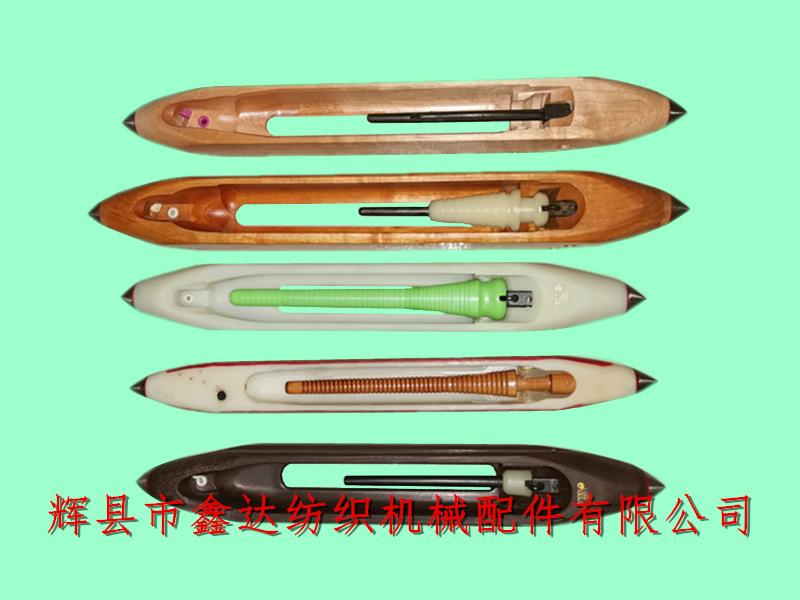

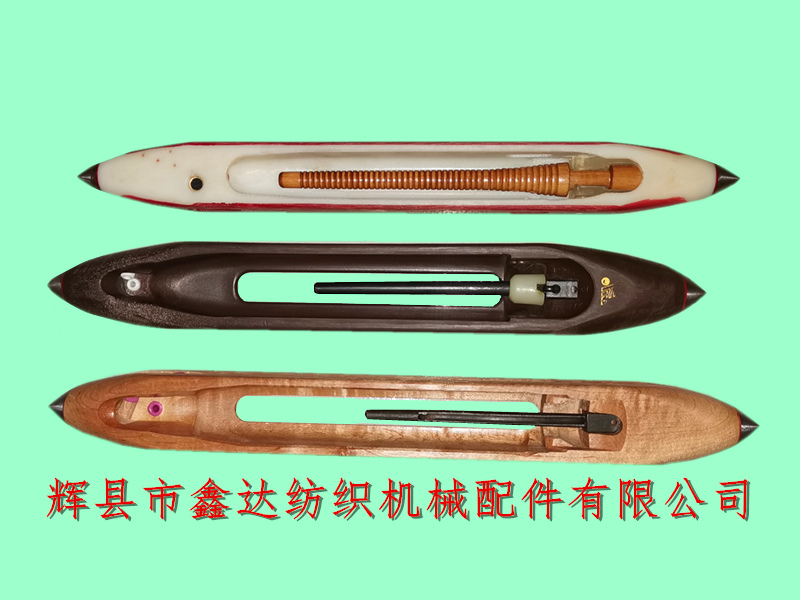

From top to bottom, the above figure is: Silk Loom composite nylon shuttle (length 35 cm, bottom width 35 mm, height 25 mm), cotton loom nylon shuttle (length 34.3 cm, bottom width 46 mm, height 36 mm), anti weft shrinkage three porcelain eye wood shuttle (length 37 cm, bottom width 41 mm, height 31 mm).

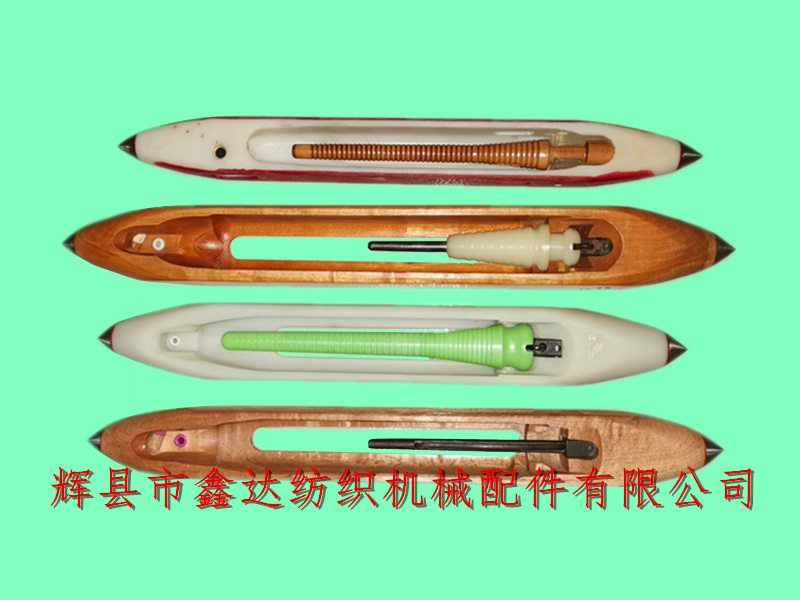

The dimensions of the white nylon shuttle in the figure above are: length 34.3mm, bottom width 45mm and height 34mm; The size of the yellow wooden shuttle below is: length: 39 cm, shuttle bottom width: 45.5 mm, height: 36 mm. They all belong to the anti weft shrinkage shuttle. The white shuttle has two porcelain eyes and the yellow wooden shuttle has three porcelain eyes. The weft tubes inside the shuttle cavity are their corresponding specifications, and there are dozens of types of weft tubes, which are mainly designed according to the weft thickness, weft strength, weft elasticity and so on.
Nylon shuttle has become the mainstream product in the current market. Wood shuttle is mainly used for the production of special kinds of fabrics. It is a niche shuttle product. Usually, it is professionally customized according to customers' samples or required specifications. The use scene is usually in backward countries in Southeast Asia, Nylon Shuttle Composite And Wood Shuttle.

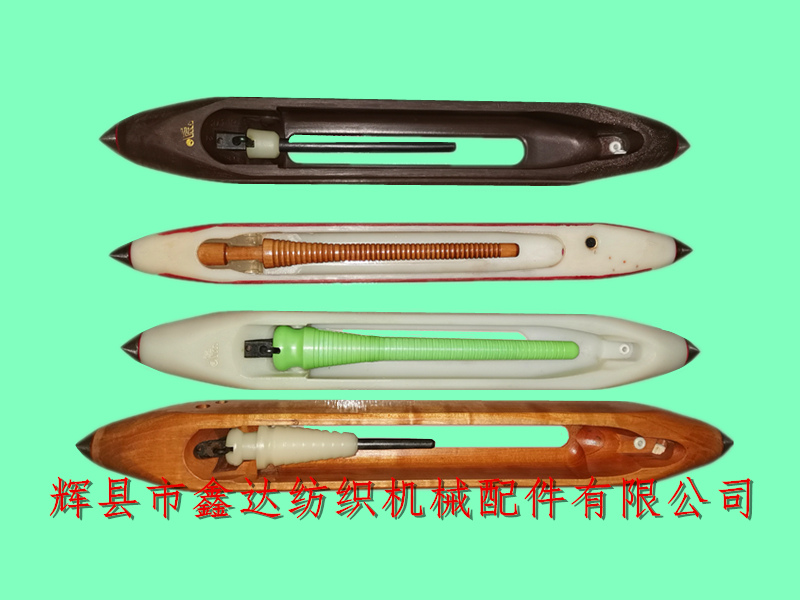

The composite shuttle in the figure above is applied to K251, k611 and K72 silk looms. A layer of cloth is compounded on both sides, which not only increases the wear resistance, but also reduces the static electricity generated during shuttle movement, so as to ensure uniform warp tension on the loom and reduce hairiness. The loom shuttle is packed in cartons, 50 pieces / box, weighing between 15-20kg (according to the shuttle size and self weight). Our company provides a full range of customized wooden shuttle services, including hundreds of products, such as ribbon loom wooden shuttle, sack machine wooden shuttle, wool loom wooden shuttle, cotton loom wooden shuttle, towel wooden shuttle and so on.
