Huixian Xinda Textile Machinery Accessories Co., Ltd. provides all kinds of stainless steel reed equipment accessories for Projectile Loom all year round. The reed teeth (pieces) of shuttle reeds are divided into carbon steel and stainless steel (non stainless iron) according to materials. Projectile Loom reeds,Stainless Steel Reed, They are a kind of textile reeds. Stainless steel reeds have good rust prevention function, and carbon steel reeds have good toughness. They have their own advantages and disadvantages. The thickness of Sulzer piece shuttle reed is 8mm, the height is 4 inches (10.16 cm), and the length depends on the door width of the Projectile Loom machine. The piece shuttle reed is a non shuttle textile accessory product, which is widely used in Sulzer Projectile Looms made in Switzerland.

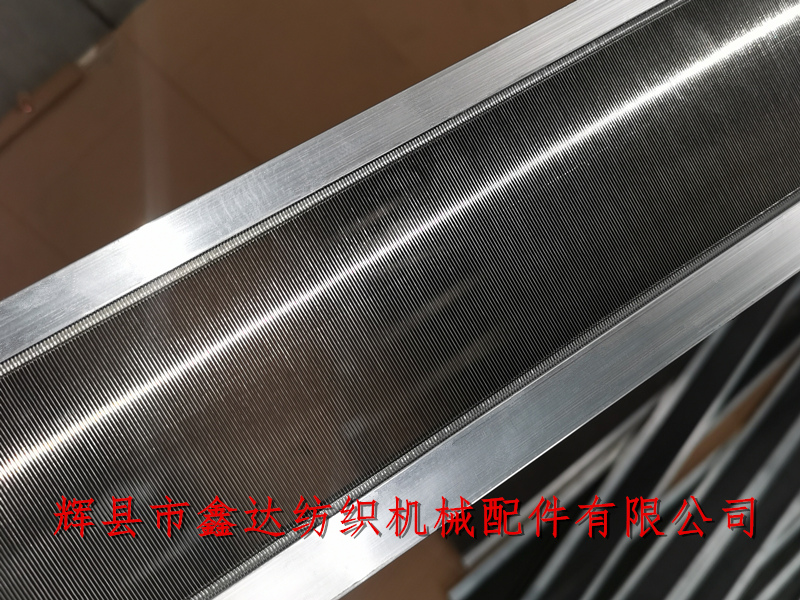

The sley width of stainless steel sley is 3.8mm. Aluminum alloy U-shaped wrapping strips are used as the upper and lower beams on both sides, and steel wires are used as the skeleton. It is made of iron wires of different thicknesses. The appearance of carbon steel sley is black or dark blue, and the appearance of stainless steel sley is silver white, smooth and shiny.

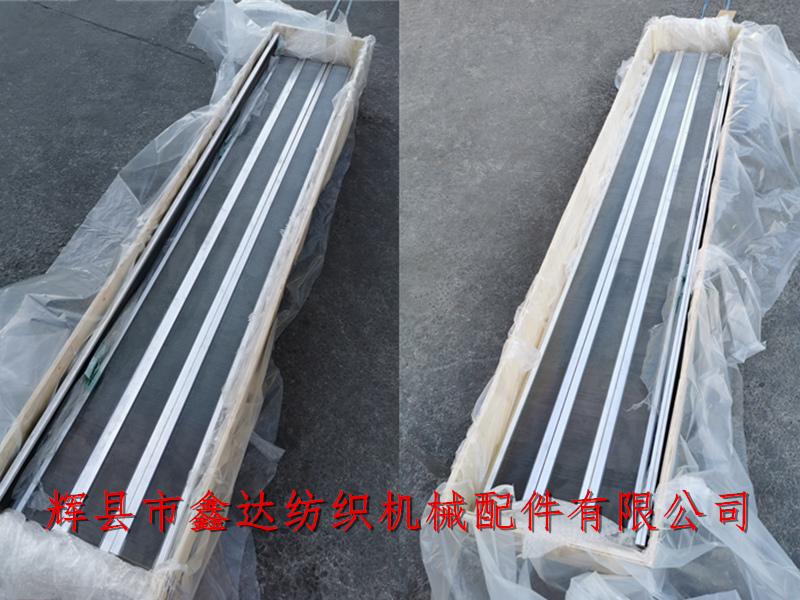

Each shuttle loom uses one reed. Because the frame of the shuttle loom is heavy and the fabric it weaves is wide, reed teeth with a width of 3.8mm are used to enhance the toughness and firmness of the reed, while ordinary shuttle looms of 1511 and 1515 use reed teeth with a width of 2.7mm. The reed of the shuttle loom is made of stainless steel. When the accessories of the shuttle are exported, 100 pieces are usually packed in a wooden box.

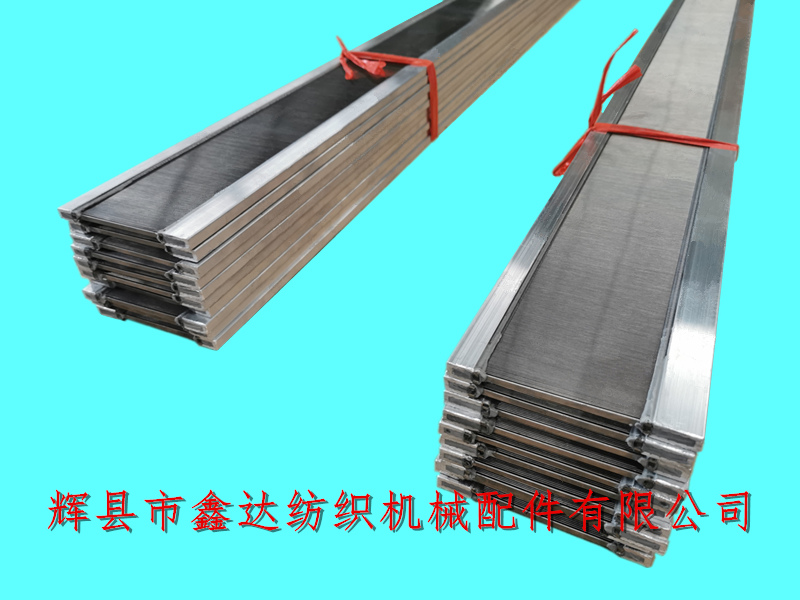

PU Projectile machine steel buckle, P7100 Projectile machine reed and TW-11 Projectile Loom reed mainly have 153 inch and 130 inch specifications. Projectile machine reed belongs to the equipment accessories of shuttleless loom, with 10 pieces per bundle, and the minimum order quantity: 10 pieces of the same specification density.
About weight: about 1.75kg per meter (made of stainless steel). The specific weight is affected by the reed density. The larger the reed number is, the greater the density is, and the weight of the reed is also increased. The width of the aluminum alloy wide edging is 1.8 cm, and the reed piece of the reed body is stuck in the groove.
If textile manufacturers need to order reed products of Swiss Sulzer projectile loom, please contact Mr. Yang of our company for details. We have long adhered to the business philosophy of "honest management, pragmatic and enterprising" and wholeheartedly provide rich products and services for Chinese and foreign customers. Customers from all over the world are welcome to consult textile reed, stainless steel projectile reed, projectile loom accessories, P7100 projectile accessories!
