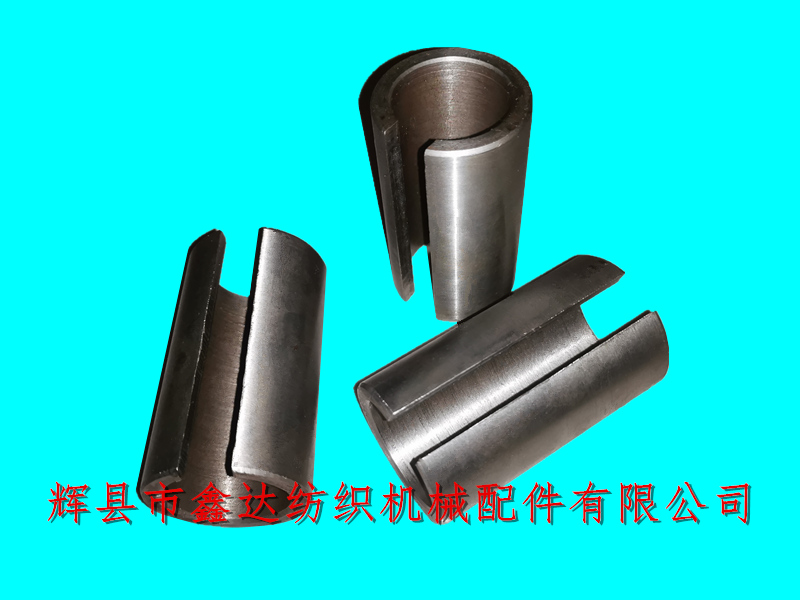

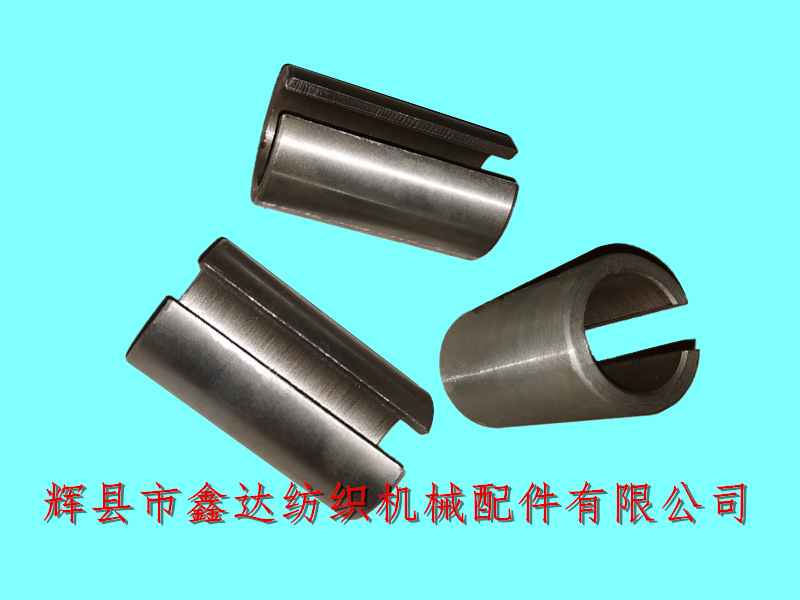

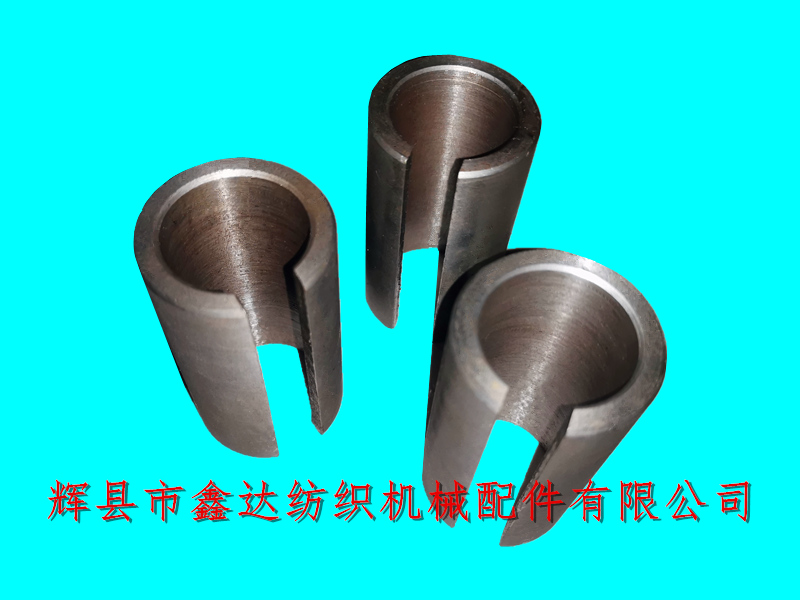

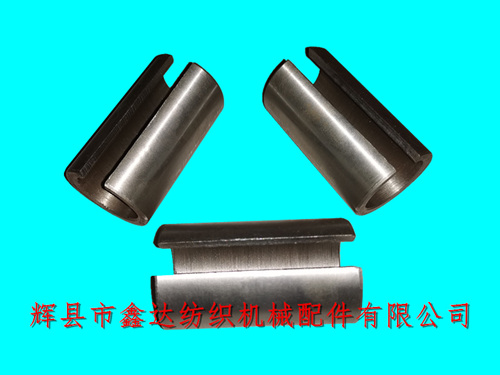

Huixian Xinda Textile Machinery Accessories Co., Ltd. provides an open sleeve (slotted sleeve) for the gear bushing E2 of the loom tread shaft (middle shaft). Because the diameter of the tread shaft of foreign looms is 31mm, which is different from the 42mm diameter used in China, it needs to be simply refitted. The bushing for the tread shaft gear is an open sleeve, with a length of 74mm, an inner hole diameter of 31mm, an outer diameter of 42mm, and an open groove width of 12mm, Equal to the width of the keyway they use.
The opening sleeve is made of 45 # steel material by grooving, and the outer surface is polished. Each loom uses one, which is embedded between the inner hole of the gear and the tread plate shaft. The size of domestic machine accessories is generally based on the metric system, which is usually an even number, while foreign ones use the British unit inch for design, which is quite different.
The treadle shaft gear used in 1511 and 1515 looms is the same, which is usually installed outside the switch side wall panel. The design principles of shuttle looms at home and abroad are basically the same, and the design of some parts will be changed appropriately, which is affected by the differences in thinking mode and operation habits! The application scenarios of the split sleeve for E2 gear bushing of the loom tread plate shaft (middle shaft) are relatively limited.
The minimum order quantity of the gear bushing is 10, and the processing cycle is 3 days. If you need to purchase shuttle textile accessories, 1515 treadmill shaft gears, split sleeves, textile bushings and other products, please contact Mr. Yang of our company for details!
